FTP Sensor Replacement

  1. Raise the vehicle on a lift.
  2. Remove the EVAP canister cover (see step  2 ).
  3. Disconnect the FTP sensor 3P connector (A).

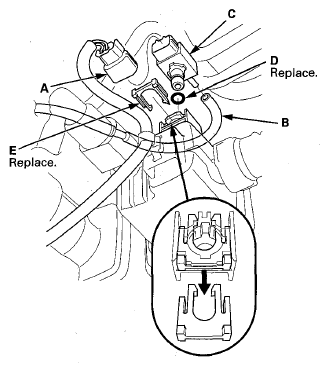

    Fig 1: Identifying FTP Sensor 3P Connector, Hose, O-Ring And Retainer
    G08075718Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the hose (B), and remove the FTP sensor (C).
  5. Install the parts in the reverse order of removal with a new O-ring (D) and a new retainer (E).
