CKP Pulse Plate Replacement

  1. Remove the crankshaft  from the engine block.
  2. Remove the CKP pulse plate (A) from the crankshaft.
    NOTE: Be careful not to damage the journals and the CKP pulse plate.

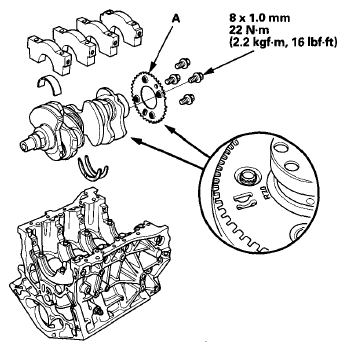

    Fig 1: CKP Pulse Plate With Mounting Bolts With Torque Specifications
    G08069160Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the CKP pulse plate in the reverse order of removal.
NOTE: When installing the crankshaft, refer to the crankshaft and piston installation  procedure.
