With SH-AWD

  1. Remove the trunk front trim panel (see TRIM REMOVAL/INSTALLATION - TRUNK AREA ).
  2. Remove the access panel (A) from the floor.

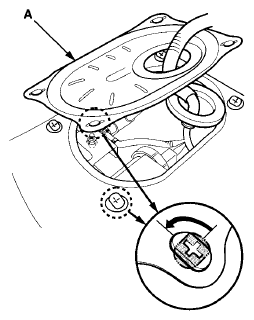

    Fig 1: Identifying Access Panel
    G08069943Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the EVAP canister vent shut valve 2P connector (A).

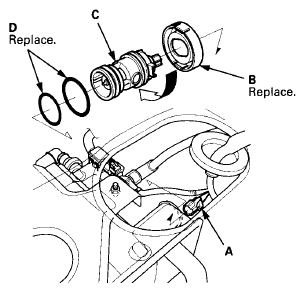

    Fig 2: Identifying 2P Connector, Cap, Shut Valve And O-Rings
    G08069944Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the cap (B).
  5. Remove the EVAP canister vent shut valve (C).
  6. Install the parts in the reverse order of removal with new O-rings (D) and a new cap.
