Accelerator Pedal Module Removal and Installation: Installation

Install the accelerator pedal pad (A) to the pedal stop (B). Slide the pad until it locks with a clicking sound.

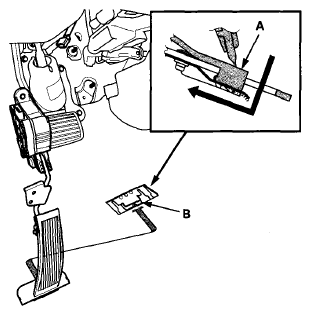

Fig 1: Identifying Pedal Pad And Stop
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new clip (A).
NOTE:
- The clip must be replaced whenever the accelerator pedal module is installed.
- Make sure that the accelerator pedal module and the clip are secure.

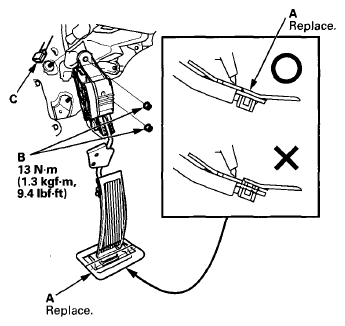

Fig 2: Clip, Nuts And APP Sensor 6P Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the nuts (B), and connect the APP sensor 6P connector (C).
