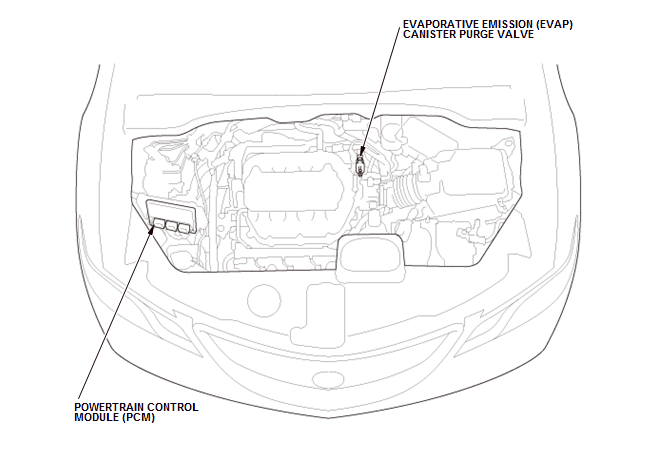

EVAP Control System Component Location Index (2013-18)
Courtesy of HONDA, U.S.A., INC.

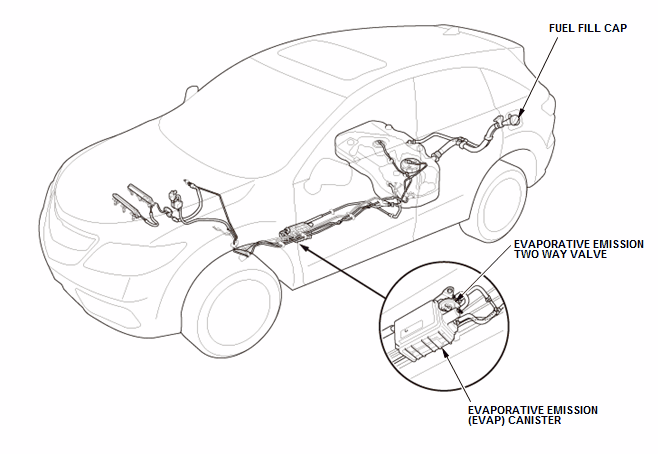

USA and Canada models
Courtesy of HONDA, U.S.A., INC.

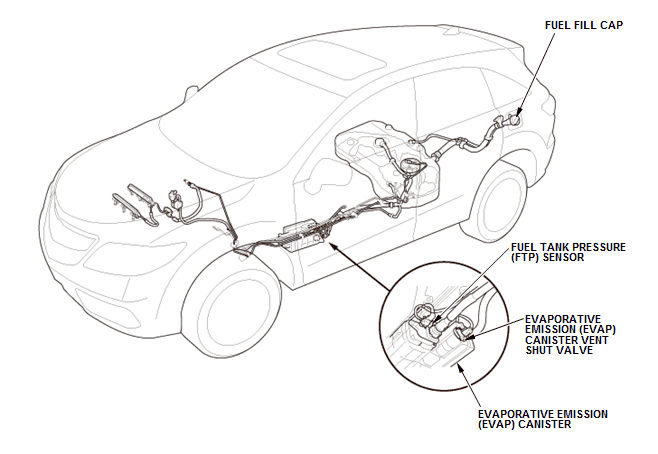

Mexico models
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
