Engine Block Assembly Component Location Index (2013-15)

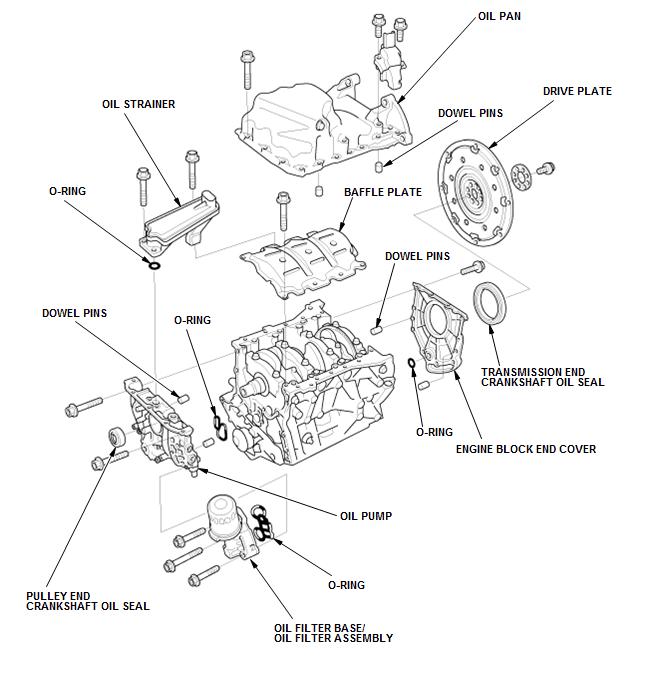

GHH72942Courtesy of HONDA, U.S.A., INC.

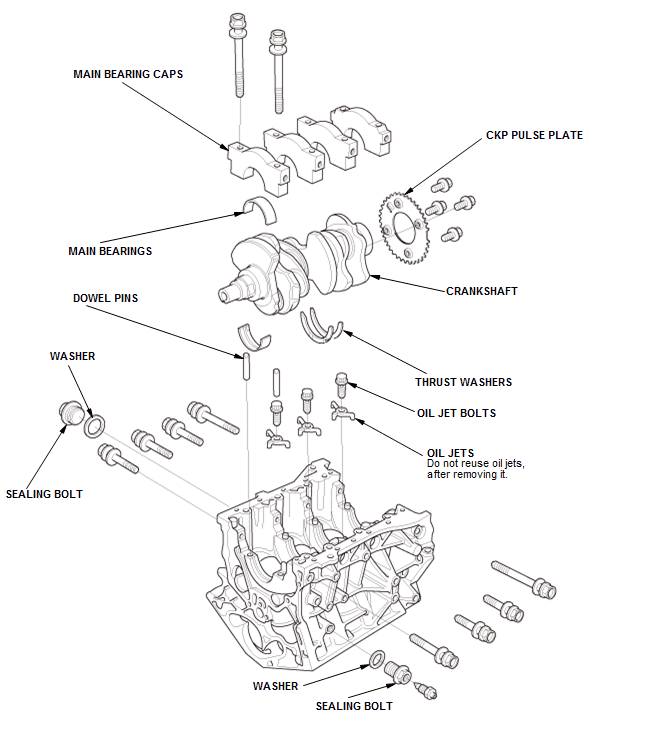

GHH72943Courtesy of HONDA, U.S.A., INC.

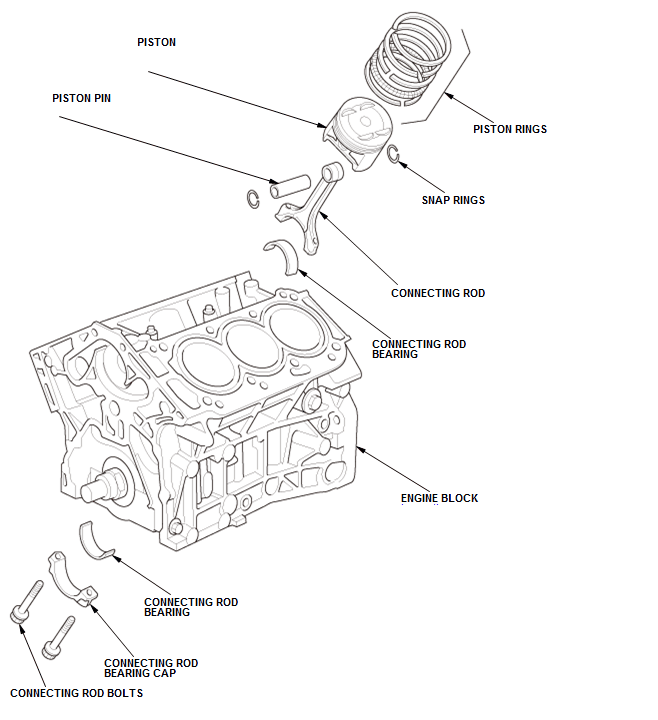

GHH72944Courtesy of HONDA, U.S.A., INC.
