Engine Compression Inspection (2016-18): Inspection

NOTE: After this inspection, you must reset the PCM. Otherwise, the PCM will continue to stop the injectors from operating.

Engine - Warm Up

1. Start the engine. Hold the engine speed at 3, 000 rpm with no load (in P or N) until the radiator fan comes on, then let it idle.

HDS DLC - Connect

NOTE: For specific operations, refer to the user's manual that came with the HDS. Make sure the HDS is loaded with the latest software.

1. Press the engine start/stop button to select the OFF mode.

2. Connect the HDS to the DLC - Refer to: How to Troubleshoot the Fuel and Emissions Systems (2016-18), or How to Troubleshoot the A/T System (2016-18) .

3. Press the engine start/stop button to select the ON mode.

4. Make sure the HDS communicates with the vehicle. If it does not communicate, go to the DLC circuit troubleshooting .

All INJECTOR STOP - Select

1. Select ALL INJECTORS STOP in the PGM-FI INSPECTION menu with the HDS

2. Press the engine start/stop button to select the OFF mode.

Ignition Coil and Spark Plug - Remove

Engine Compression - Inspect

Courtesy of HONDA, U.S.A., INC.

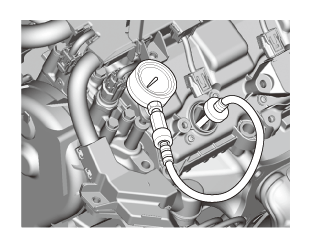

1. Attach a compression gauge to the spark plug hole

2. Step on the accelerator pedal to open the throttle fully, then crank the engine with the starter motor, and measure the compression.

Compression Pressure:

Above 930 kPa (9.48 kgf/cm ² , 134.8 psi)

3. Measure the compression on the remaining cylinders.

Maximum Variation:

Within 200 kPa (2.04 kgf/cm ² , 29.0 psi)

4. If the compression is not within specifications, perform a cylinder leak down test to determine the problem area. Then check the following items, and remeasure the compression:

Incorrect valve clearance
Confirmation of camshaft timing
Damaged or worn cam lobes
Damaged or worn valves and seats
Damaged cylinder head gasket
Damaged or worn piston rings
Damaged or worn piston and cylinder bore

5. Remove the compression gauge from the spark plug hole.

Ignition Coil and Spark Plug - Install

All INJECTOR STOP - Cancel

1. Select PCM reset - Refer to: How to Troubleshoot the Fuel and Emissions Systems (2016-18), or How to Troubleshoot the A/T System (2016-18) in the PGM-FI mode menu to cancel ALL INJECTORS STOP with the HDS.
