EVAP Control System (Premium.Technology)

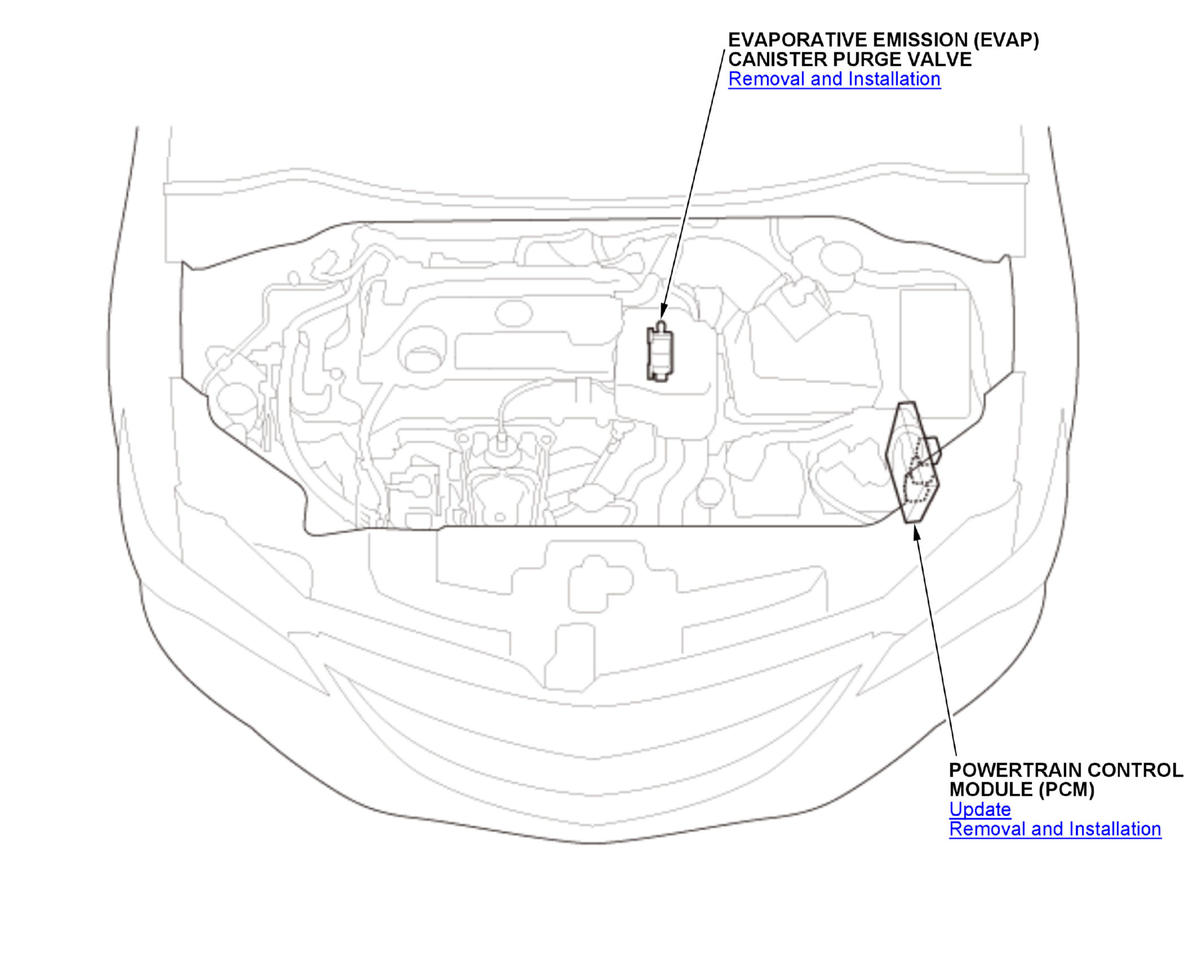

GHH468885Courtesy of HONDA, U.S.A., INC.

USA and Canada models

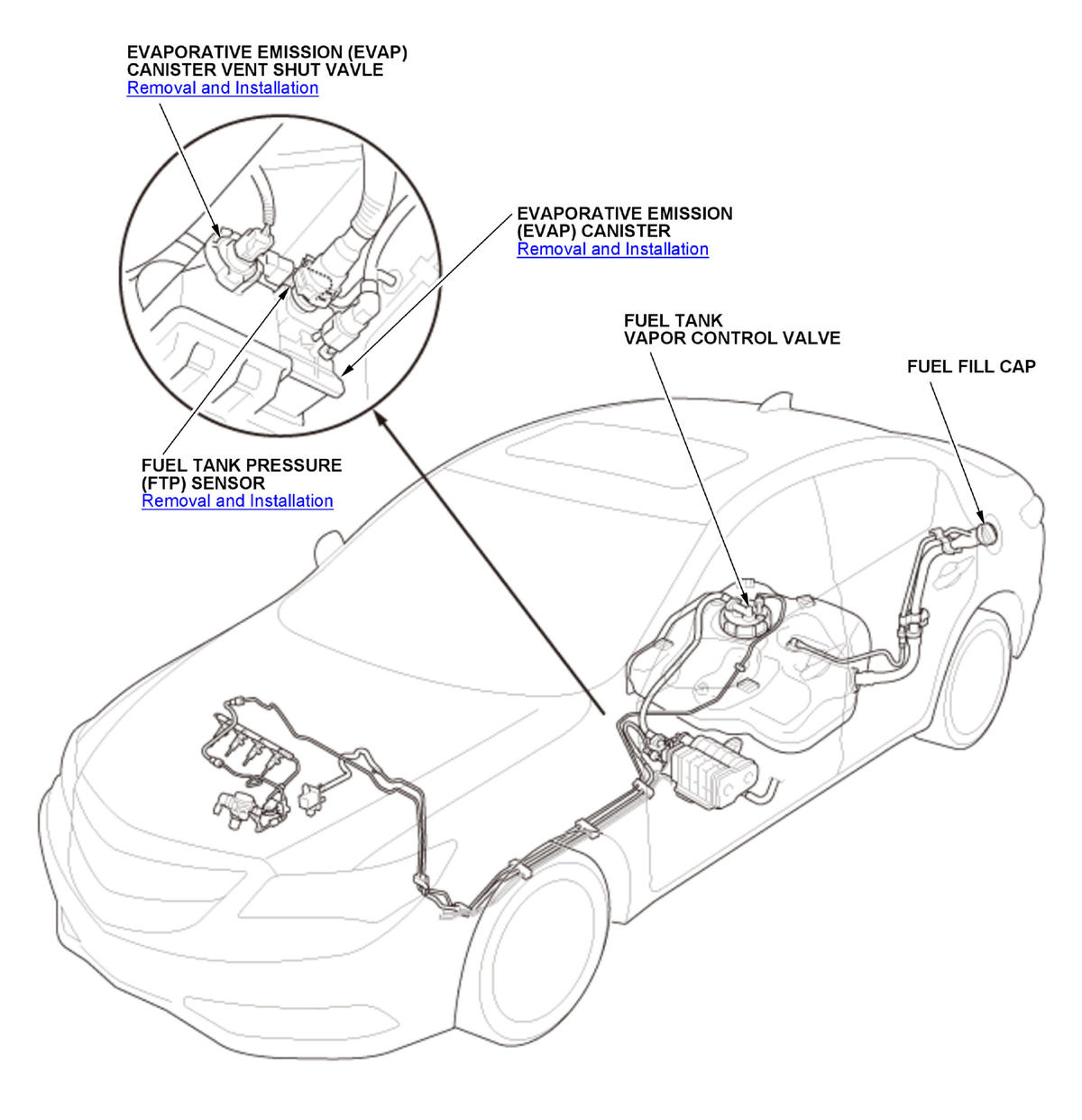

GHH468886Courtesy of HONDA, U.S.A., INC.

Mexico models

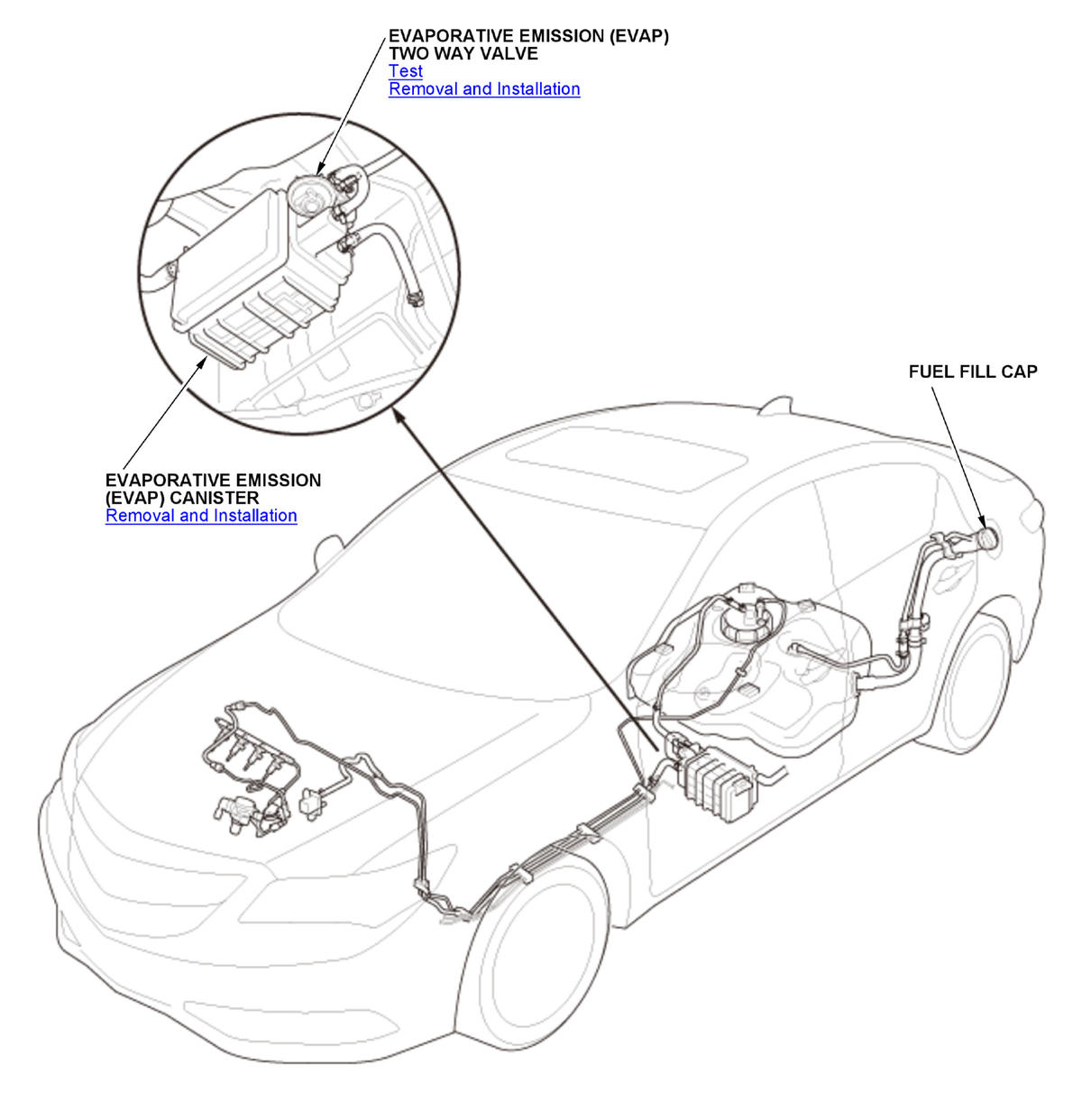

GHH468887Courtesy of HONDA, U.S.A., INC.
