Intake Air - Vacuum Hose Routing

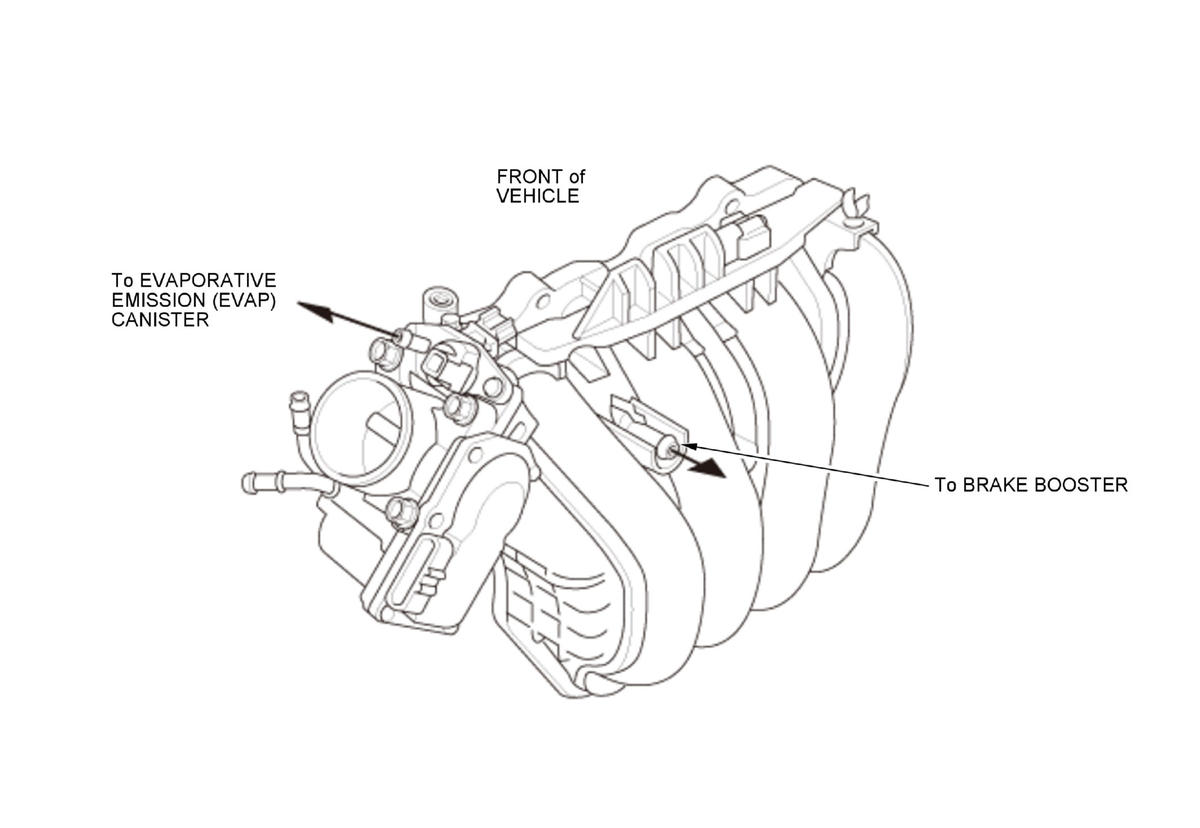

2.0 L models
Courtesy of HONDA, U.S.A., INC.

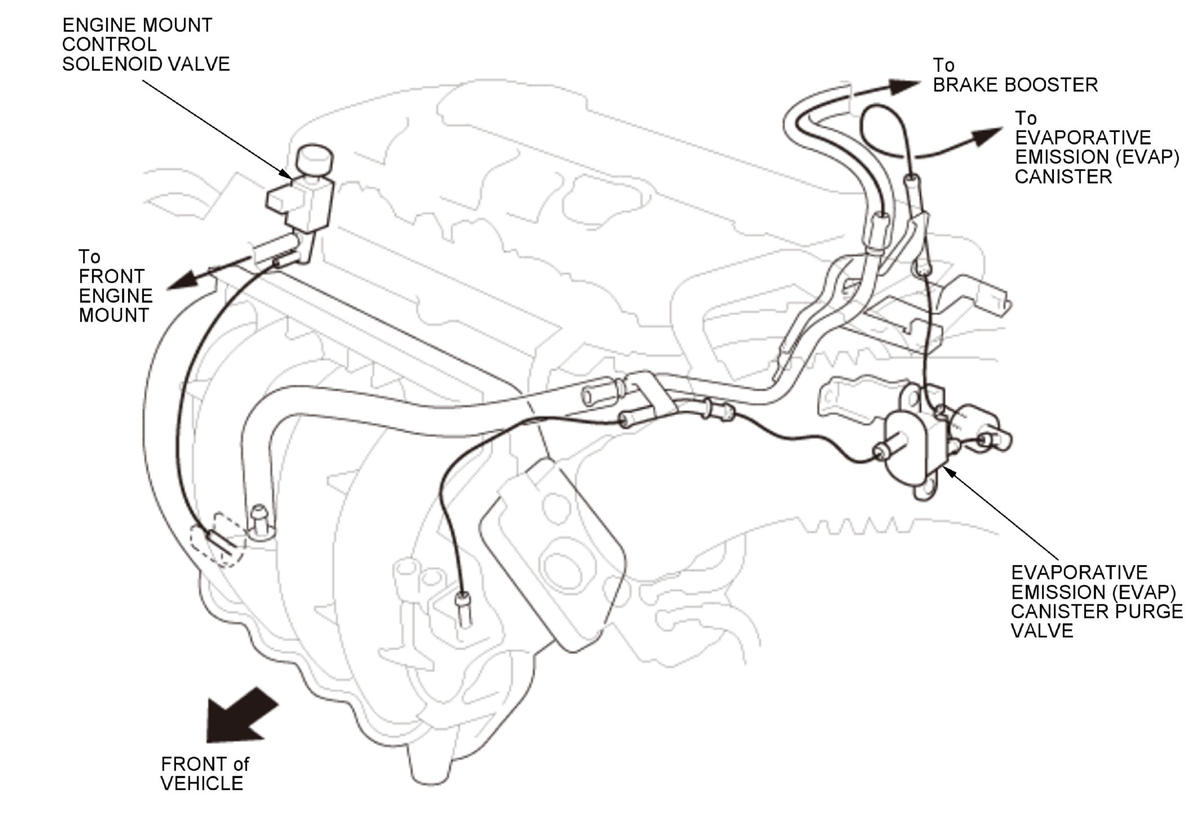

2.4 L models
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
