VTEC/VTC - Control(K24Z7/K24V7)

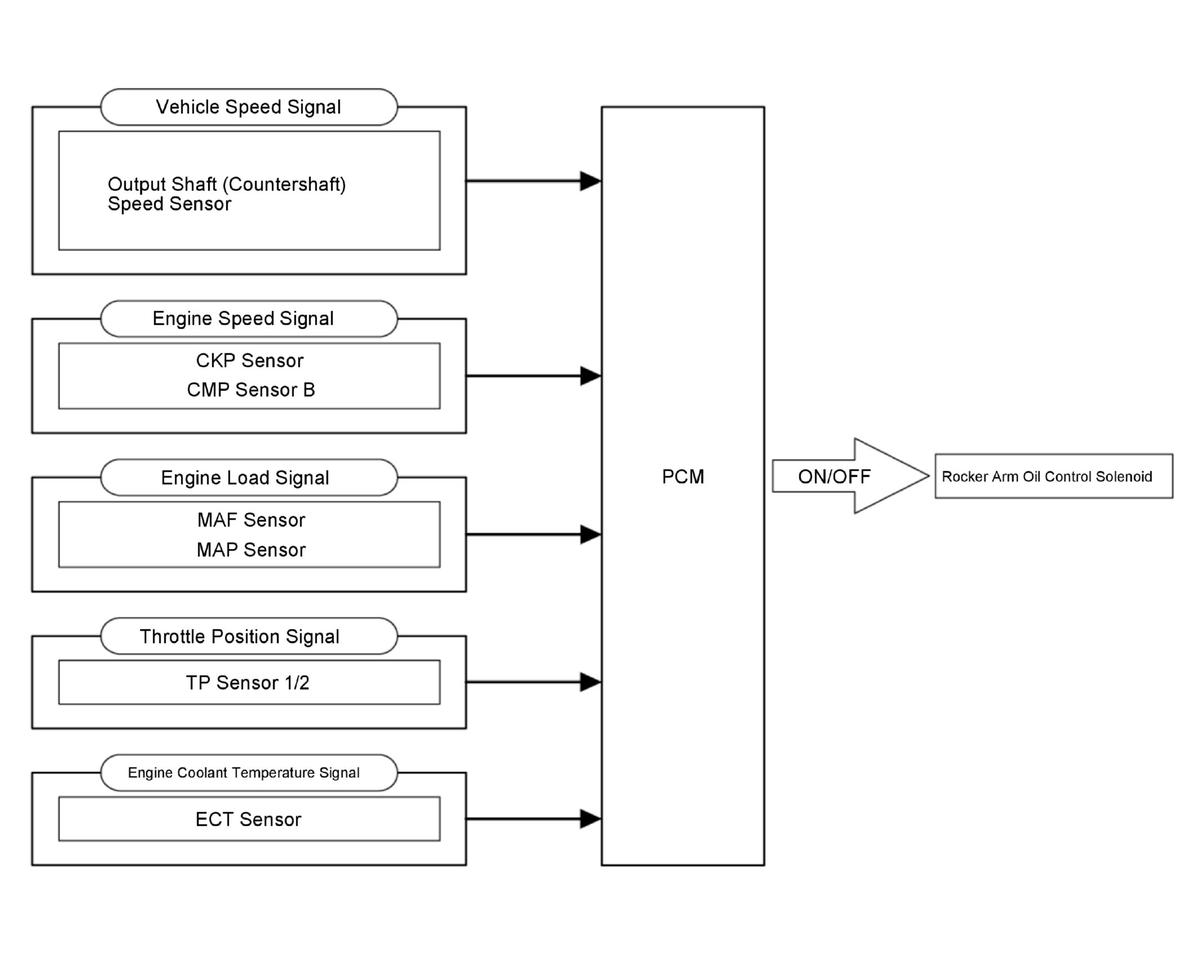

VTEC

Based on the vehicle speed signal, engine speed signal, engine load signal, throttle aperture signal, and engine coolant signal sent from various sensors, the PCM determines what the lift amount should be and controls the ON/OFF of the rocker arm oil control solenoid.The PCM generates and determines the control amount based on signals from various sensors to subject the rocker arm oil control solenoid to a feedback control.

Courtesy of HONDA, U.S.A., INC.

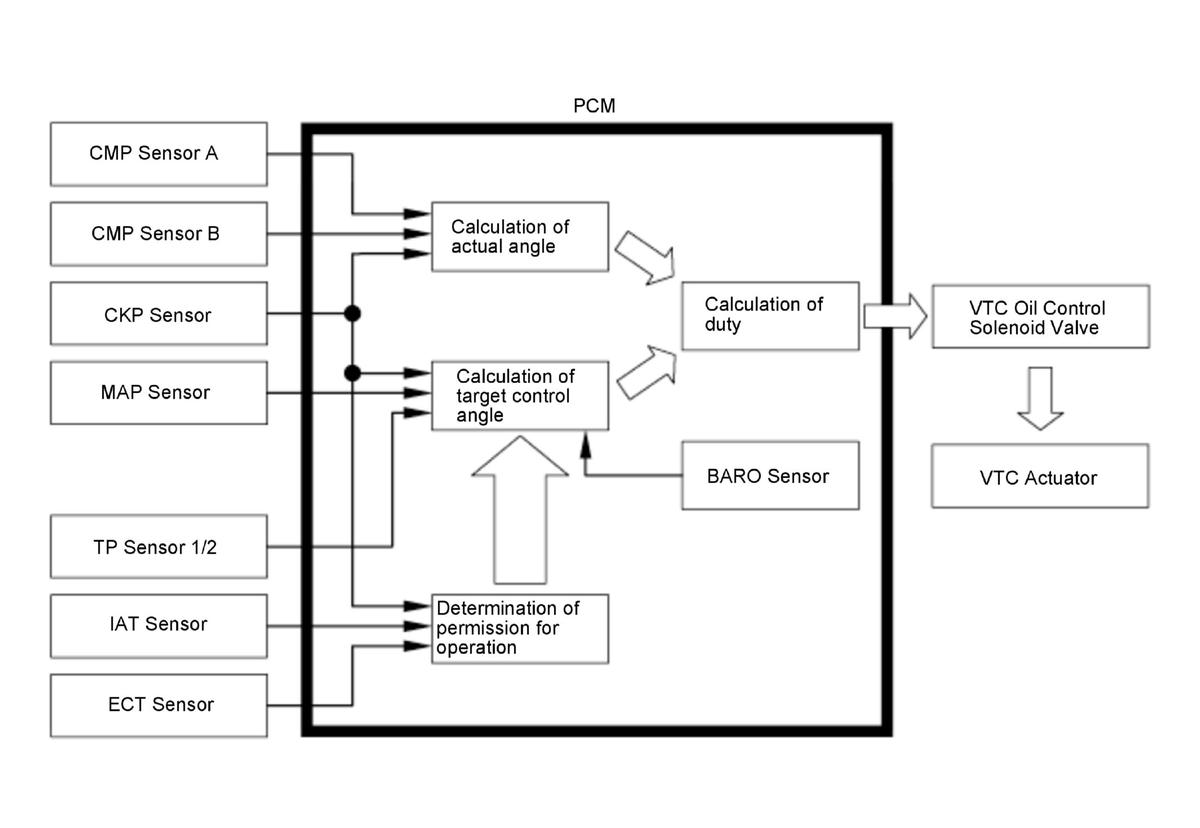

VTC

The PCM generates and determines the control amount based on signals from various sensors to subject the VTC oil control solenoid valve to a feedback control.

Courtesy of HONDA, U.S.A., INC.
