Driving Position Memory System (DPMS) Component Location Index (2.0L Engine)

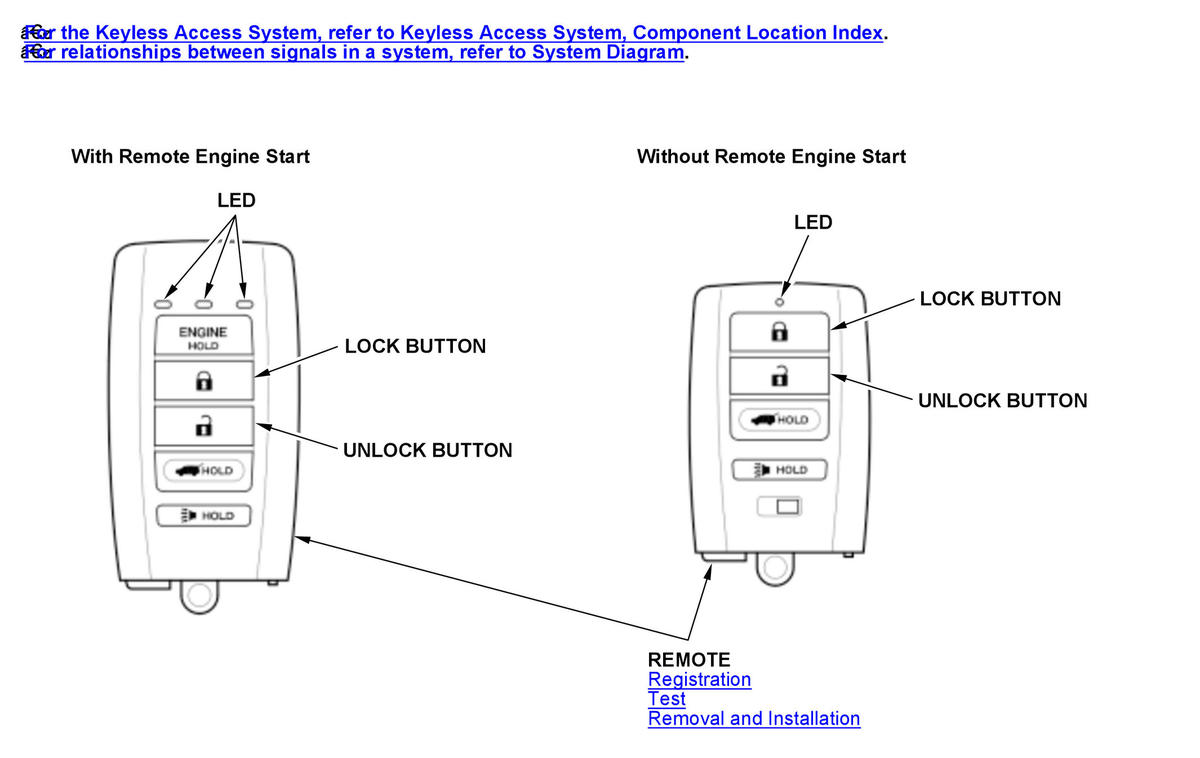

GHH562046

Courtesy of HONDA, U.S.A., INC.

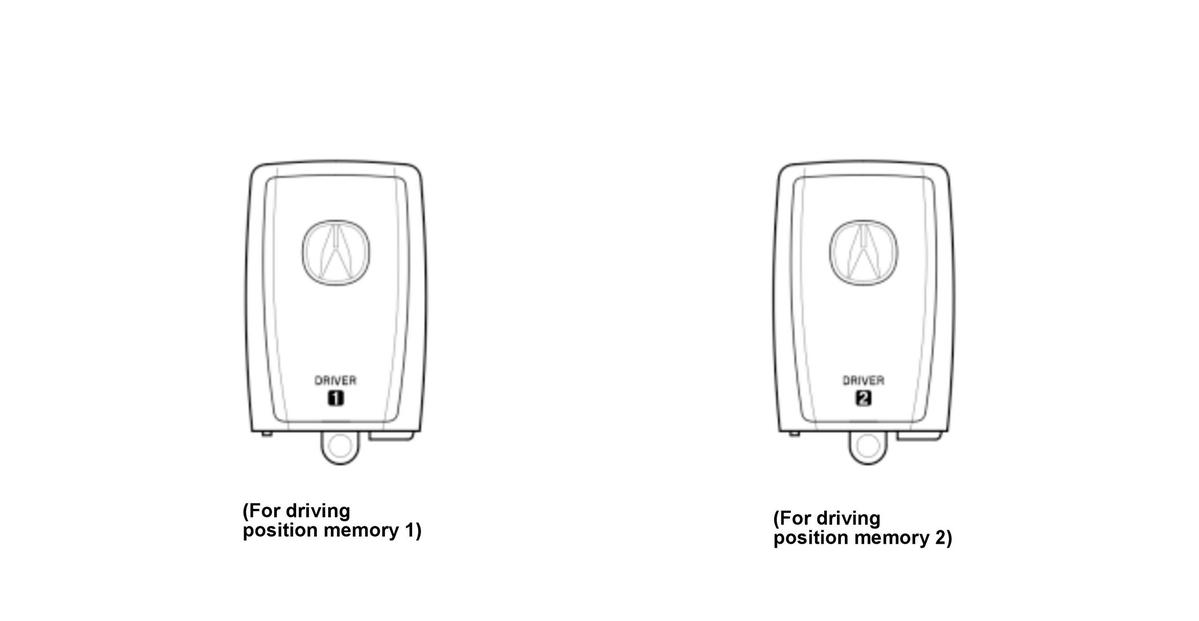

GHH562047

Courtesy of HONDA, U.S.A., INC.

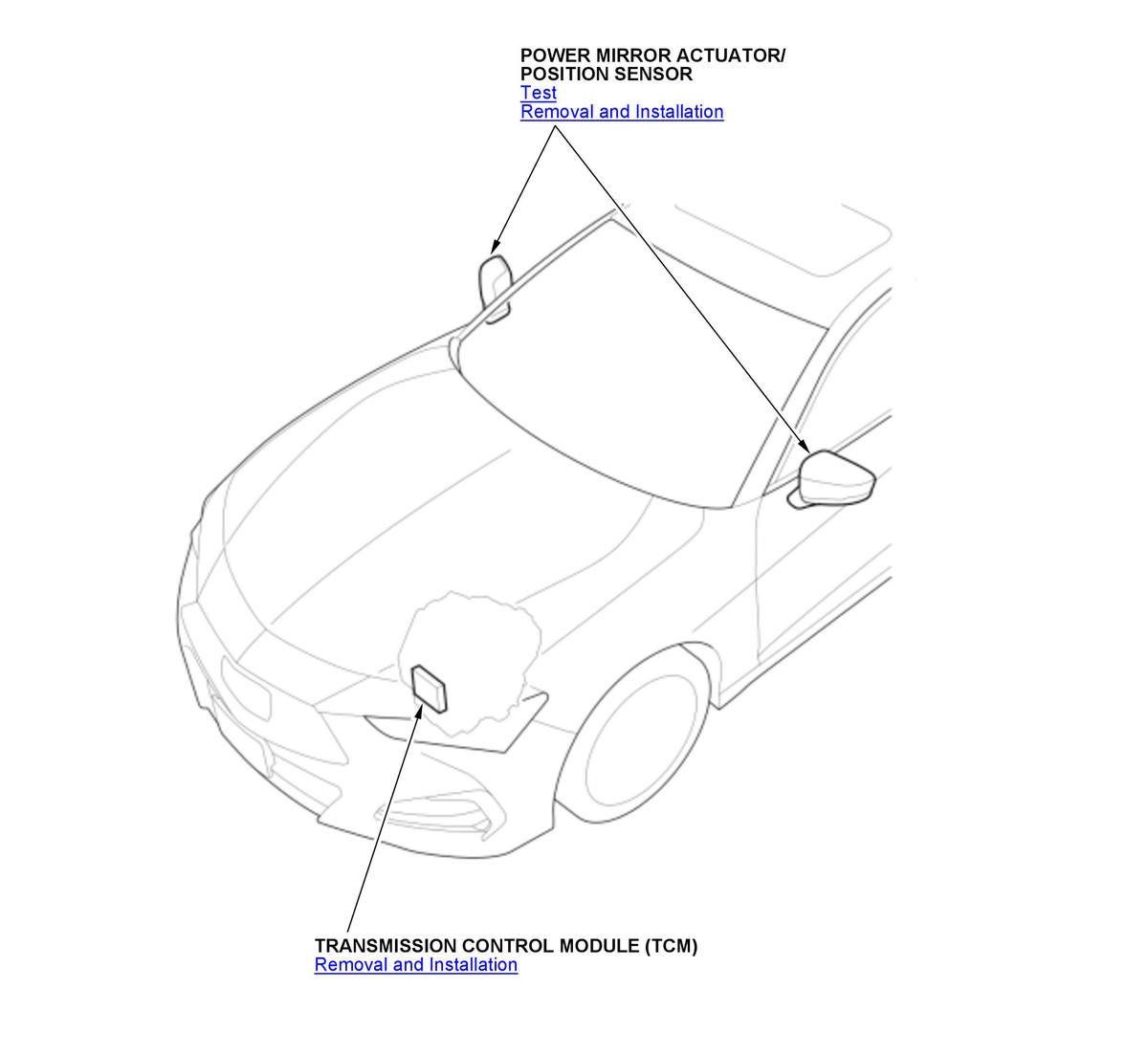

GHH562048

Courtesy of HONDA, U.S.A., INC.

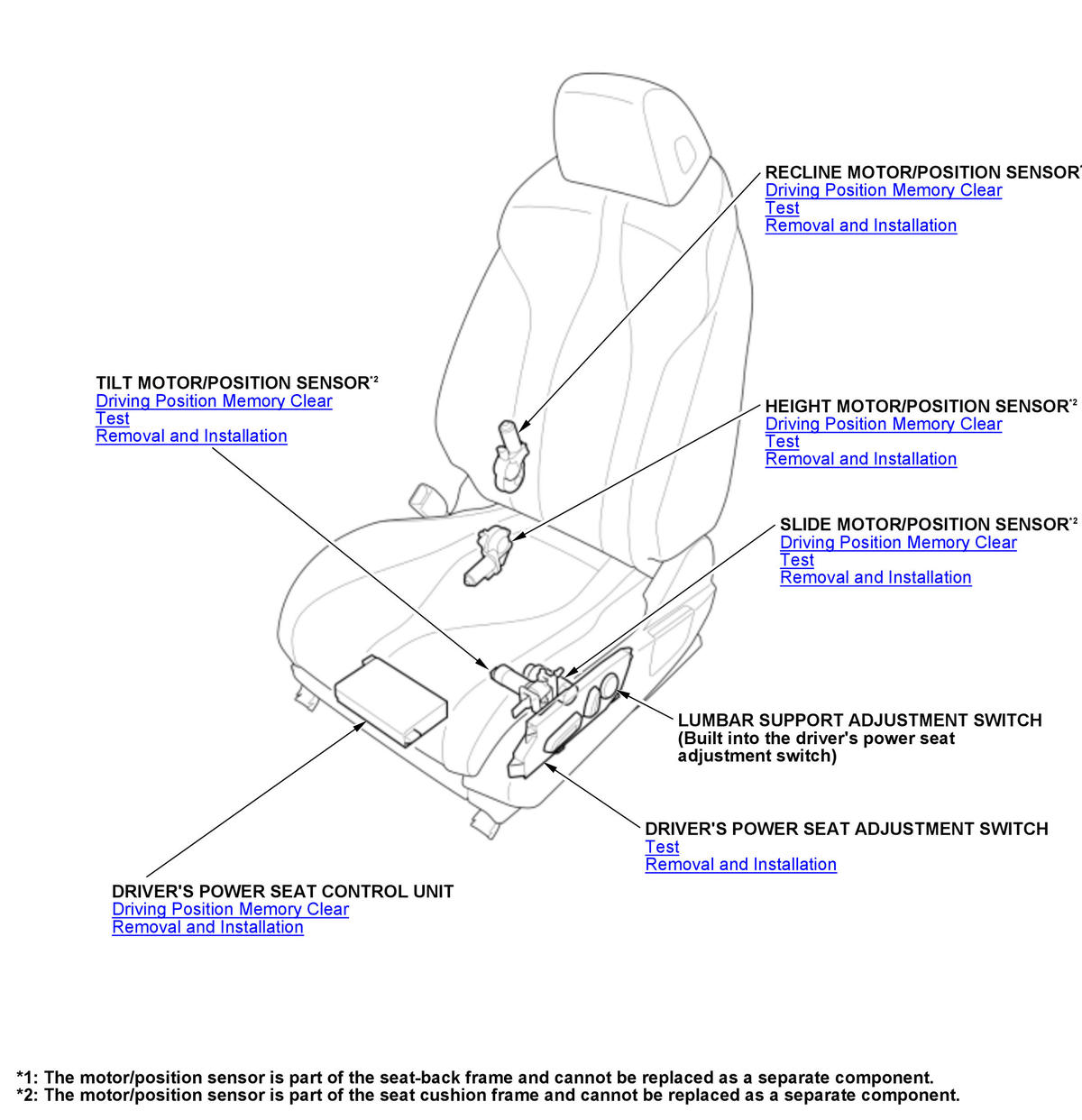

GHH562049

Courtesy of HONDA, U.S.A., INC.

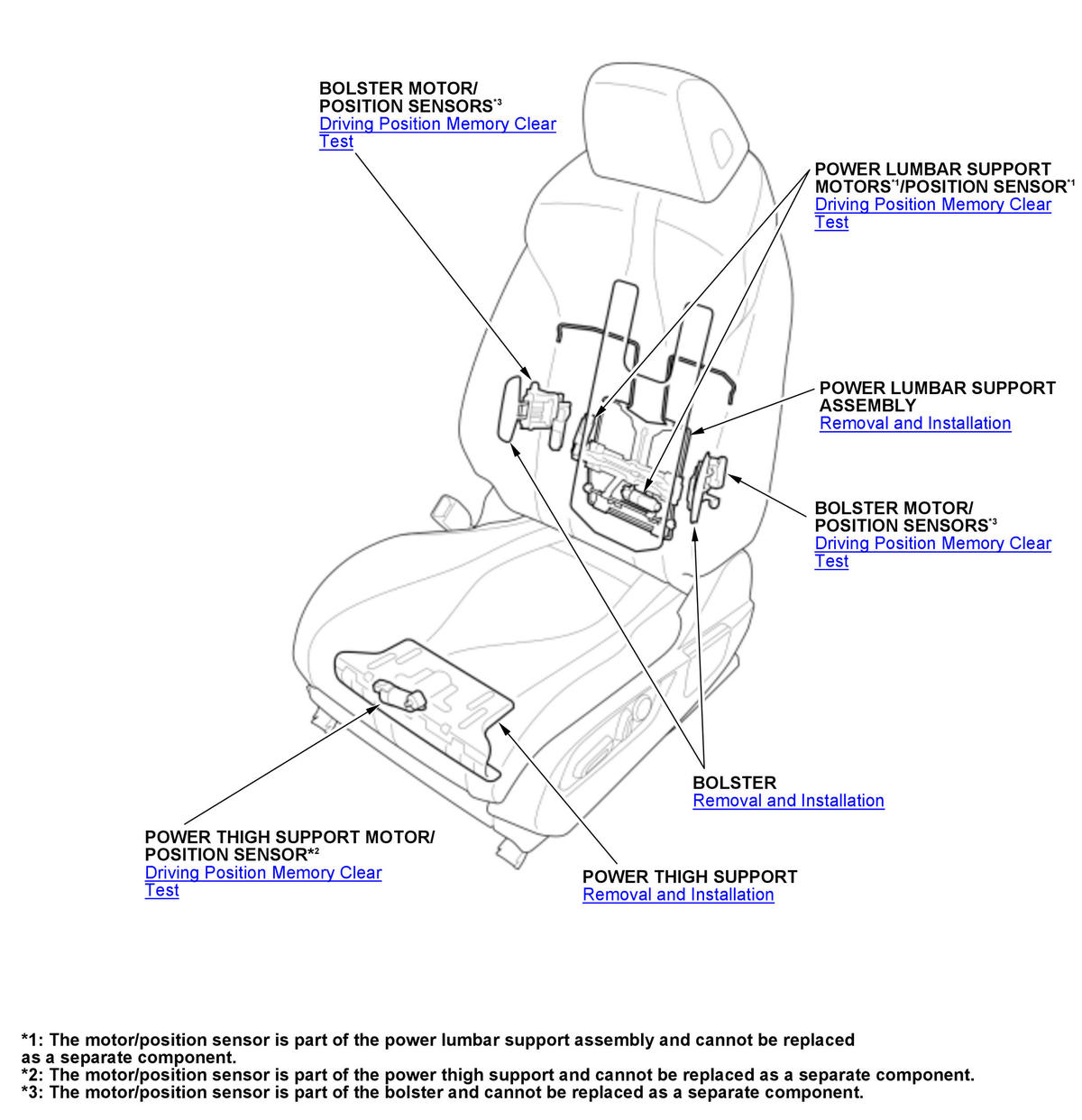

GHH562050

Courtesy of HONDA, U.S.A., INC.

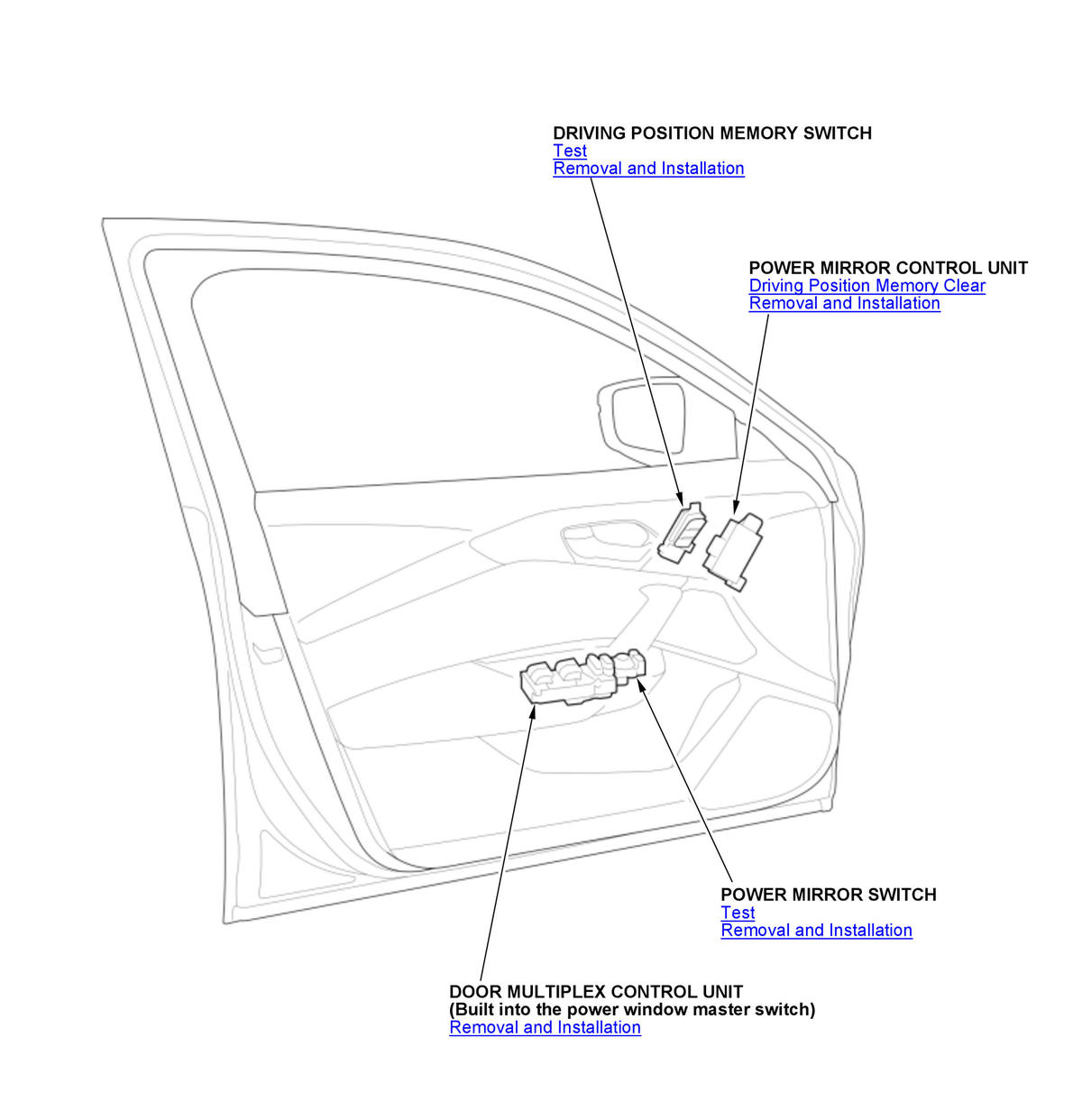

GHH562051

Courtesy of HONDA, U.S.A., INC.

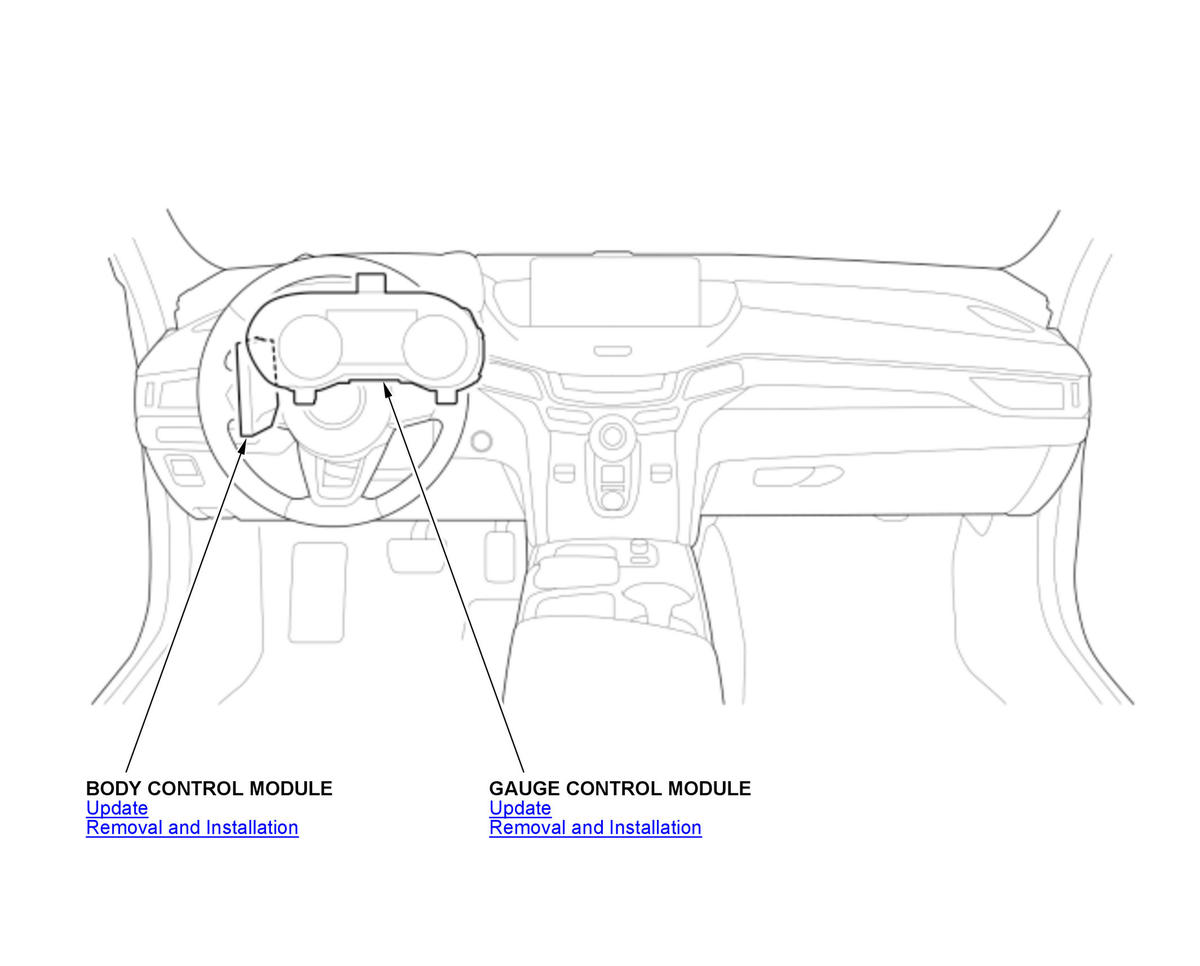

GHH562052

Courtesy of HONDA, U.S.A., INC.
