DTC Advanced Diagnostics: P083D
DTC P083D : Transmission Fluid Pressure Switch A Circuit High
General Description

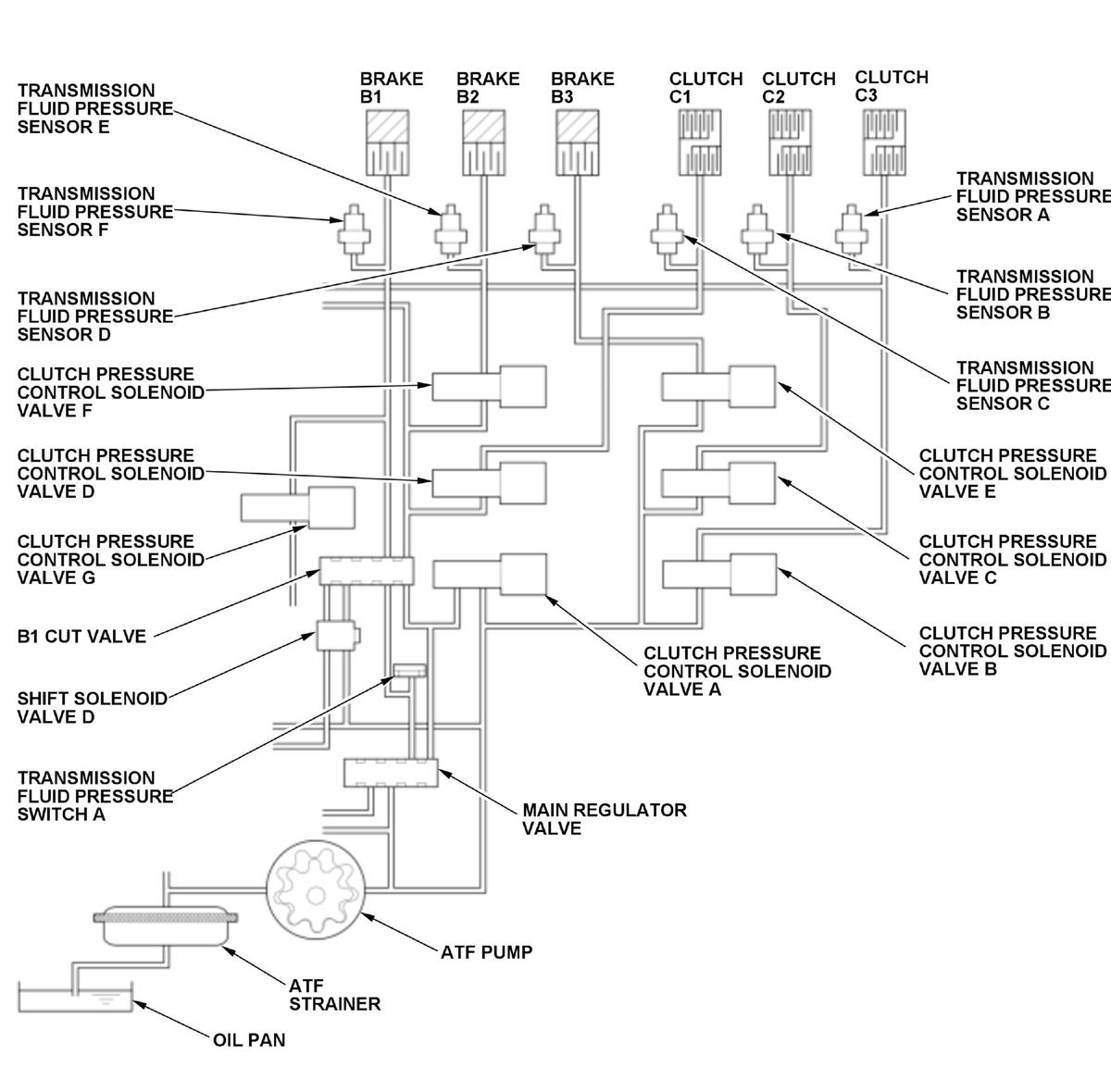

Shift solenoid valve D is installed on the valve body assembly. It is controlled by the ON/OFF signal from the transmission control module (TCM) to apply line pressure to the B1 cut valve. The B1 cut valve does not operate when shift solenoid valve D is OFF, and operates when it is ON. Transmission fluid pressure switch A is installed on the hydraulic passage where transmission fluid pressure switch A outputs ON when the B1 cut valve is not operating. Since the B1 cut valve does not operate when shift solenoid valve D is OFF, the hydraulic pressure is output from the B1 cut valve and turns transmission fluid pressure switch A to ON. Contrary, the B1 cut valve operates when shift solenoid D is ON, the hydraulic pressure is cut off from the B1 cut valve and turns transmission fluid pressure switch A to OFF. If transmission fluid pressure switch A outputs ON for a specified time when the transmission fluid pressure sensor E value is a specified value, the TCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 2.0 seconds or more |
| DTC Type | Two drive cycles, MIL on, shift position indicator blinks |
Enable Conditions
| Condition | Minimum | Maximum | |
|---|---|---|---|
| Engine speed [Engine Speed] | 500 rpm | - | |
| 12 volt battery voltage [Battery Voltage] | 10 V | - | |
| Control command to shift solenoid valve D | ON | ||
| Other | Transmission fluid pressure sensor A, B, C, D, and F values are 300 kPa (3.06 kgf/cm 2, 43.5 psi) or less | ||
[ ]: HDS Parameter
Malfunction Threshold
Transmission fluid pressure switch A outputs ON for at least 2.0 seconds when the transmission fluid pressure sensor E value is 200 kPa (2.03 kgf/cm 2, 29.0 psi) or less.
Possible Cause
- Valve body assembly failure (transmission fluid pressure switch A circuit high)
Confirmation Procedure
Operating Condition
Start the engine, and wait for several seconds in P position/mode.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the TCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on, the shift position indicator blinks, and a Confirmed DTC and the freeze data are stored.
Conditions for clearing the DTC
The shift position indicator comes off by turning the vehicle to the OFF (LOCK) mode. The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool clear command.
