Transfer Assembly Component Location Index

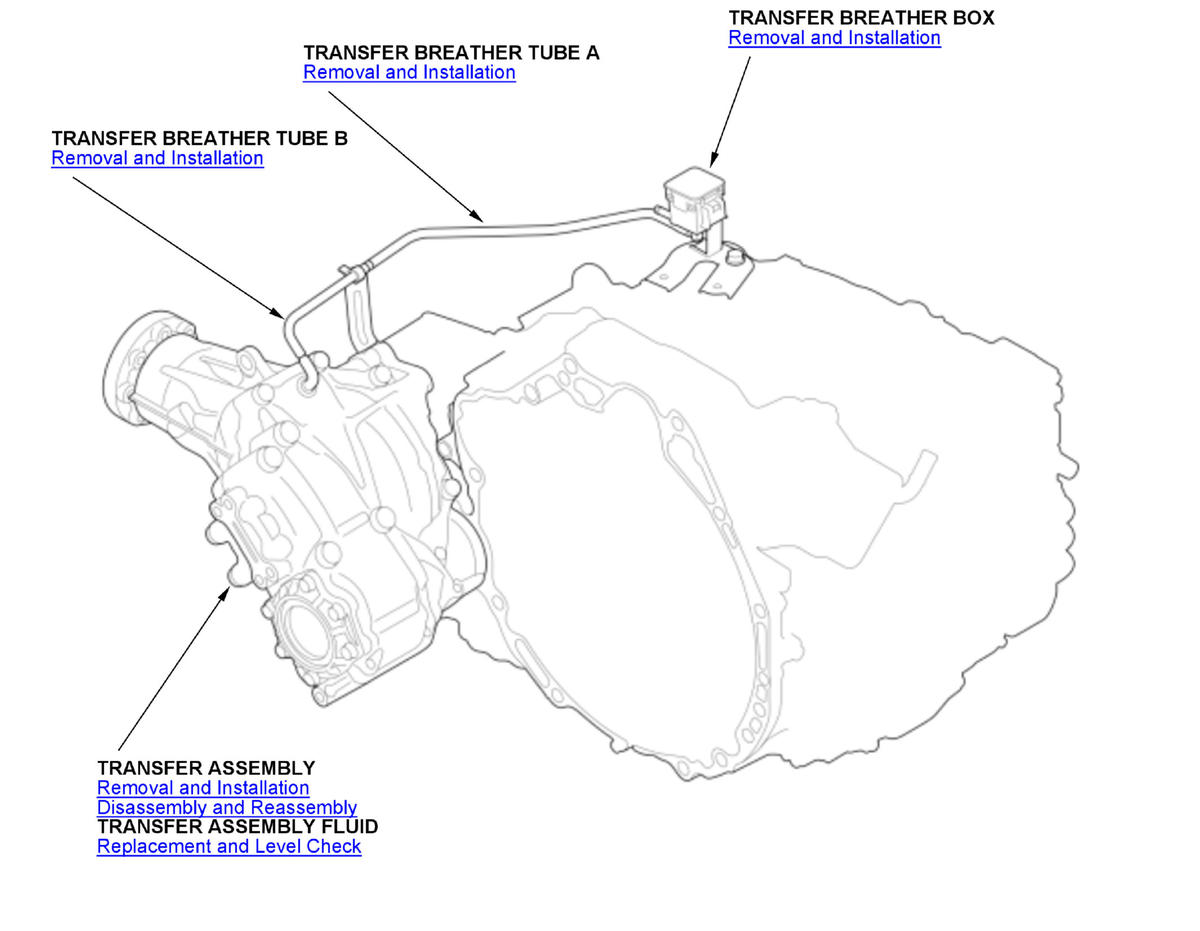

2.0 L Engine
Courtesy of HONDA, U.S.A., INC.

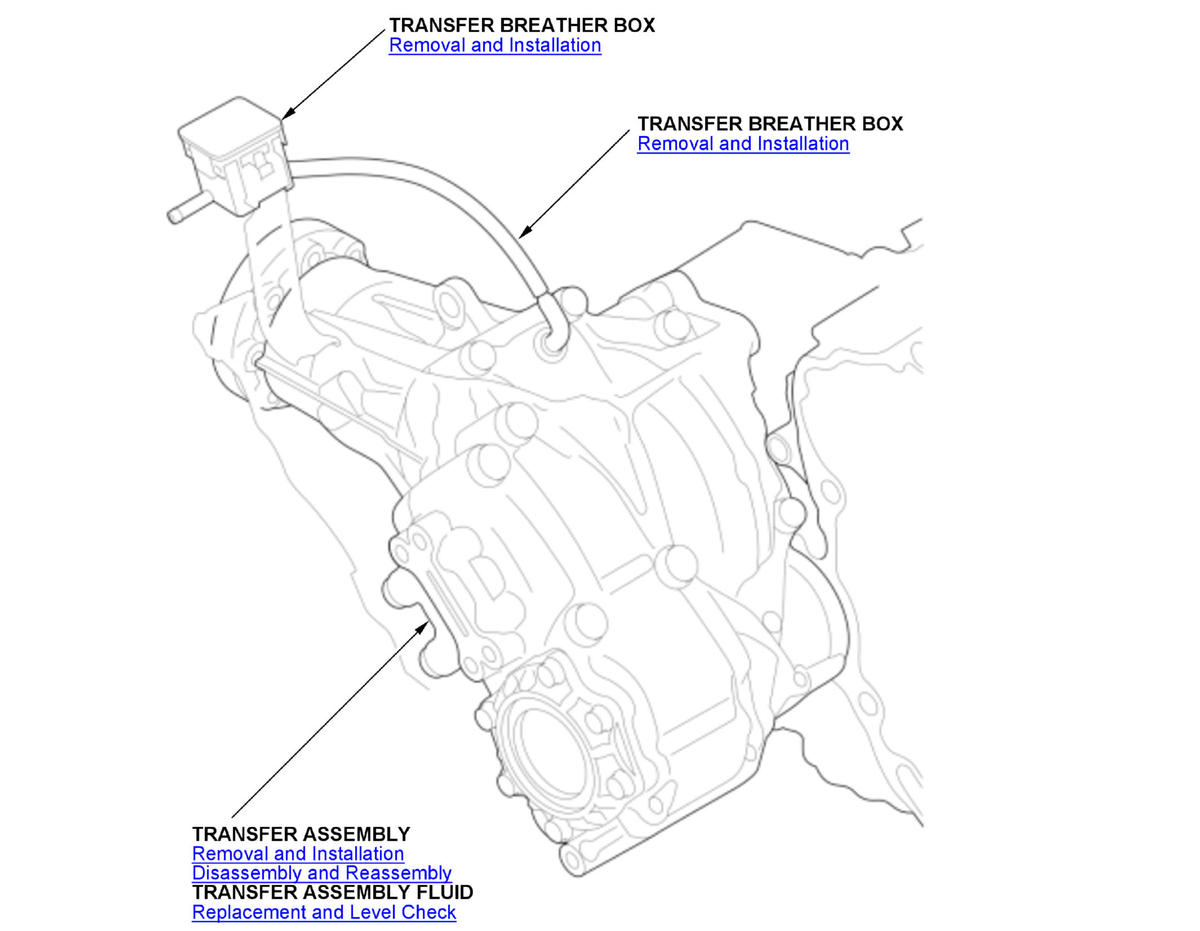

3.0 L Engine
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
