Combination Light Switch Test: Test

How to use this service information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

1. Combination Light Switch - Test

   Preconditions

   • Combination Light Switch Removed

   Procedure/Specifications

   • Check the switch according to the table. (Figure 1, 2, 3, 4, 5, and 6)

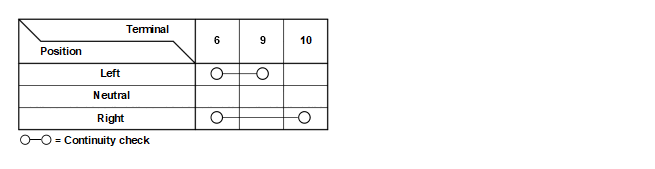

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

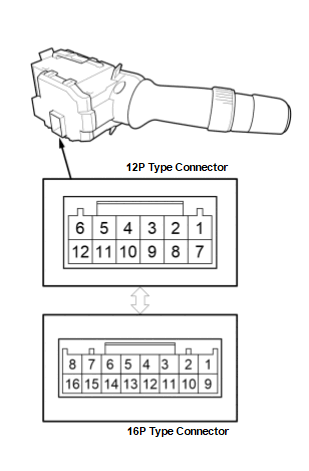

   Figure 2 (Light Switch) (12P Type Connector)

   Courtesy of HONDA, U.S.A., INC.

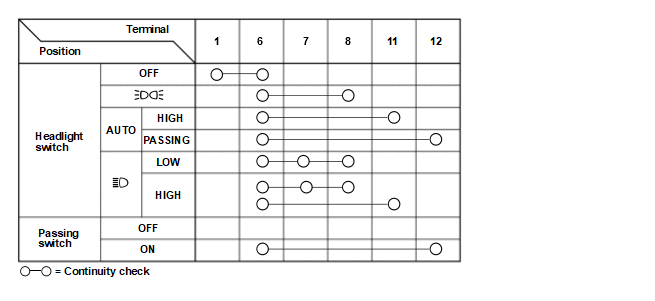

   Figure 3 (Light Switch) (16P Type Connector)

   Courtesy of HONDA, U.S.A., INC.

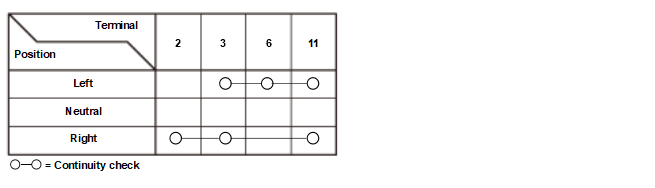

   Figure 4 (Turn Signal Switch) (12P Type Connector)

   Courtesy of HONDA, U.S.A., INC.

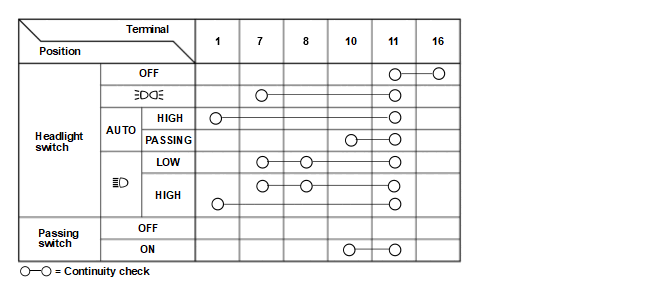

   Figure 5 (Turn Signal Switch) (16P Type Connector)

   Courtesy of HONDA, U.S.A., INC.

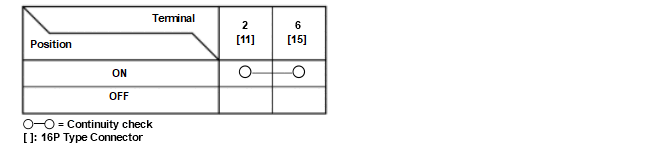

   Figure 6 (Fog Light Switch) (With Fog Light)

   Courtesy of HONDA, U.S.A., INC.

   Result

   • If the result is not as specified, replace the combination light switch.
