Heated Windshield Wiper Area Test: Test

How to use this service information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

1. Heated Windshield Wiper Area - Test

   Preconditions

   • Cowl Cover Removed

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

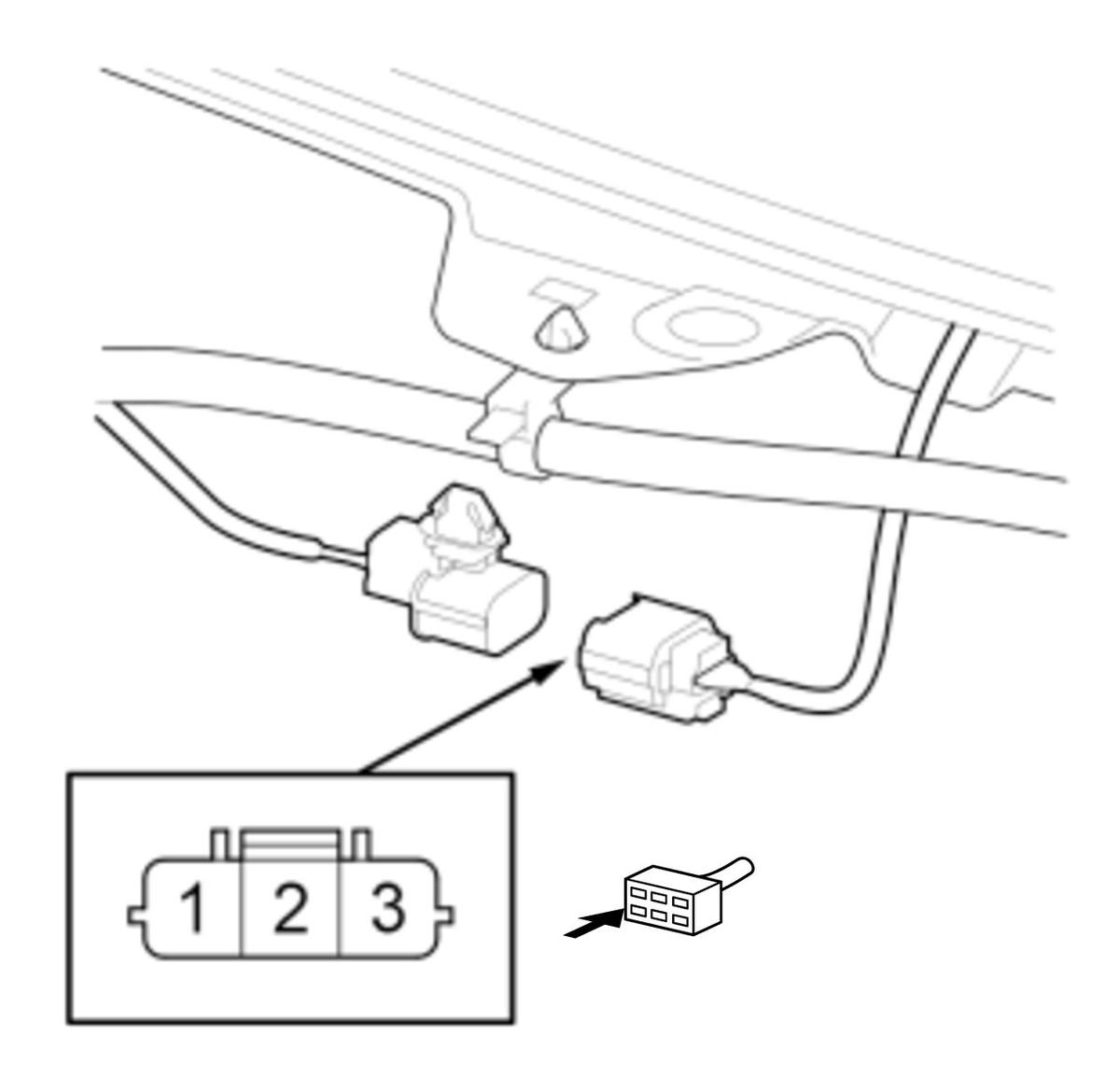

   • Measure the resistance between the terminals according to the table.

   Heated Windshield Wiper Area Specifications

   Terminals	Resistance
   No. 1 - No. 2	About 7.42 Ohm
   No. 2 - No. 3	About 4.41 Ohm

   Result

   • If the result is not as specified, replace the windshield .
