Power Tailgate Pinch Sensor Test: Test

How to use this service information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

1. Power Tailgate Pinch Sensor - Test

   Preconditions

   • Tailgate Trim Panel Removed

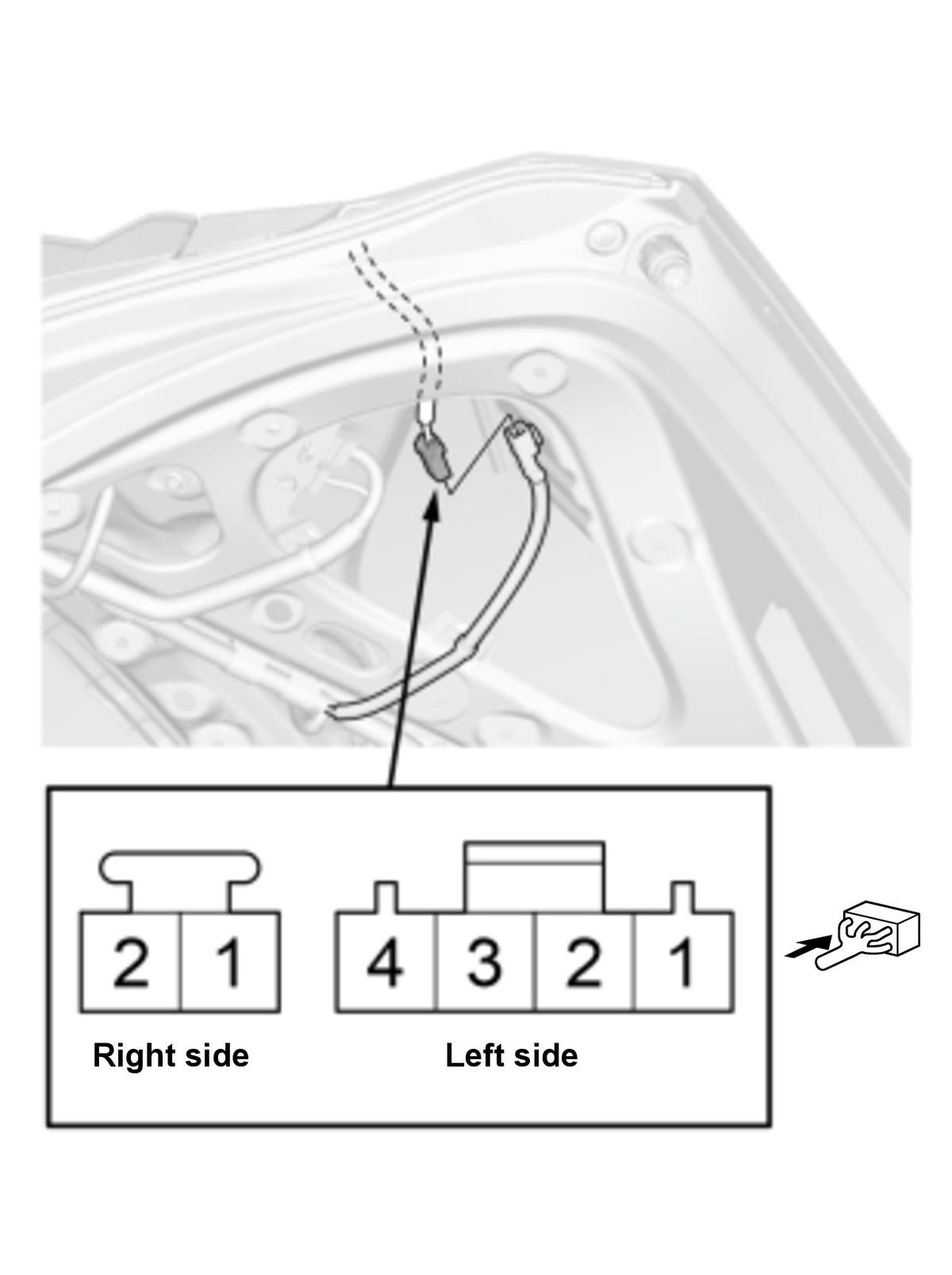

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

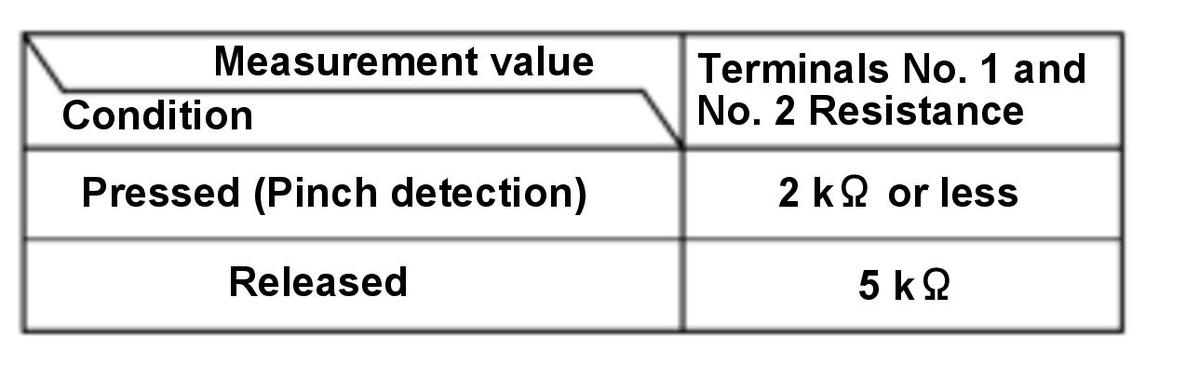

   Figure 2 (Resistance Test)

   Courtesy of HONDA, U.S.A., INC.

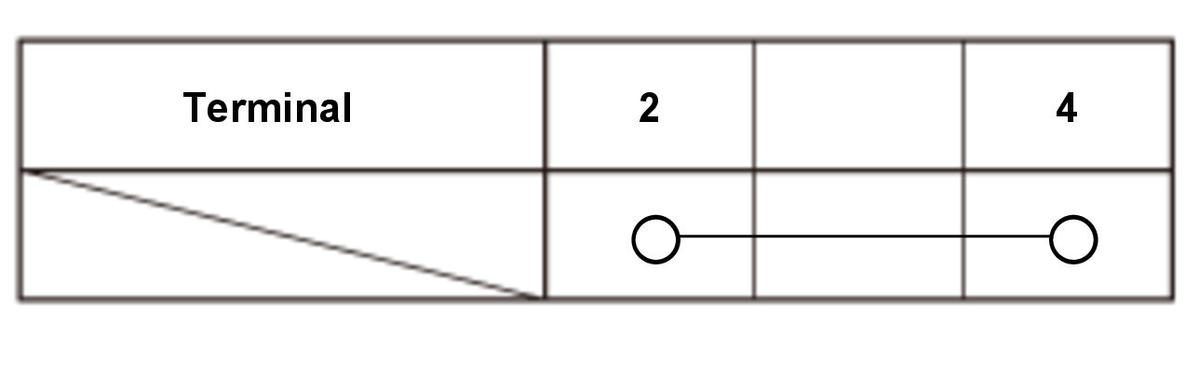

   Figure 3 (Temperature Sensor Test)

   Courtesy of HONDA, U.S.A., INC.

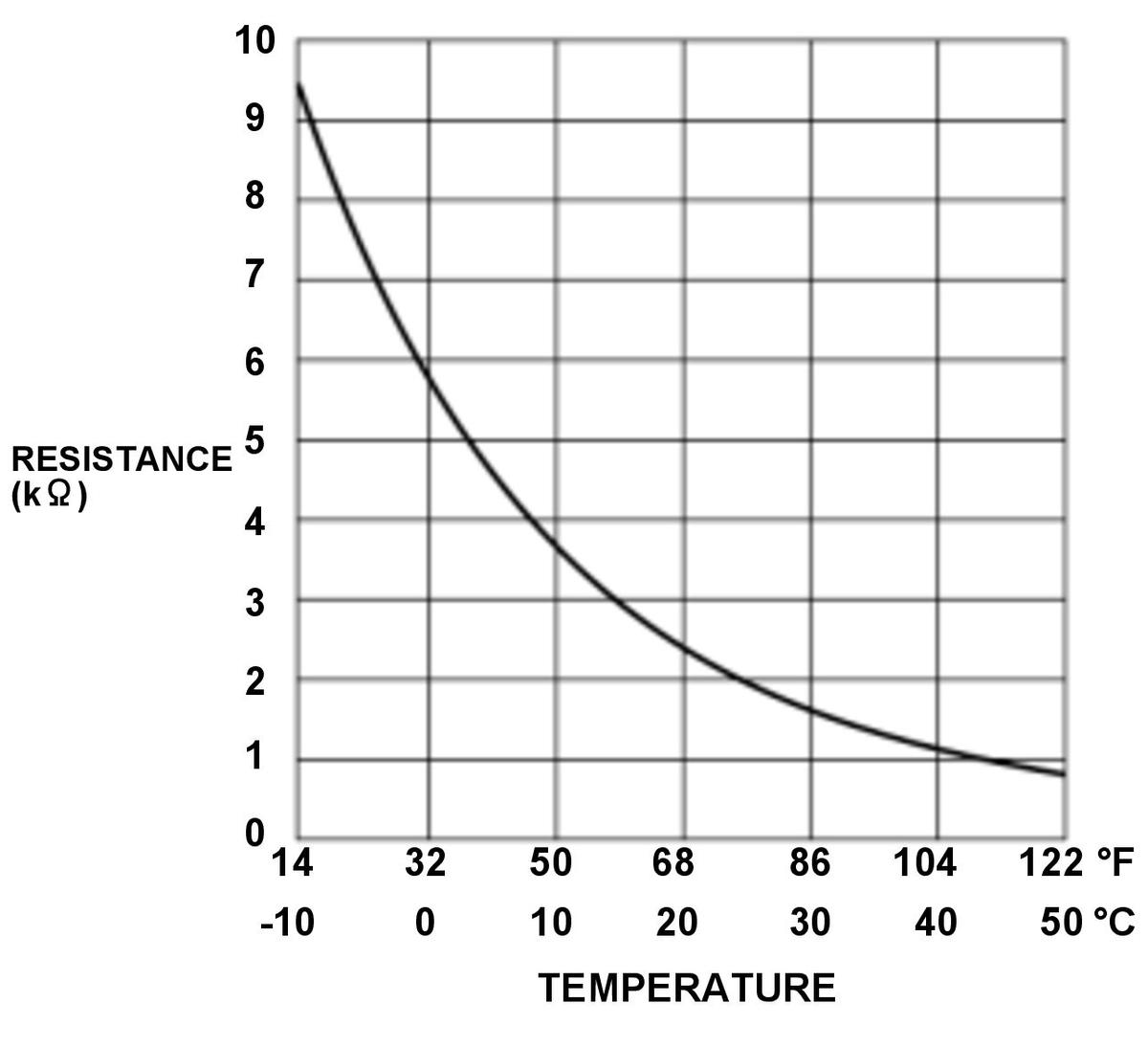

   Figure 4 (Temperature Sensor Test)

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   • Measure the resistance between the terminals. The resistance in each sensor condition should be according to the table. (Figure 1 and 2)
   • Compare the resistance readings with the specifications shown in the graph; the resistance should be within the specifications. (Figure 3 and 4)

   Result

   • If the result is not as specified, replace the power tailgate pinch sensor .
