Sunvisor Inspection: Inspection

How to use this service information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

1. Sunvisor - Check

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   1. If the side curtain airbag has deployed, replace the sunvisor, along with the other parts listed for side curtain airbag deployment.

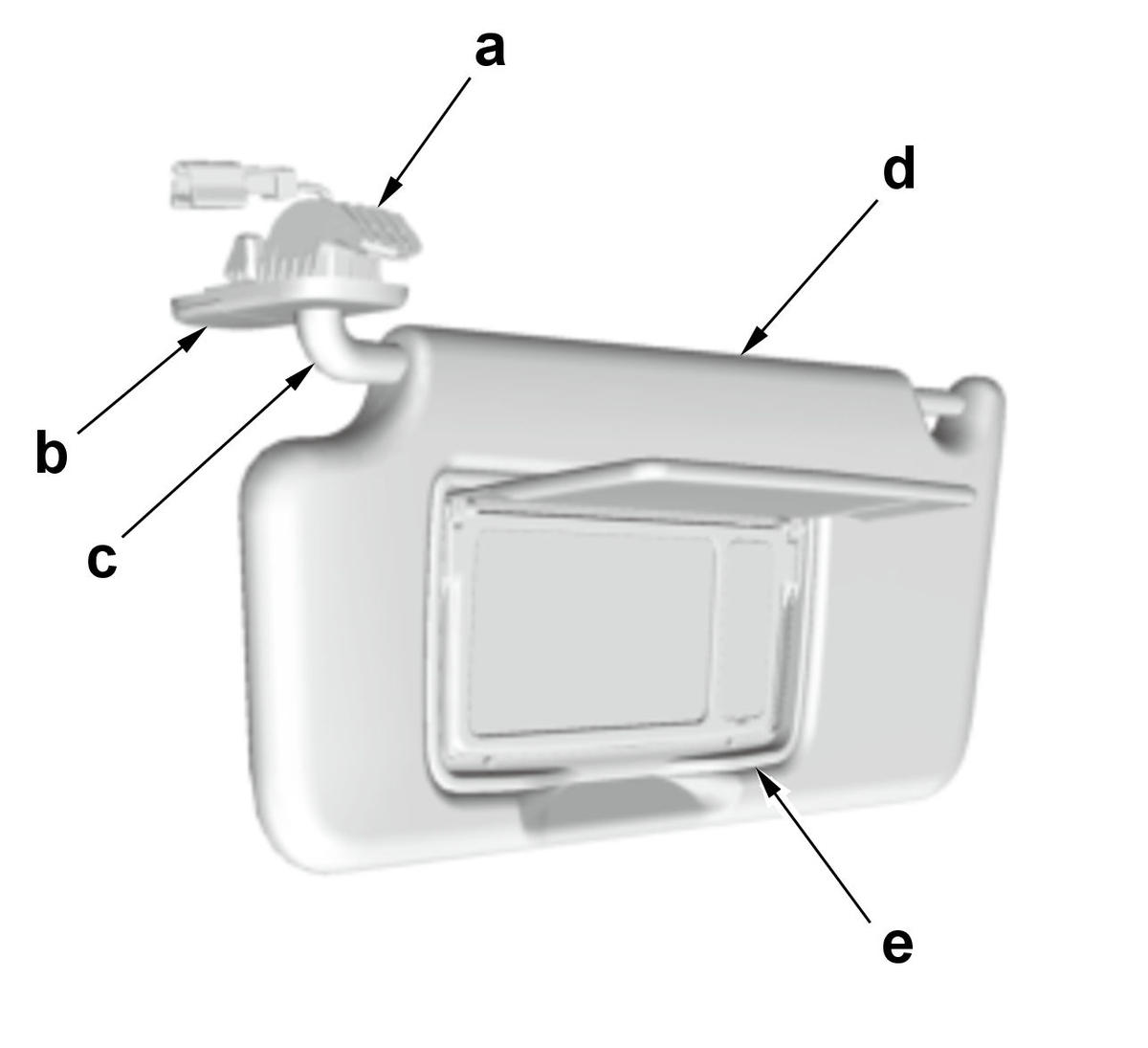

   2. If the side curtain airbag has not deployed, inspect the sunvisor for damage. A damaged sunvisor may cause the side curtain airbags to deploy improperly, possibly causing injury. Replace the sunvisor if it has any of the following damage:

   • Any cracks in the sunvisor bracket (a)
   • Any cracks in the sunvisor bracket cover (b)
   • Any bends or cracks in the sunvisor shaft (c)
   • Any cracks in the sunvisor base (d)
   • Any cracks in the vanity mirror base (e)

   3. If the holder is damaged or stress-whitened, replace the holder grommet and the holder as an assembly.
