Wiper Motor Test: Test

How to use this service information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

Rear

1. Rear Window Wiper Motor - Test

   Preconditions

   • Tailgate Trim Panel Removed

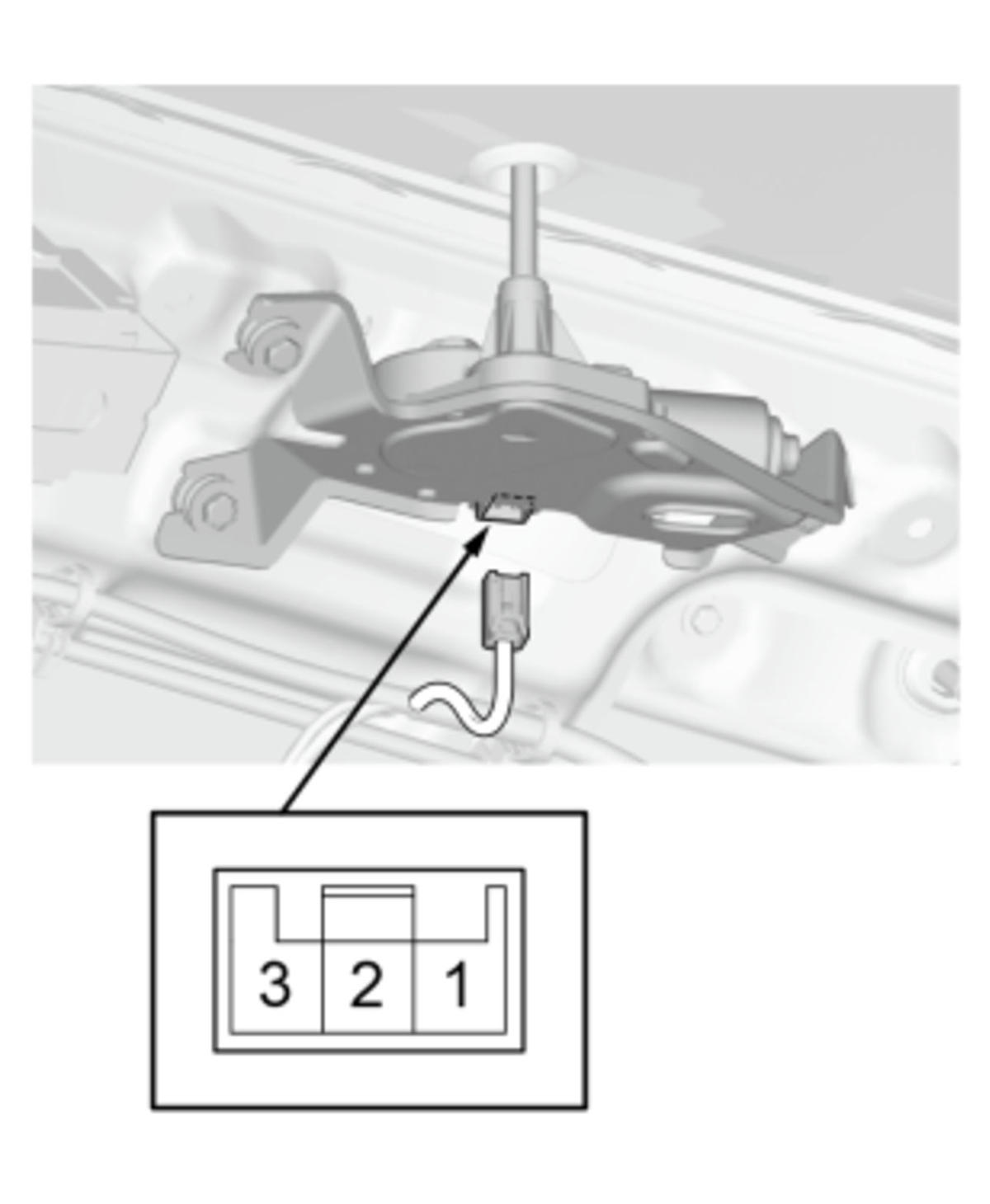

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

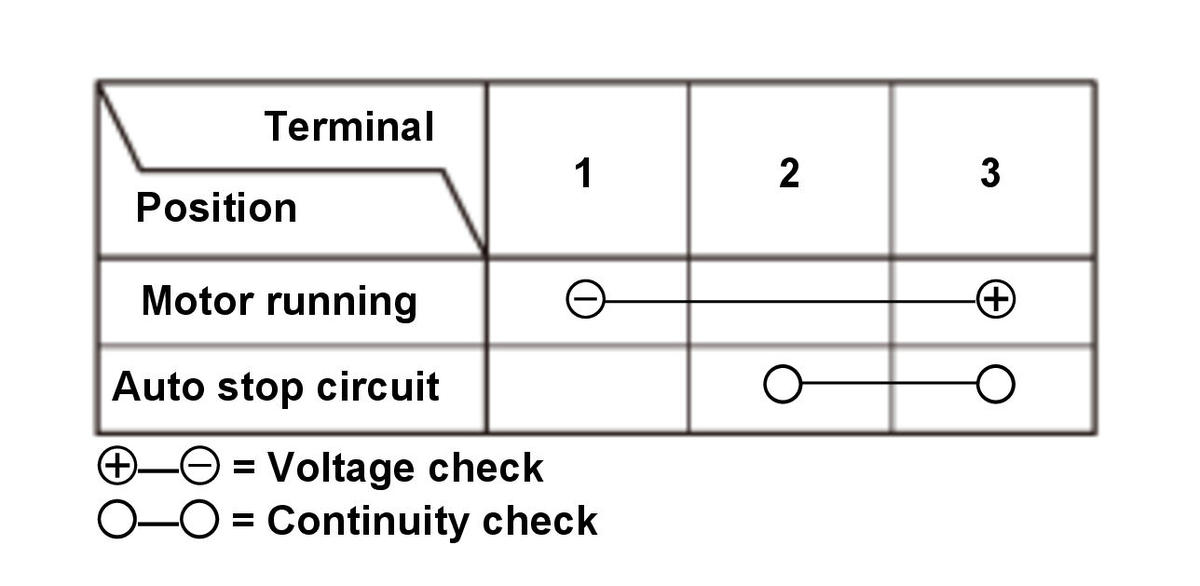

   Wiper Motor and Auto Stop Circuit Test (Figure 2)

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   Wiper Motor Test

   • Test the wiper motor by connecting power and ground according to the table. When the wiper motor stops running, disconnect 12 volt battery power immediately. (Figure 1 and 2)

   Auto Stop Circuit Test

   • Connect an analog ohmmeter to terminals according to the table, and run the wiper motor at low or high speed. The needle of the ohmmeter should pulse. (Figure 1 and 2)

   Result

   • If the result is not as specified, replace the rear window wiper motor .
