Entry Lights Control System Component Location Index

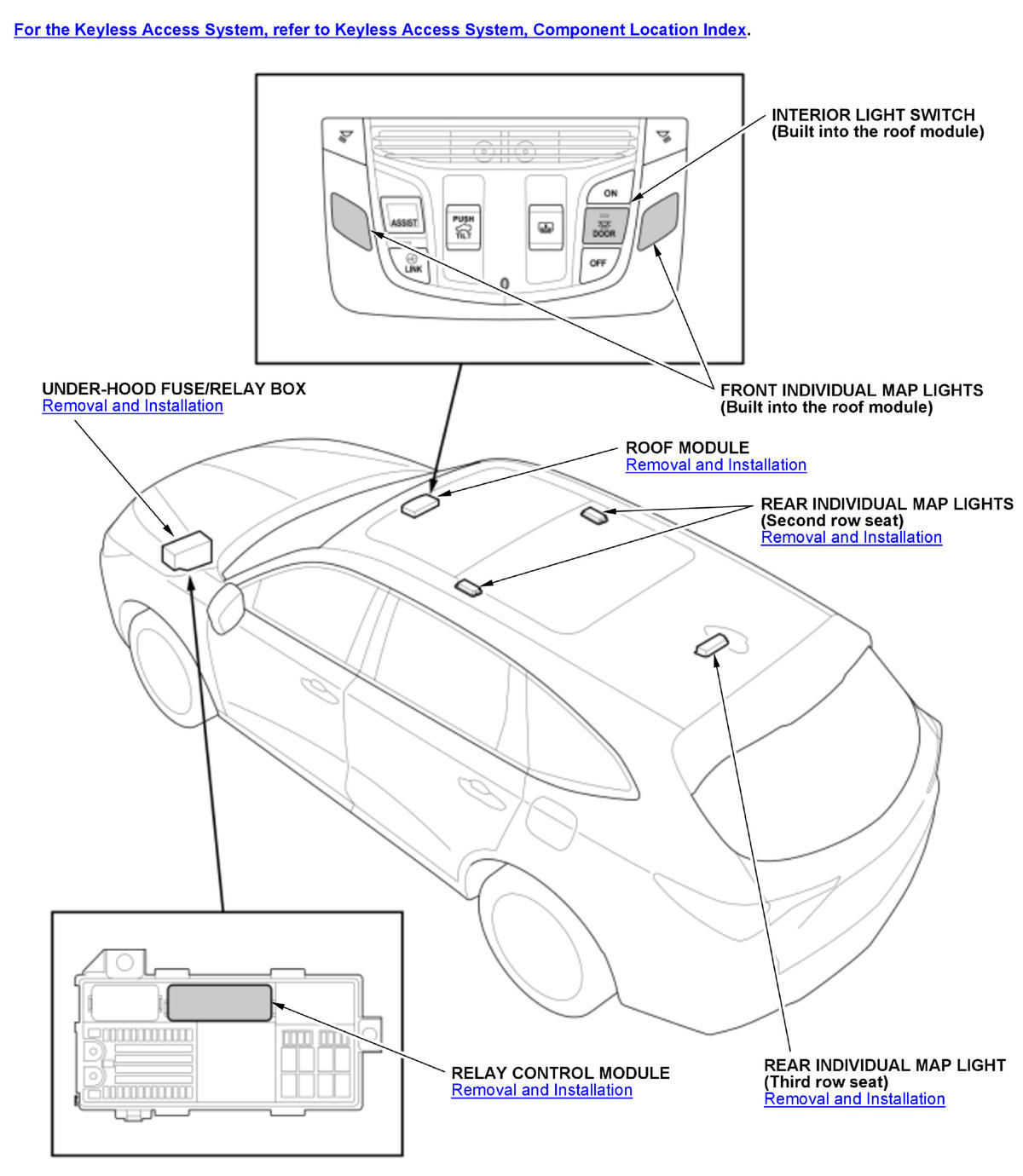

GHH522094Courtesy of HONDA, U.S.A., INC.

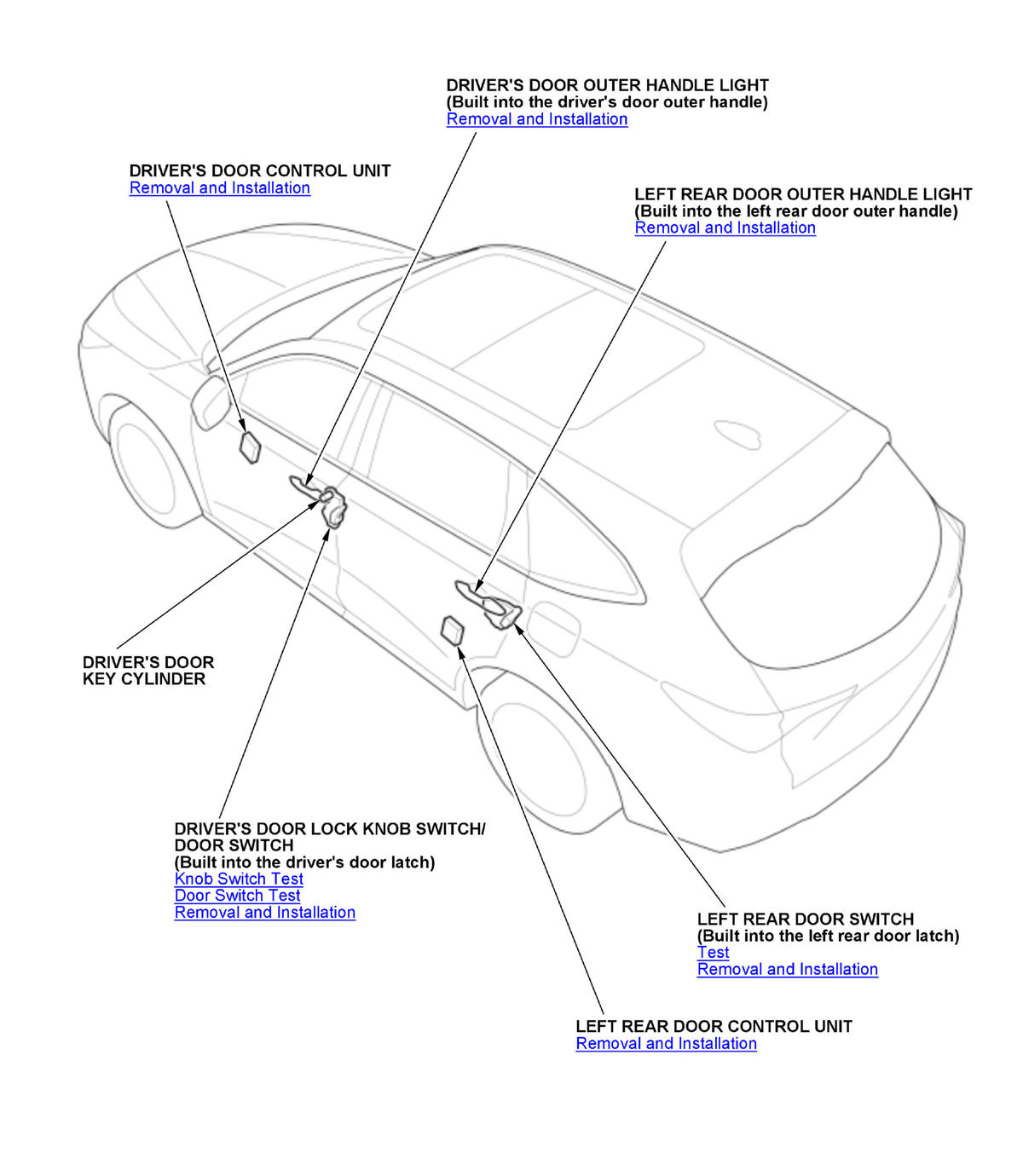

GHH522095Courtesy of HONDA, U.S.A., INC.

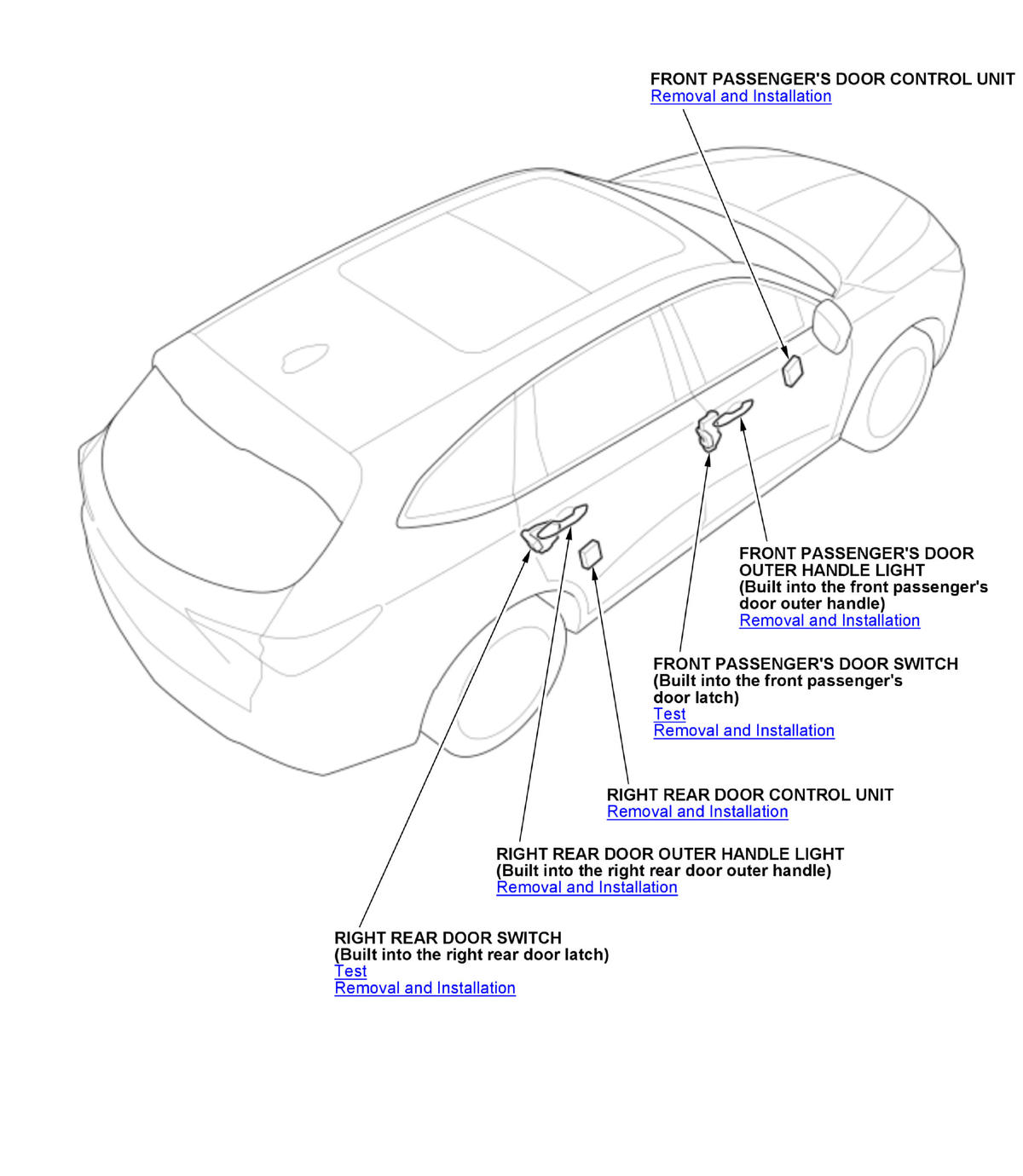

GHH522096Courtesy of HONDA, U.S.A., INC.

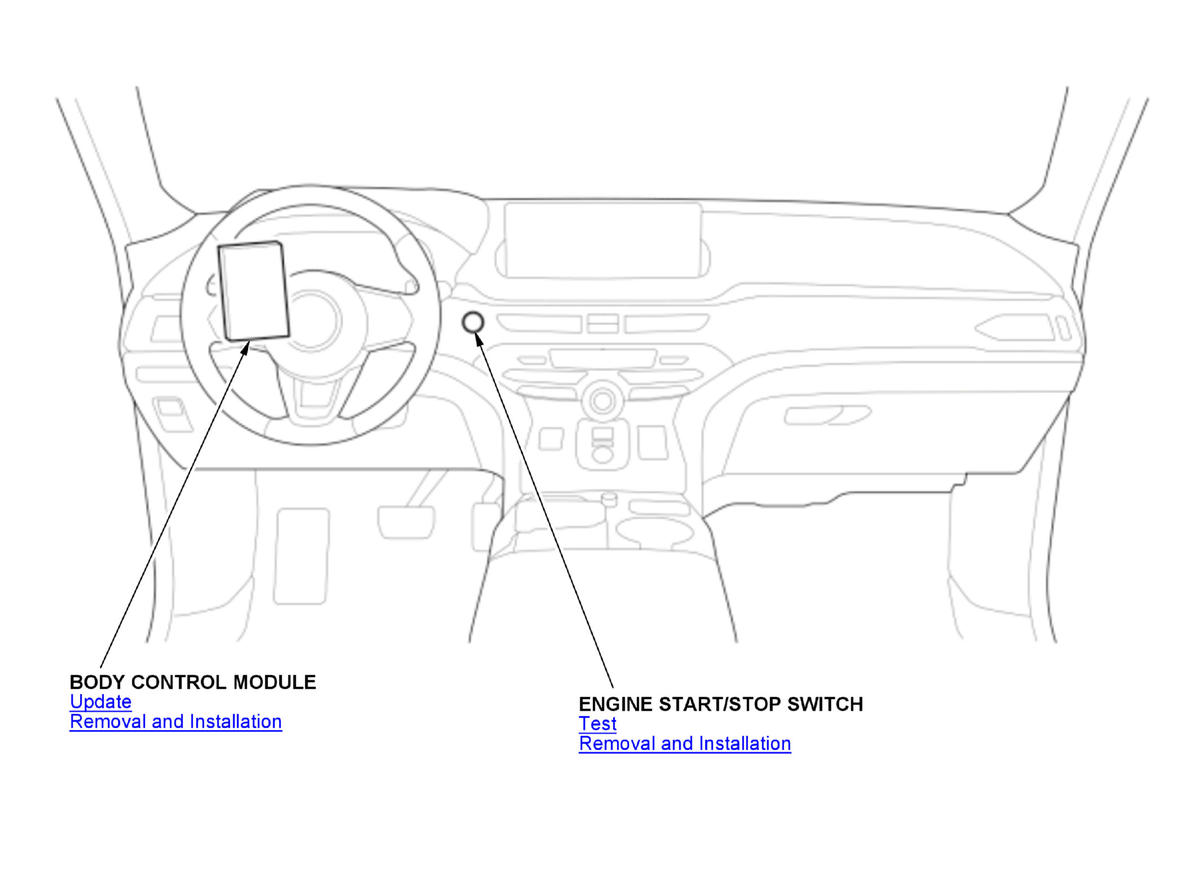

GHH522097Courtesy of HONDA, U.S.A., INC.
