Seat Position Memory System Component Location Index

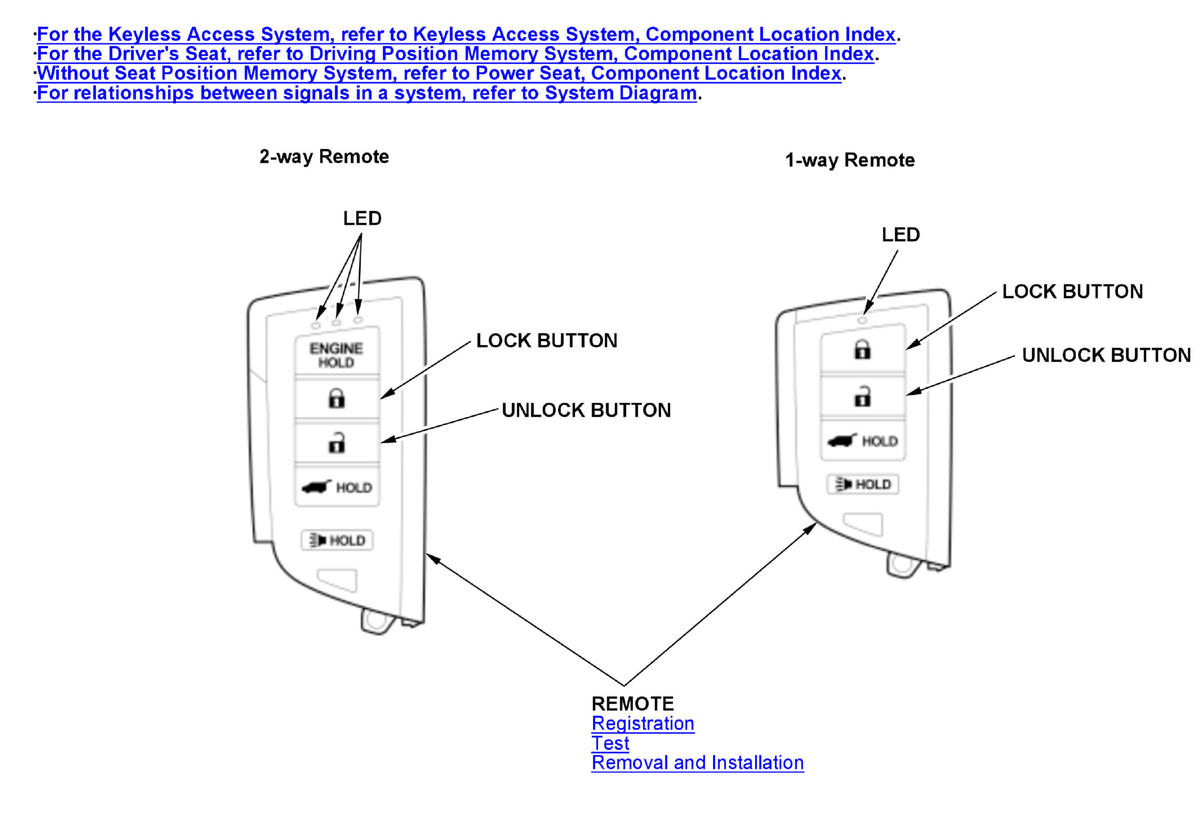

GHH524497Courtesy of HONDA, U.S.A., INC.

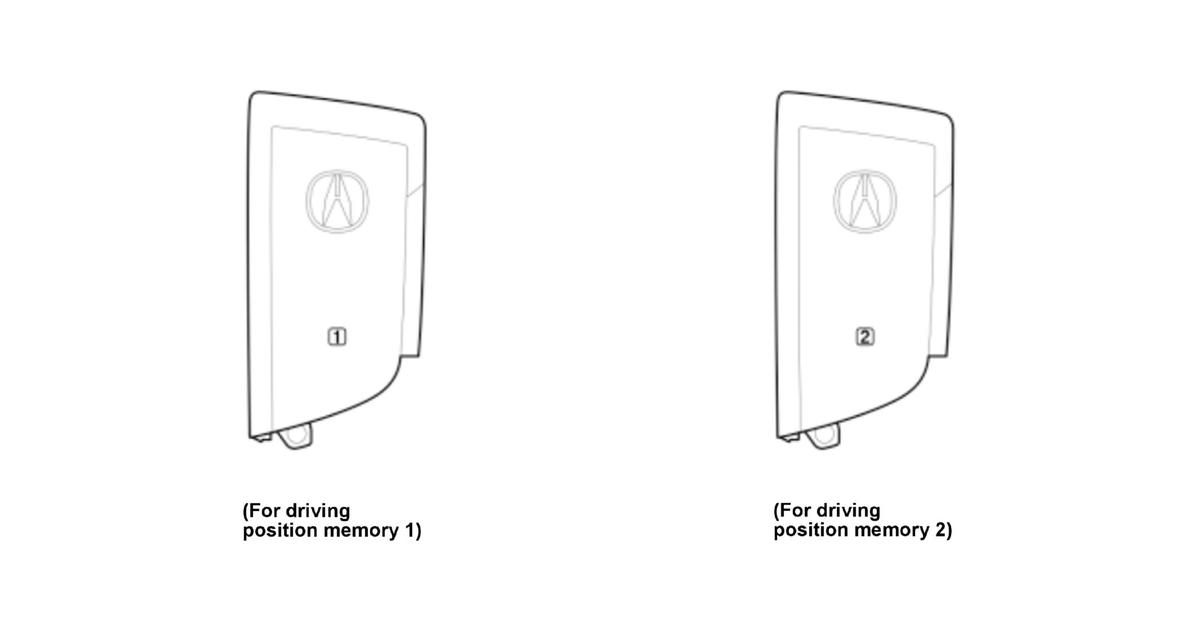

GHH524498Courtesy of HONDA, U.S.A., INC.

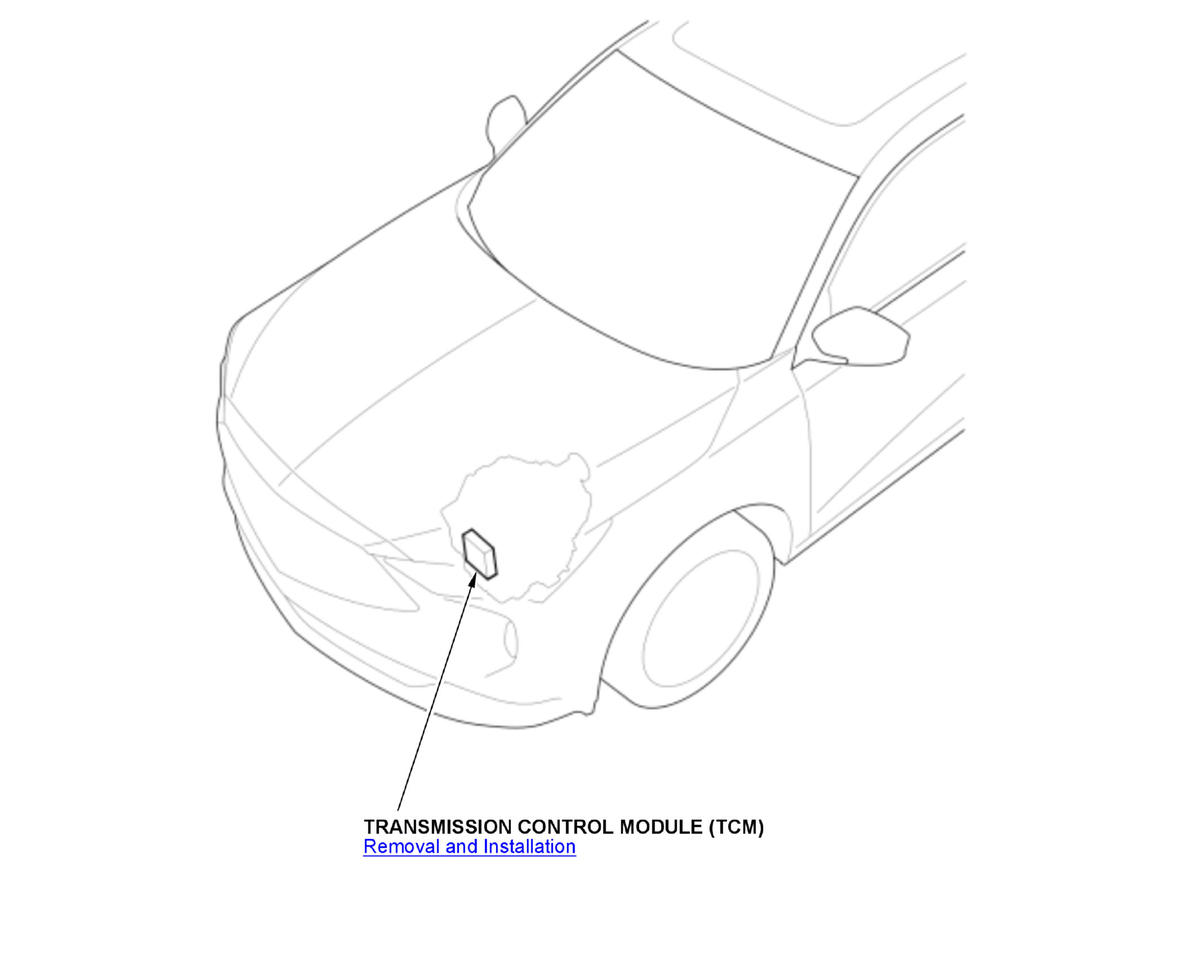

GHH524499Courtesy of HONDA, U.S.A., INC.

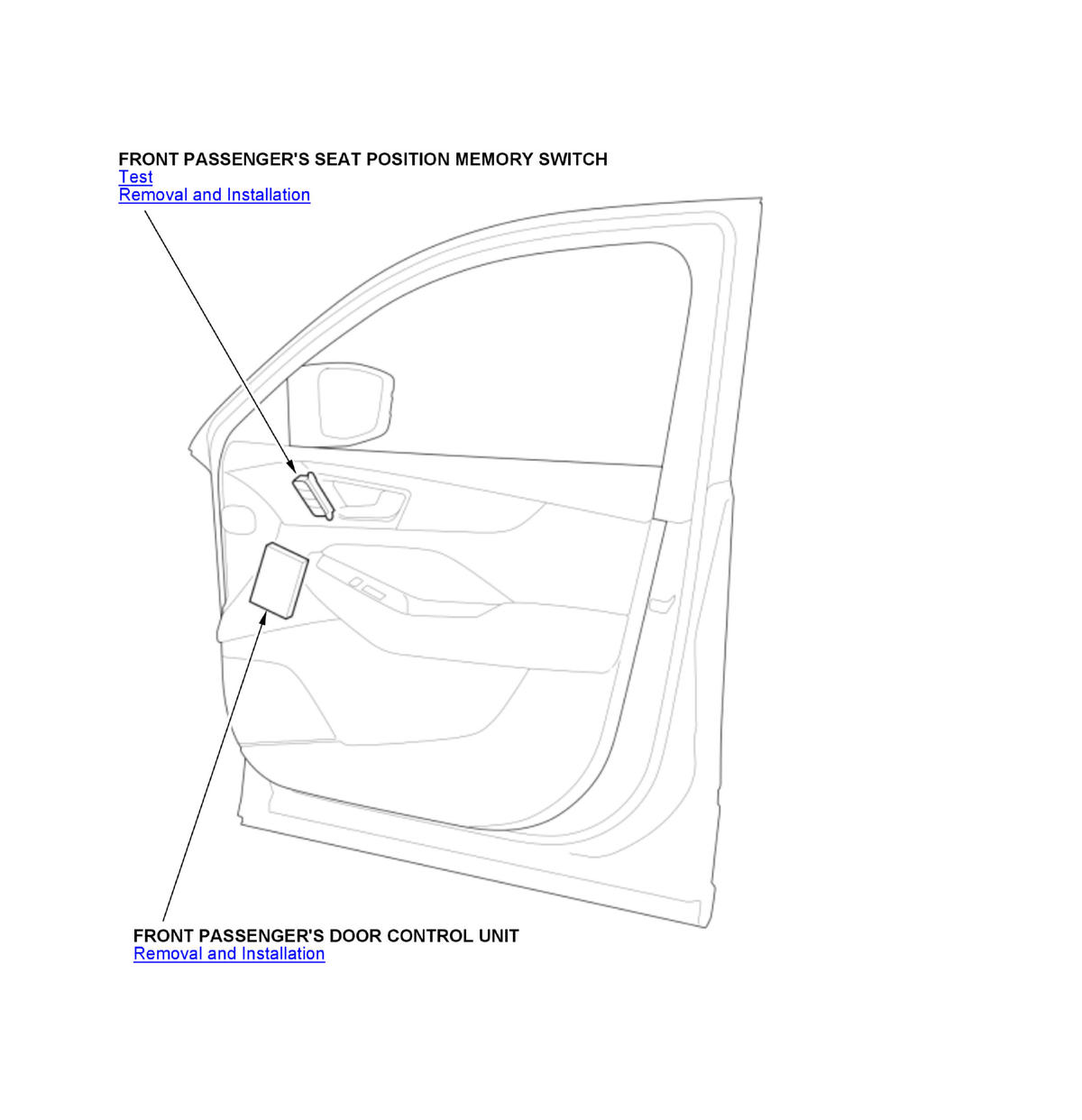

GHH524500Courtesy of HONDA, U.S.A., INC.

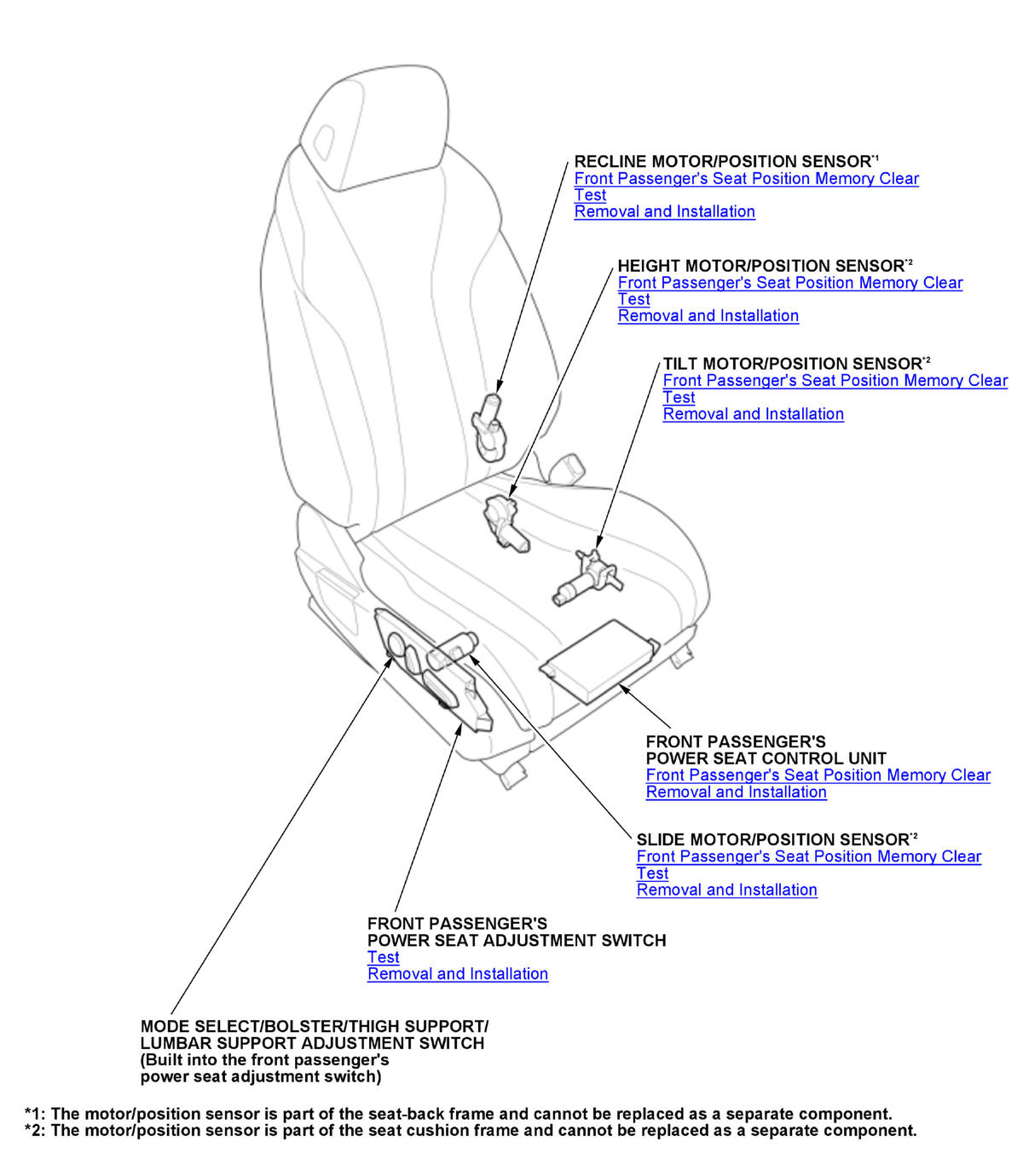

GHH524501Courtesy of HONDA, U.S.A., INC.

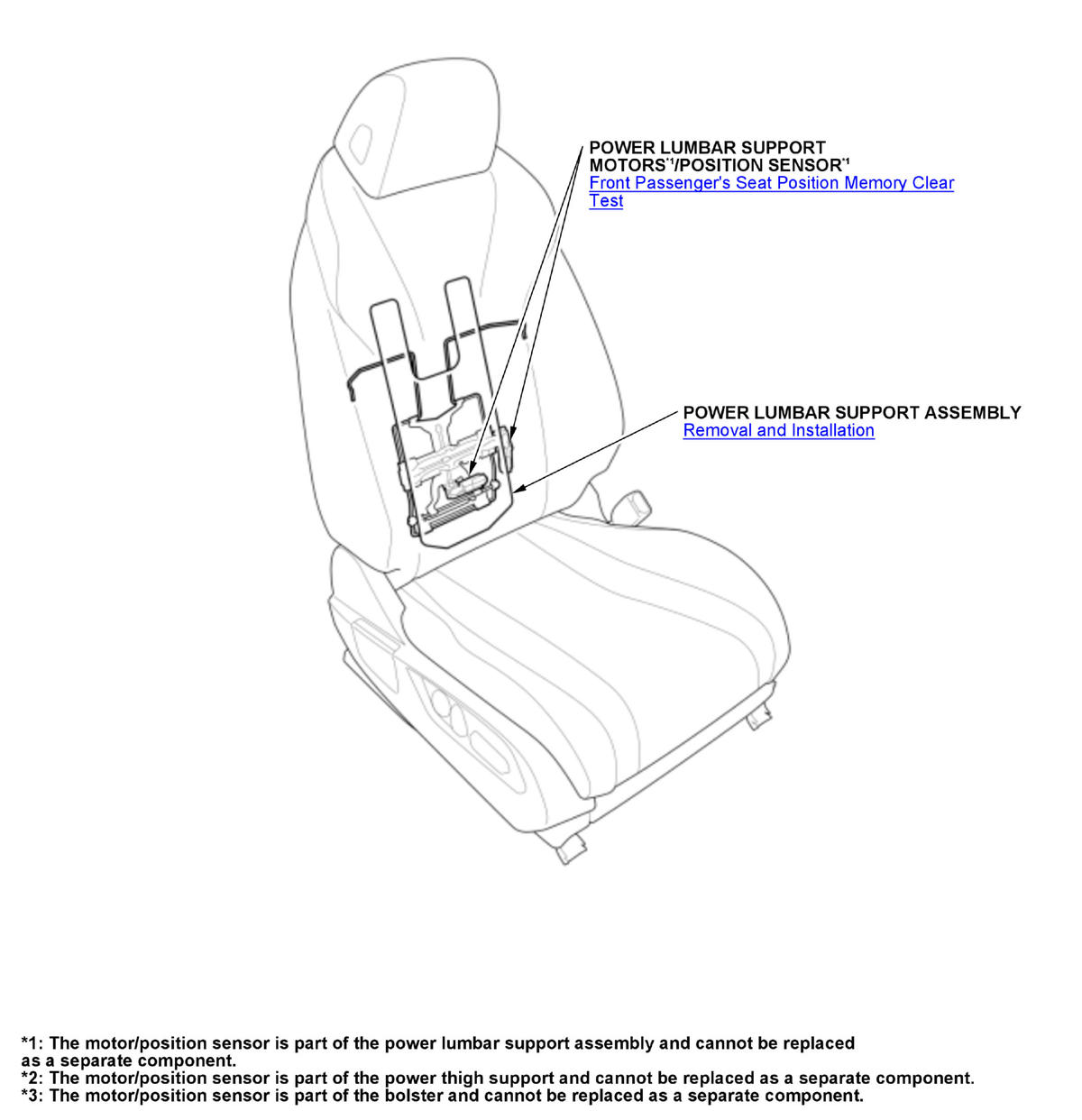

GHH524502Courtesy of HONDA, U.S.A., INC.

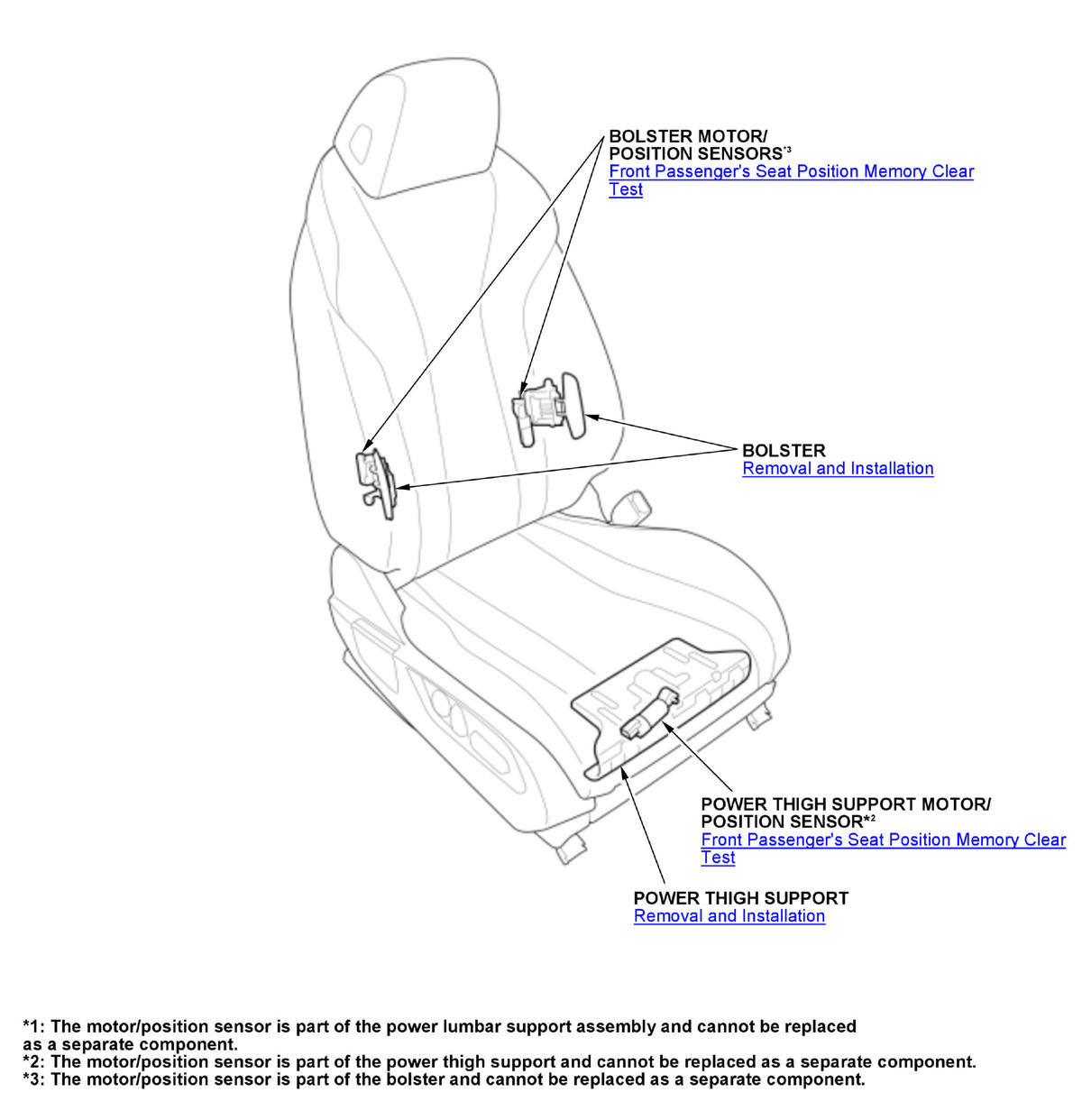

GHH524503Courtesy of HONDA, U.S.A., INC.

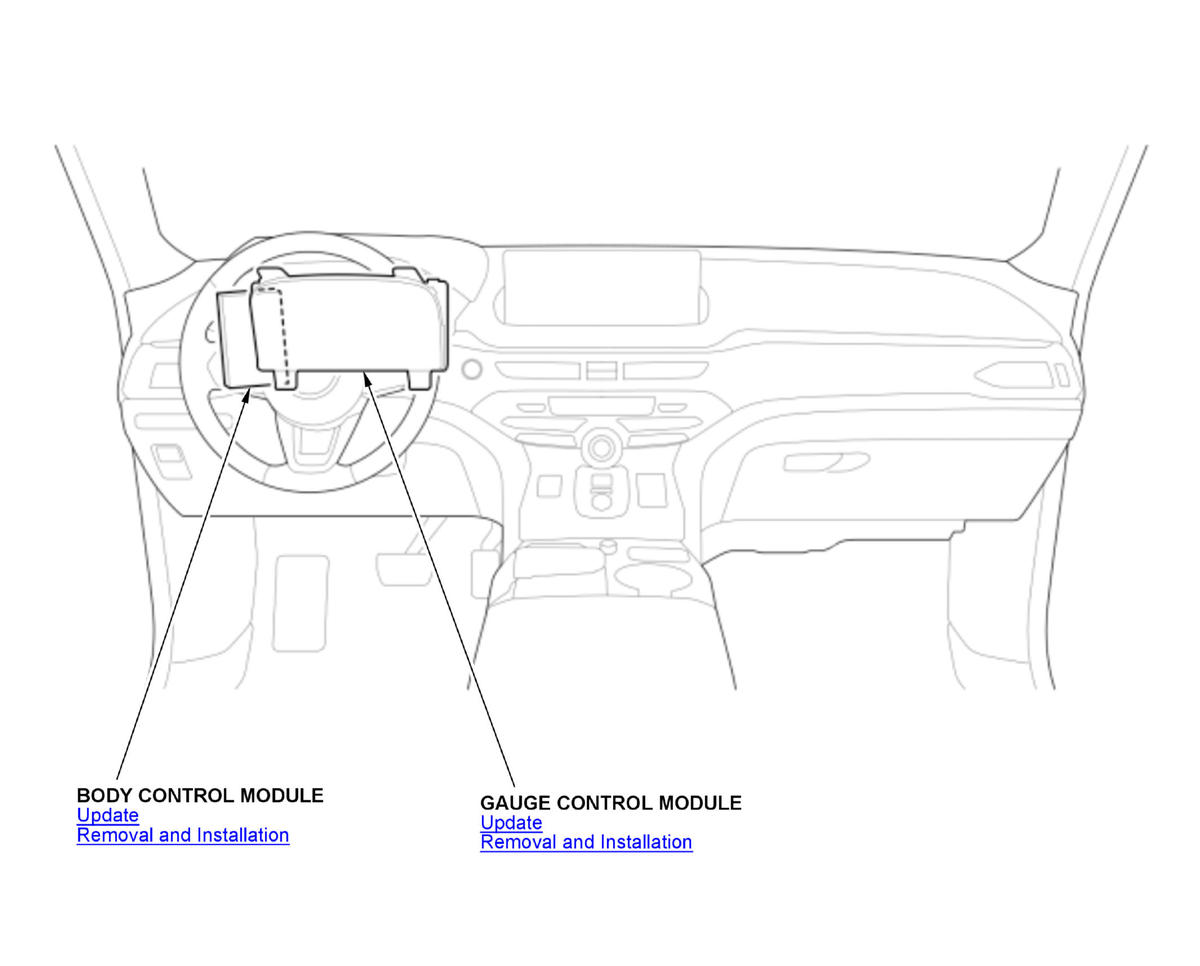

GHH524504Courtesy of HONDA, U.S.A., INC.
