Inspection Outline

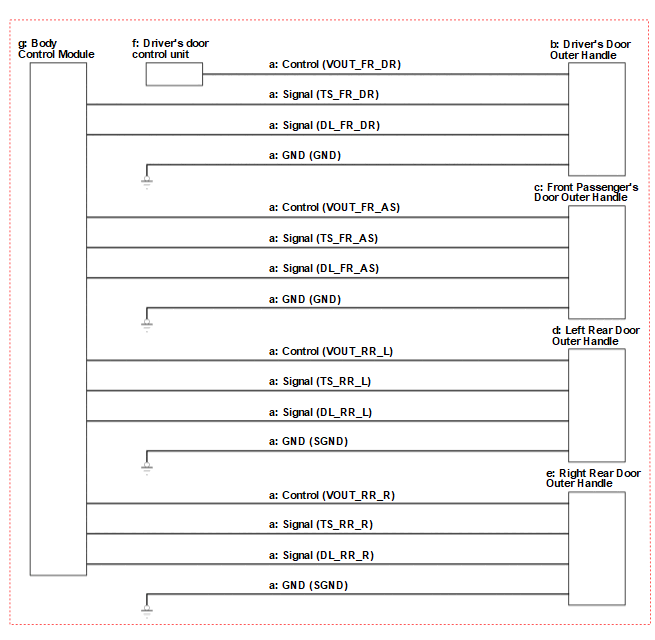

- The components to be tested are indicated by a dotted line.
- Troubleshoot any DTCs listed or indicated systems below first.
-
- -
Keyless Access System [Keyless Access Control Unit]: Go to the indicated DTC's troubleshooting .
- -
| Inspection Items | Work Items | |
|---|---|---|
| a | External Circuit | VOUT_FR_DR, TS_FR_DR, DL_FR_DR, GND Circuit Inspection |
| VOUT_FR_AS, TS_FR_AS, DL_FR_AS, GND Circuit Inspection | ||
| VOUT_RR_L, TS_RR_L, DL_RR_L, SGND Circuit Inspection | ||
| VOUT_RR_R, TS_RR_R, DL_RR_R, SGND Circuit Inspection | ||
| b | Driver's Door Outer Handle | Driver's Door Outer Handle Inspection |
| c | Front Passenger's Door Outer Handle | Front Passenger's Door Outer Handle Inspection |
| d | Left Rear Door Outer Handle | Left Rear Door Outer Handle Inspection |
| e | Right Rear Door Outer Handle | Right Rear Door Outer Handle Inspection |
| f | Driver's door control unit | Driver's Door Control Unit Inspection |
| g | Body Control Module | Body Control Module Inspection |
