Horn Test: Test

How to use this service information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

1. Horn - Test

   Preconditions

   • Horn Removed - Refer to: Front Bumper Area (2025) or Front Bumper Area (2022 2023 2024)

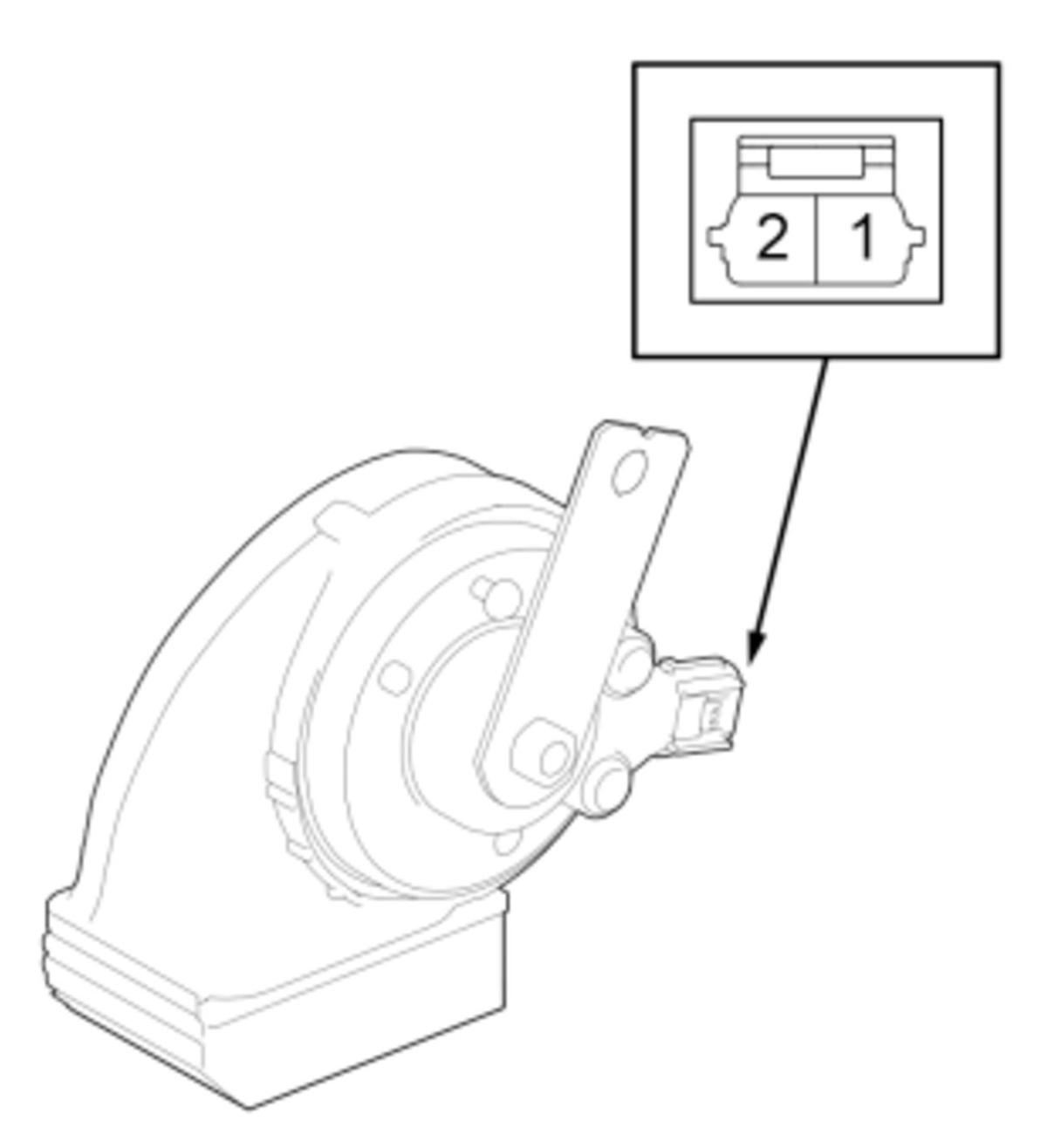

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

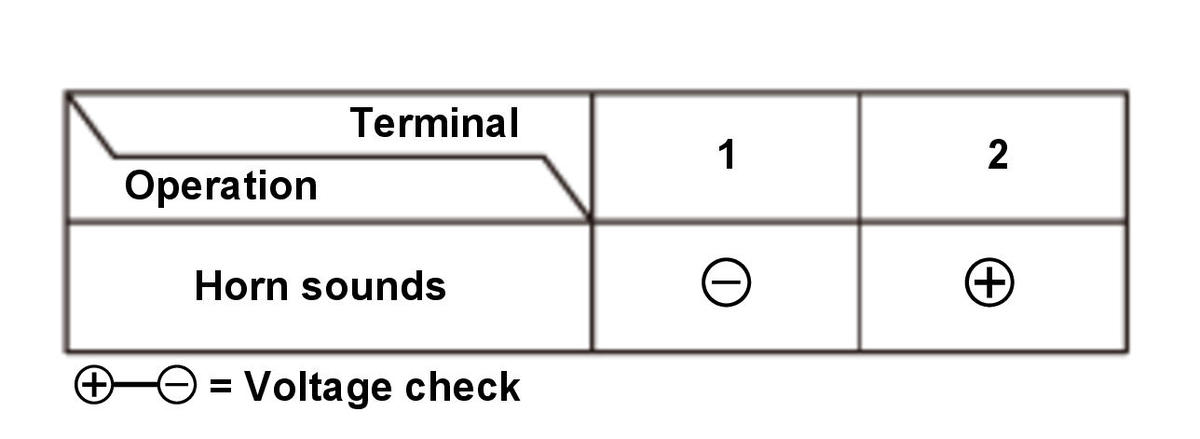

   • Check the horn according to the table. (Figure 1 and 2)

     NOTICE:  Apply 12 volt battery voltage only momentarily.

   Result

   • If the result is not as specified, replace the horn.
