Tailgate Lock/Tailgate Outer Handle Switch Test: Test

How to use this service information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

1. Tailgate Outer Handle Switch - Test

   Preconditions

   • License Plate Light Removed

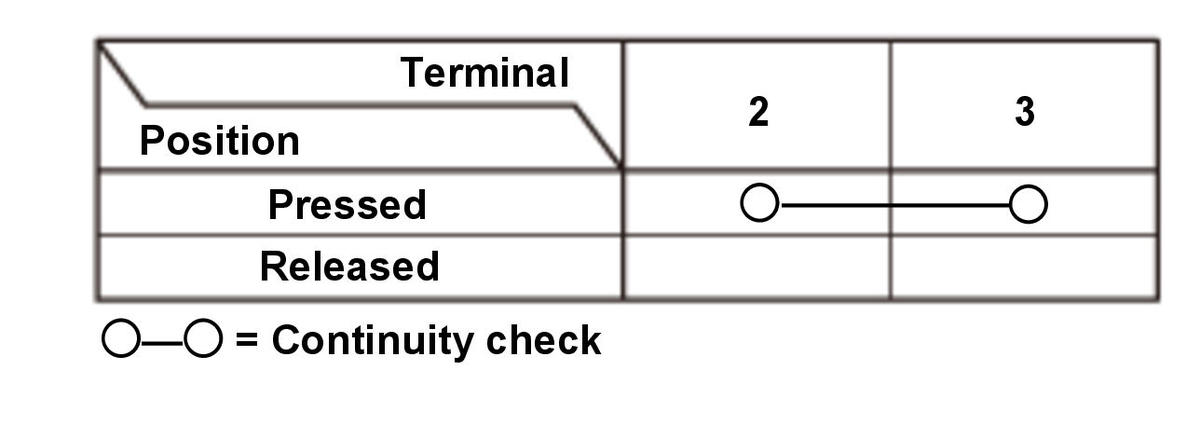

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

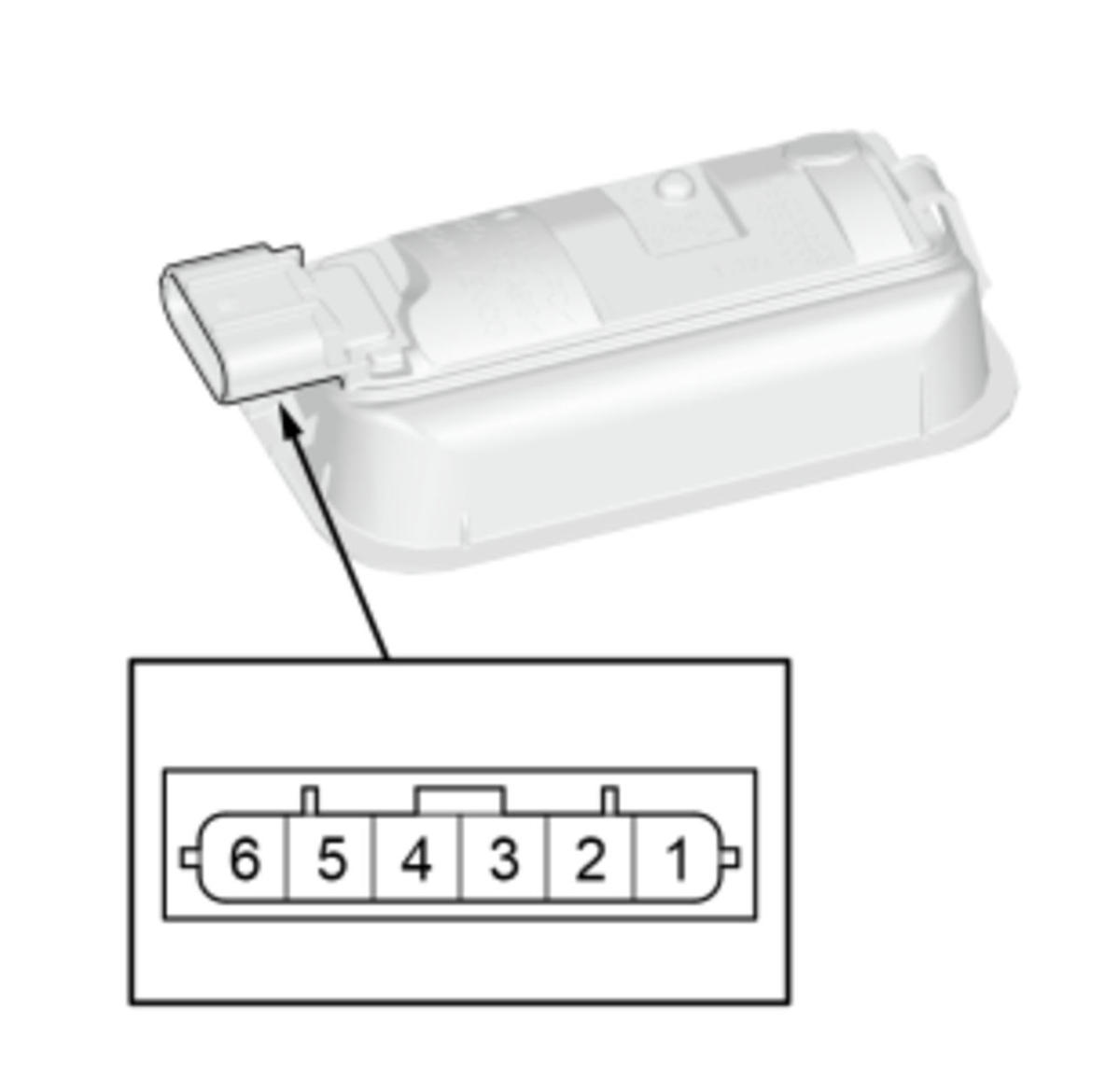

   Figure 2 (Tailgate Outer Handle Switch)

   Courtesy of HONDA, U.S.A., INC.

   Figure 3 (Tailgate Lock Switch)

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   • Check the switch according to the table. (Figure 1, 2 and 3)

   Result

   • If the result is not as specified, replace the license plate light.
