Hood Latch Switch Test: Test

How to use this service information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

1. Hood Latch Switch - Test

   Preconditions

   • Front Grille Cover Removed - Refer to: Front Bumper Area (2025) or Front Bumper Area (2022 2023 2024)

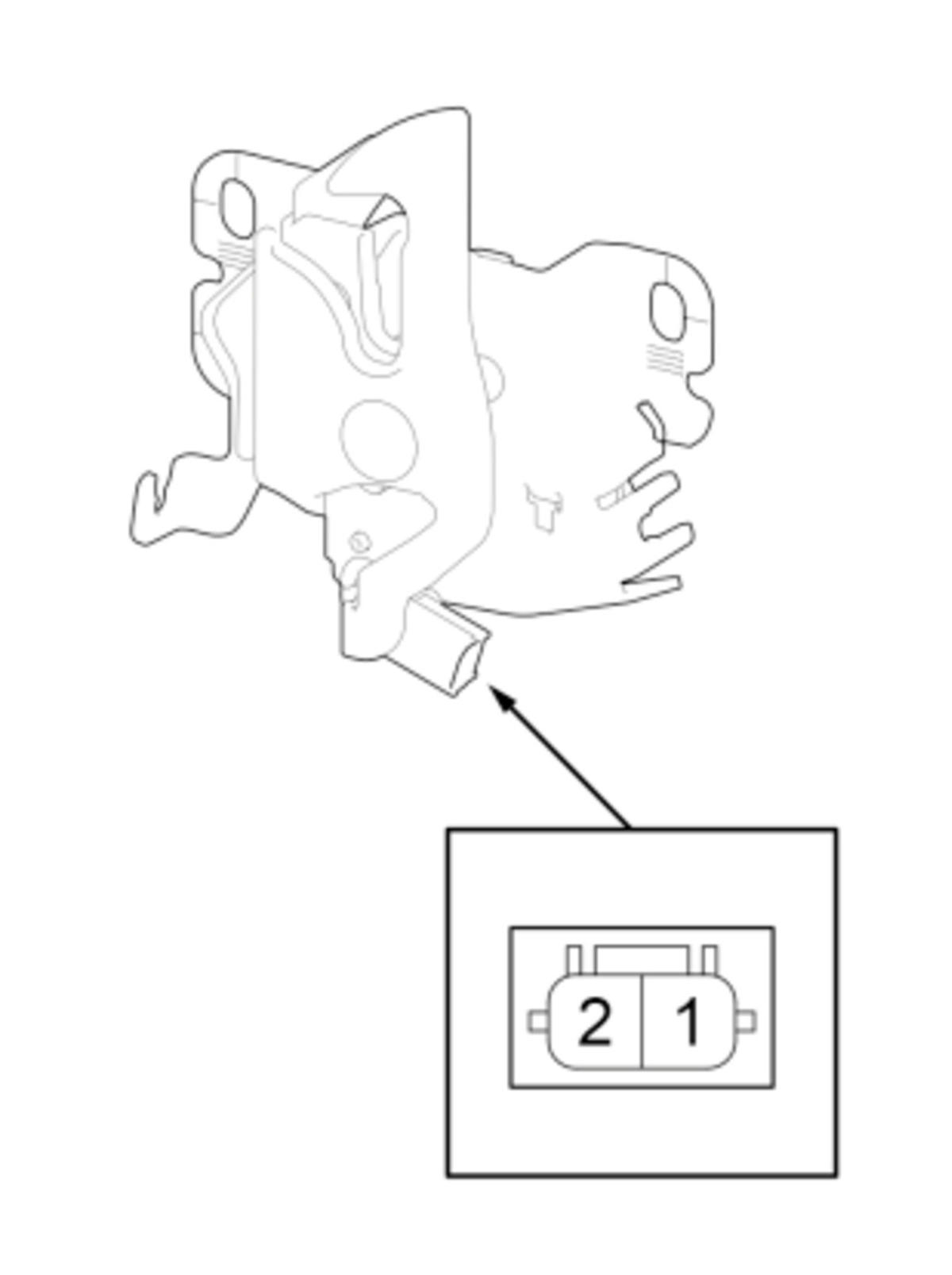

   Left (Figure 1)

   Courtesy of HONDA, U.S.A., INC.

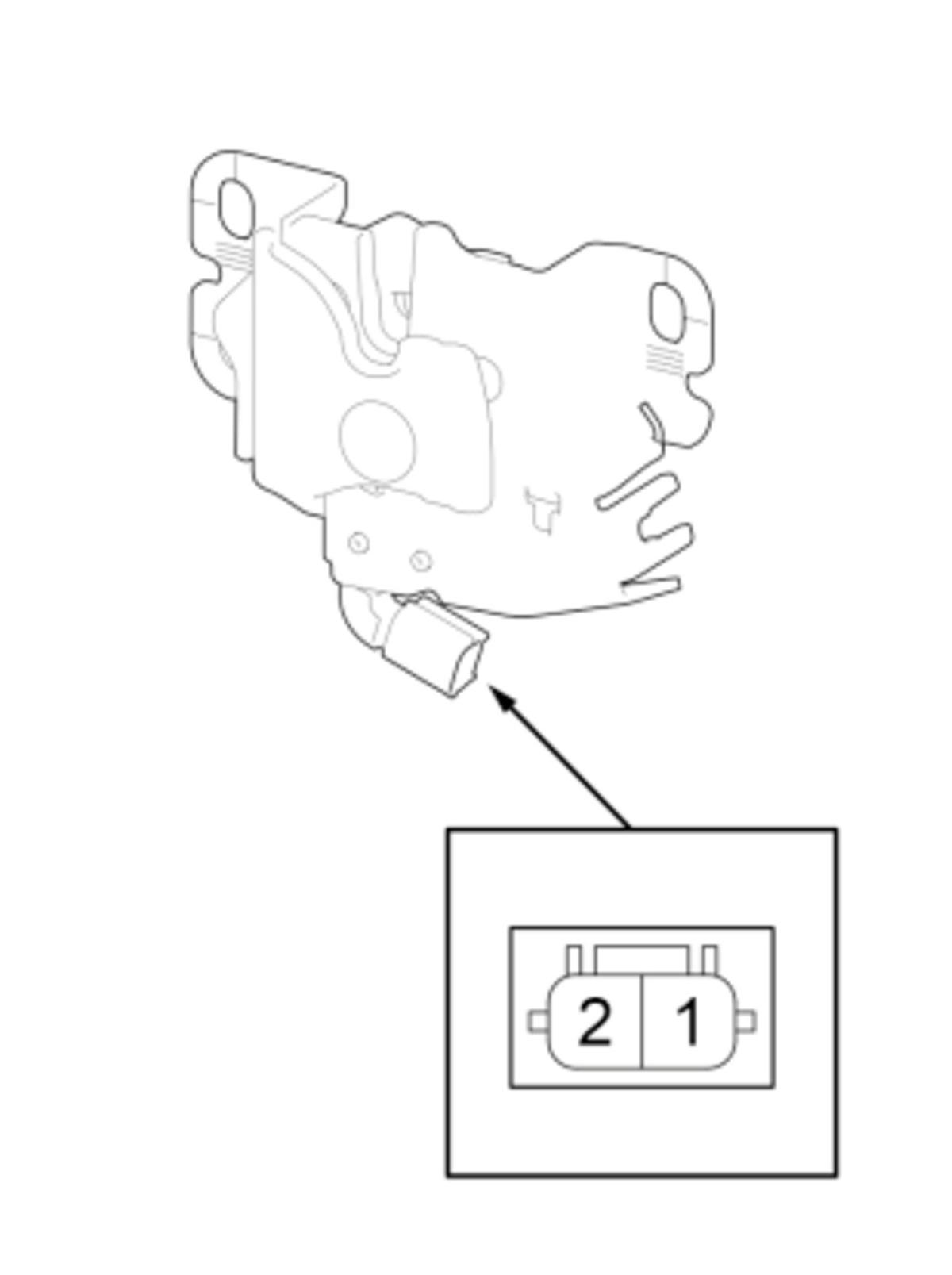

   Right (Figure 2)

   Courtesy of HONDA, U.S.A., INC.

   Left and Right (Figure 3)

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

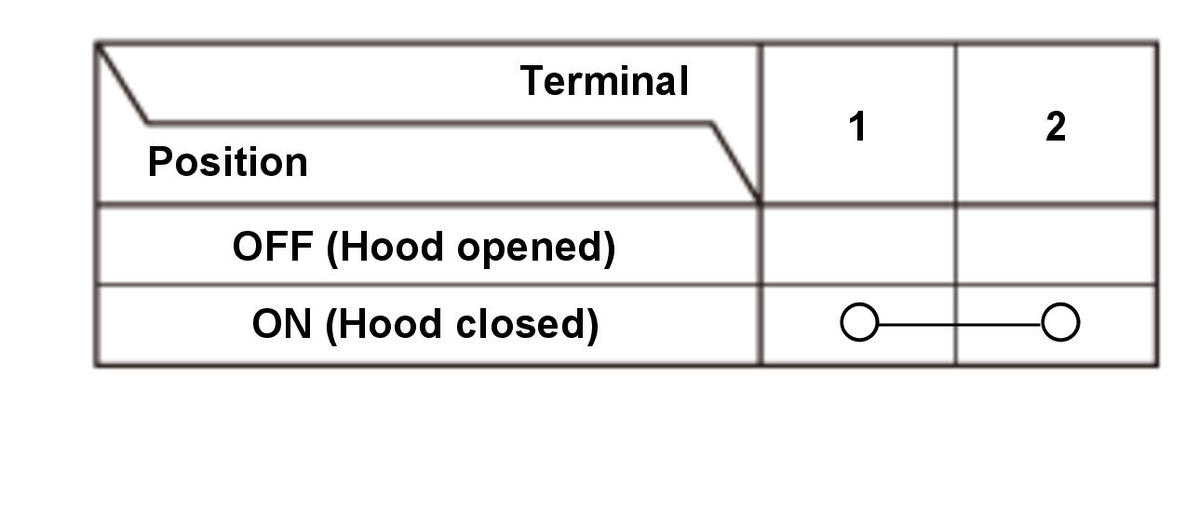

   • Check the switch according to the table. (Figure 1, 2, and 3)

   Result

   • If the result is not as specified, replace the hood latch .
