Panoramic Glass Roof/Power Sunshade Switch Test: Test

How to use this service information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

1. Panoramic Glass Roof/Power Sunshade Switch - Test

   Preconditions

   • Roof Module Removed

   Procedure/Specifications

   • Check the switch according to the table. (Figure 1, 2, and 3)

     NOTICE:

     • When an LED is located between terminals, check if the LED lights by connecting power and ground to the LED.
     • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).
     NOTE:

     The panoramic glass roof/power sunshade switch is built into the roof module.

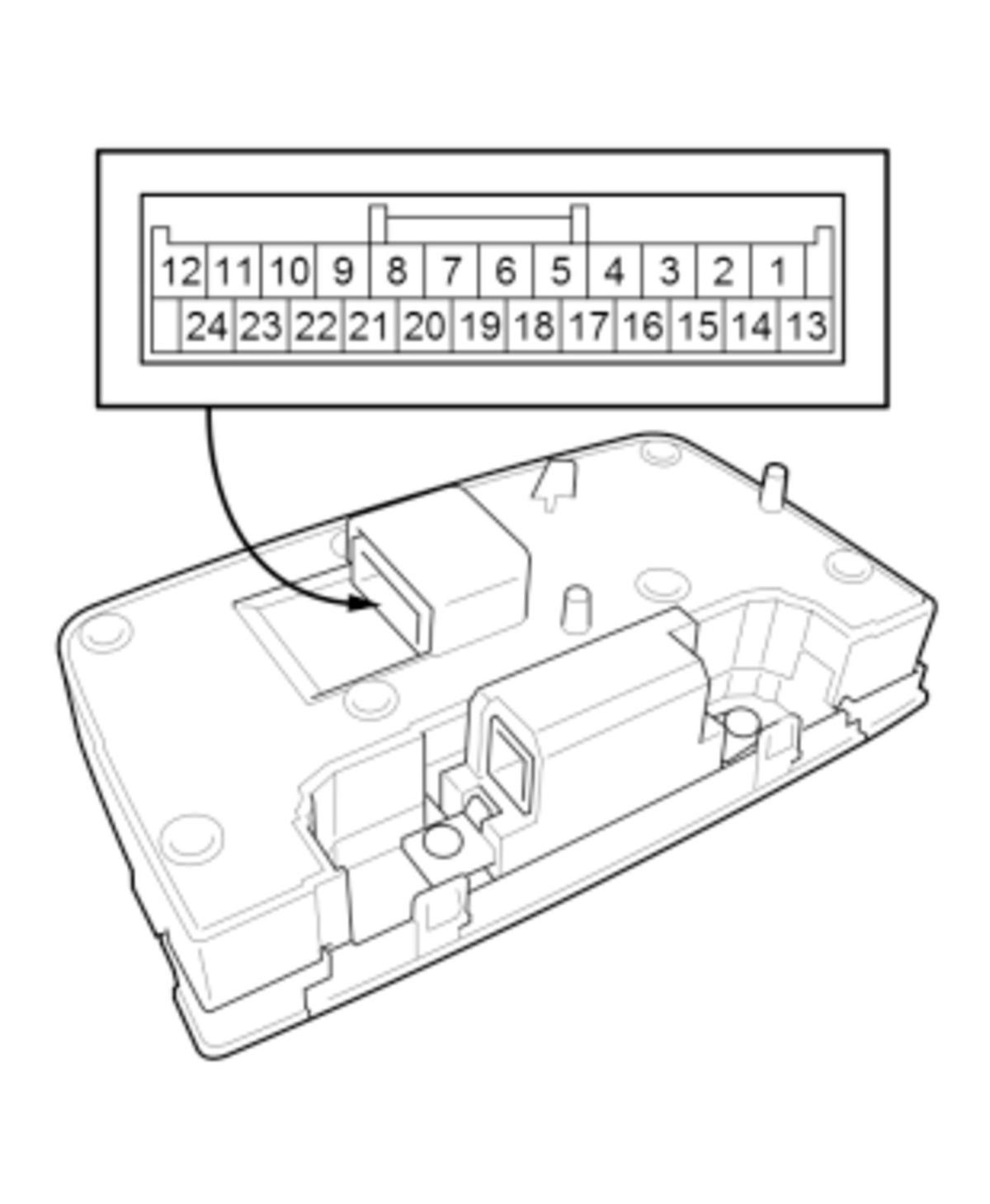

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

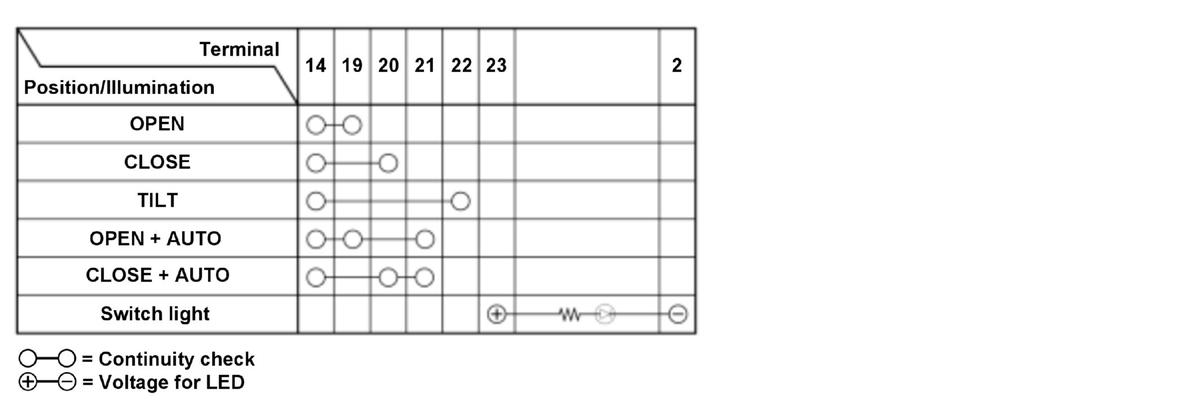

   Panoramic Glass Roof Switch (Figure 2)

   Courtesy of HONDA, U.S.A., INC.

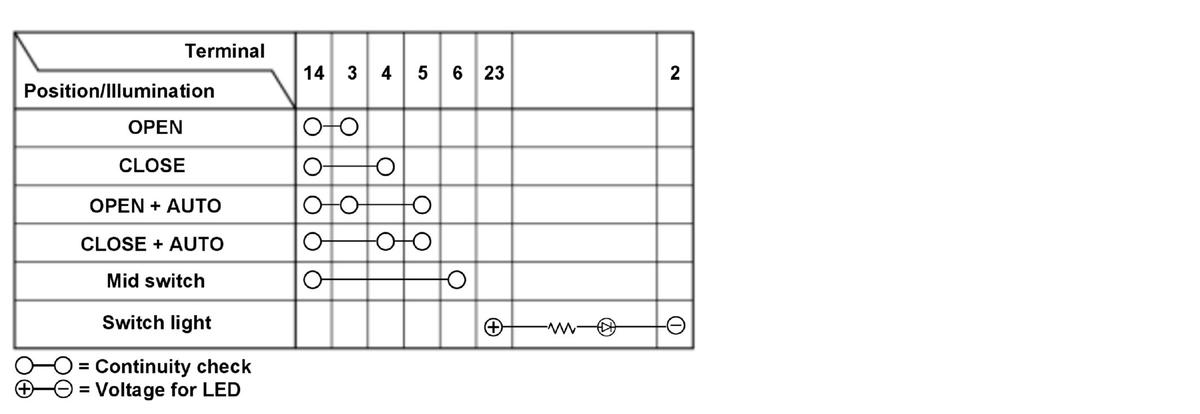

   Power Sunshade Switch (Figure 3)

   Courtesy of HONDA, U.S.A., INC.

   Result

   • If the result is not as specified, replace the roof module.
