Rear Individual Map Light Test: Test

How to use this service information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

Rear (Second Row Seat)

1. Rear Individual Map Light (Second Row Seat) - Test

   Preconditions

   • Rear Individual Map Light (Second Row Seat) Removed

   Procedure/Specifications

   • Check the light according to the table. (Figure 1 and 2)

     NOTICE:

     • When an LED is located between terminals, check if the LED lights up by connecting power and ground to the LED.
     • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

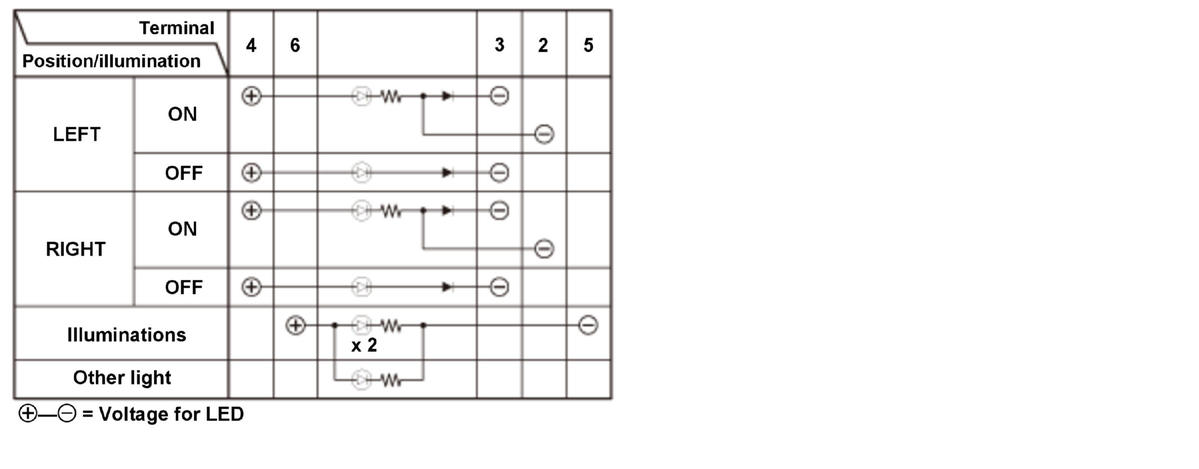

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

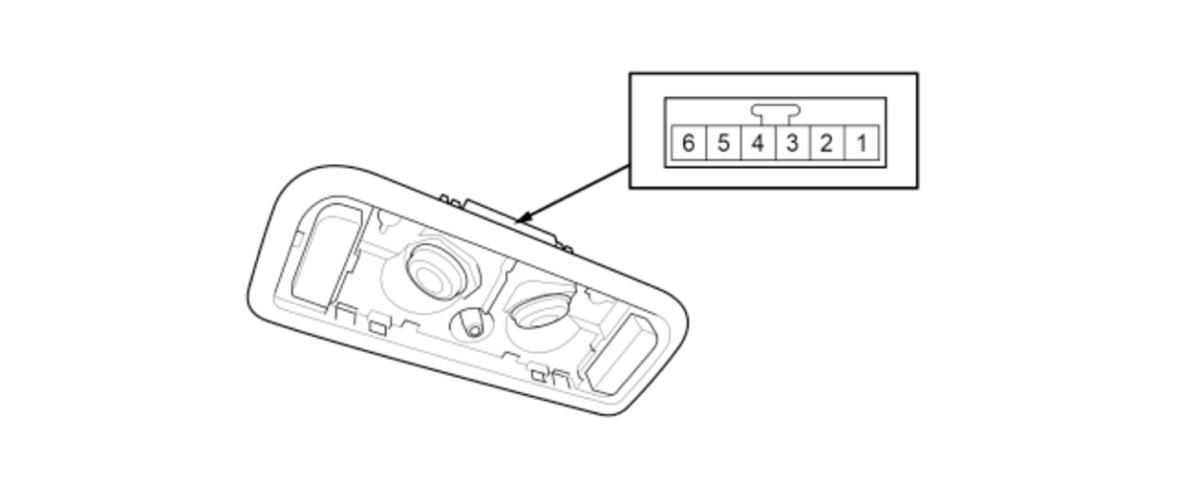

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Result

   • If the result is not as specified, replace the rear individual map light (Second row seat) .

   Rear (Third Row Seat)

2. Rear Individual Map Light (Third Row Seat) - Test

   Preconditions

   • Rear Individual Map Light (Third Row Seat) Removed

   Procedure/Specifications

   • Check the light according to the table. (Figure 1 and 2)

     NOTICE  :

     • When an LED is located between terminals, check if the LED lights up by connecting power and ground to the LED.
     • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

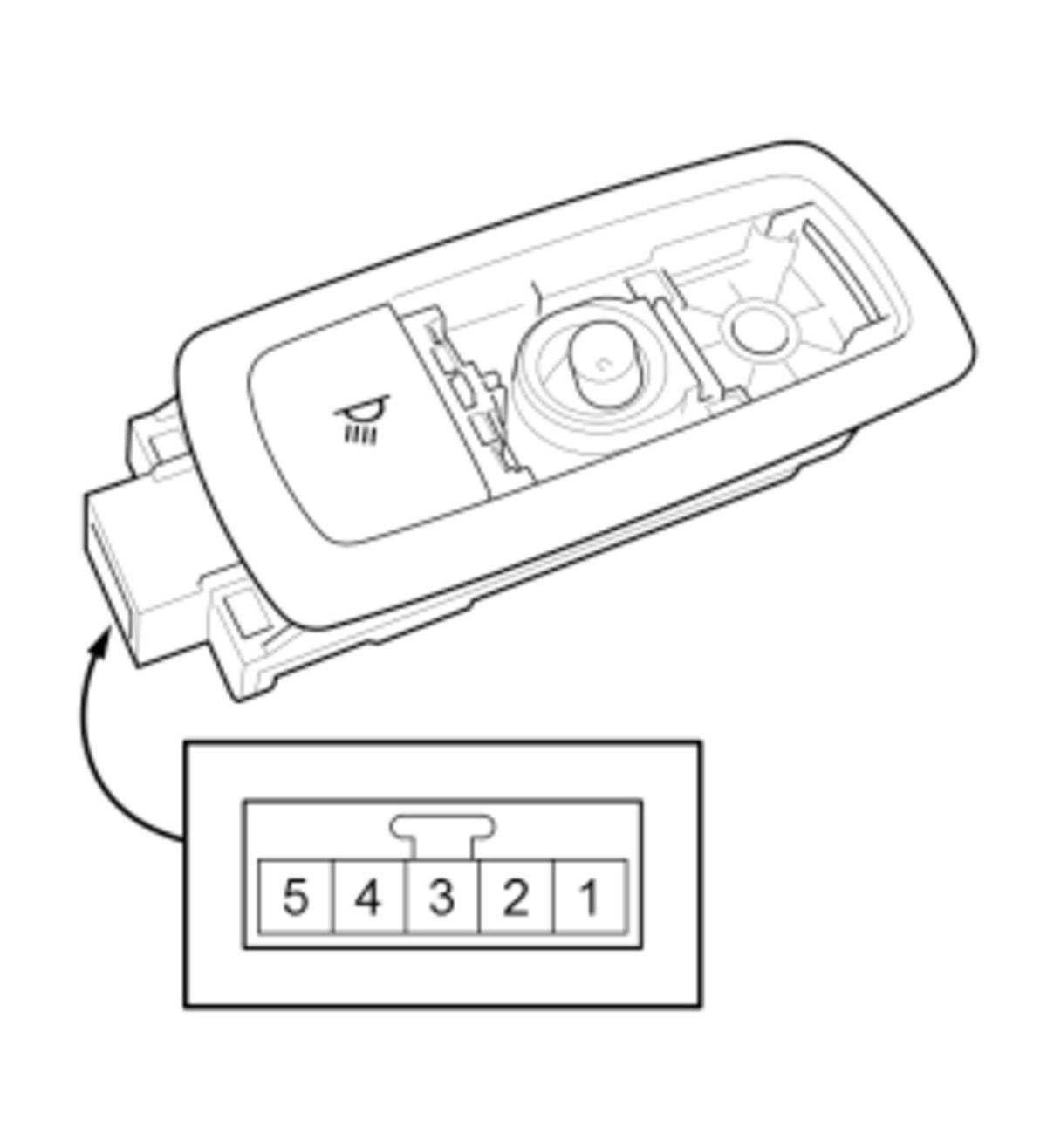

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

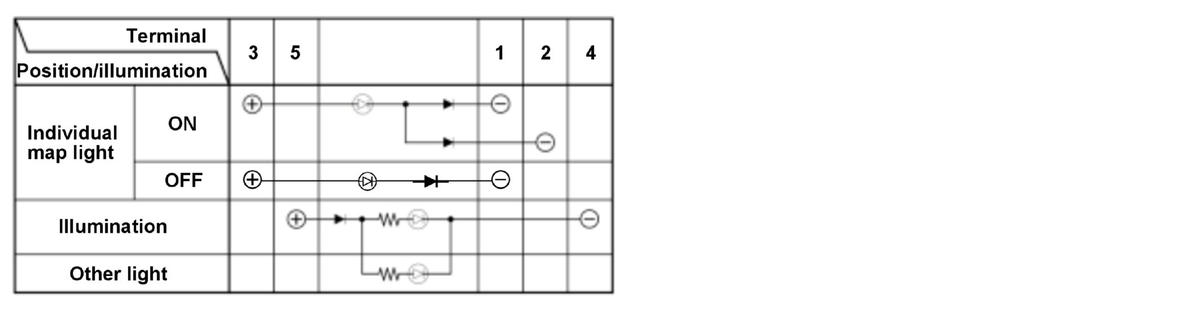

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Result

   • If the result is not as specified, replace the rear individual map light (Third row seat) .
