Mechanical Component Fastening Check
To check the torque value for the components listed in the tables below:
- For the set torque value (min-max): go over again with a torque wrench, setting the average rated value.
- For the set torque values plus angle (min-max + x°): loosen the fastener, tighten with a torque wrench, set the average rated value, and complete the operation by tightening to the angle x°.
MECHANICAL COMPONENT FASTENING CHECK
| |
Ref. |
Component |
Fixing |
dia |
Torque (daNm) |
Torque (Nm) |

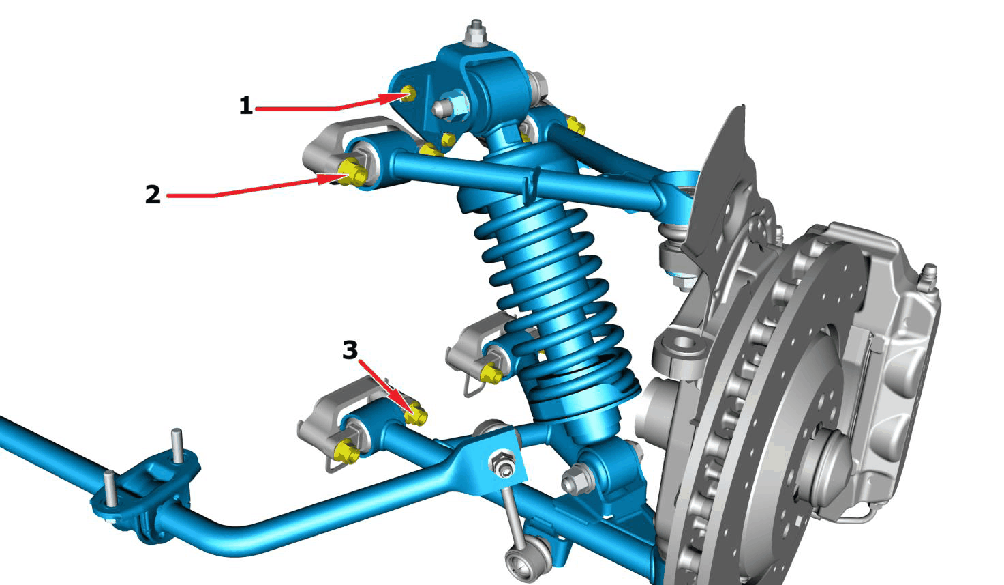

| Refer to Fig 1. |
1 |
Fastening of the shock absorber upper bracket to the body |
Nut |
M10 |
5.2 ÷ 5.8 + 45° |
52 - 58 + 45° |
| Refer to Fig 1. |
2 |
Fastening of the upper arms to the body |
Nut |
M10 |
5.2 ÷ 5.8 + 45° |
52 - 58 + 45° |
| Refer to Fig 1. |
3 |
Fastening of the lower arms to the body |
Nut |
M10 |
5.2 ÷ 5.8 + 45° |
52 - 58 + 45° |

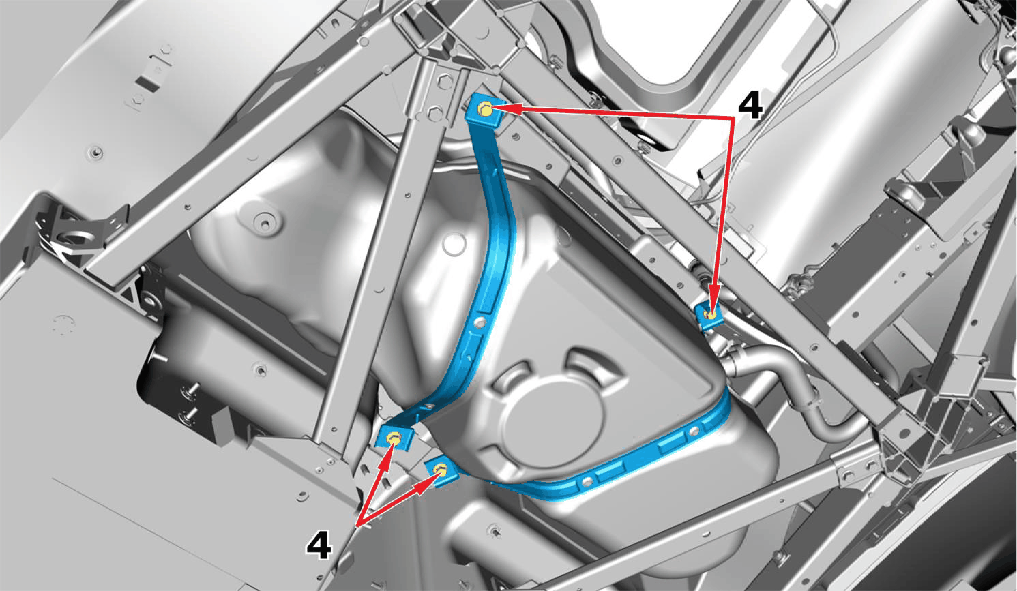

| Refer to Fig 2. |
4 |
Fastening of the fuel tank to the body |
Screw |
M8 |
3.2 ÷ 3.9 |
32 - 39 |
Courtesy of CHRYSLER GROUP, LLC
| |
Ref. |
Component |
Fixing |
dia |
Torque (daNm) |
Torque (Nm) |
| Refer to Fig 1. |
1 |
Fastening of the shock absorber upper bracket to the body |
Nut |
M10 |
5.2 ÷ 5.8 + 45° |
52 - 58 + 45° |
| Refer to Fig 1. |
2 |
Fastening of the upper arms to the body |
Nut |
M10 |
5.2 ÷ 5.8 + 45° |
52 - 58 + 45° |
| Refer to Fig 1. |
3 |
Fastening of the lower arms to the body |
Nut |
M10 |
5.2 ÷ 5.8 + 45° |
52 - 58 + 45° |
Courtesy of CHRYSLER GROUP, LLC
| |
Ref. |
Component |
Fixing |
dia |
Torque (daNm) |
Torque (Nm) |
| Refer to Fig 2. |
4 |
Fastening of the fuel tank to the body |
Screw |
M8 |
3.2 ÷ 3.9 |
32 - 39 |
