All Models (Exc. Pacer): Caster

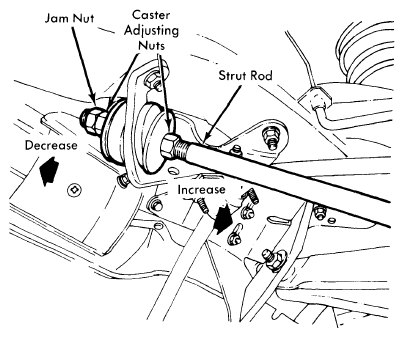

Adjust by turning adjusting nuts on strut rod (see Figure). Turning nuts on rod will move lower control arm forward or backward for desired caster angle. Tighten adjusting nuts to 65 ft. lbs. after adjustment and jam nut to 75 ft. lbs.
