Ground Circuit Check

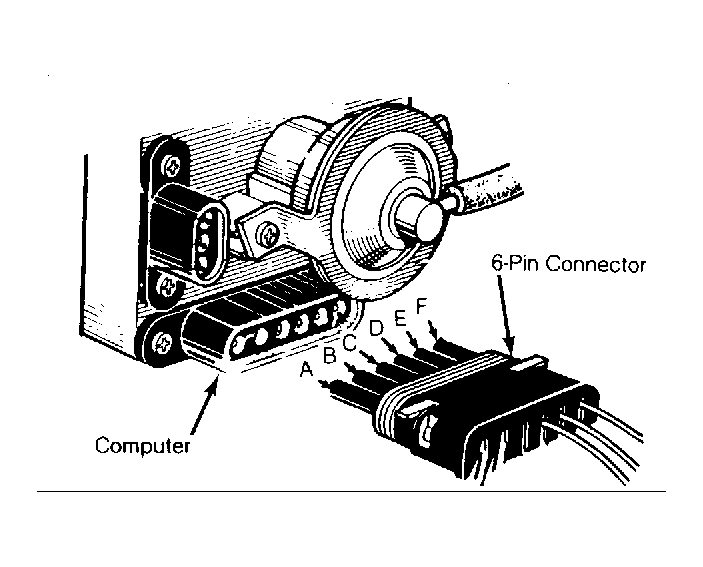

- Disconnect 6-pin connector from computer. Turn ignition off. Connect ohmmeter leads to pin "E" of harness connector and to vehicle ground. See Figure.
- Reading should be 0 (zero) ohms. If so, proceed to next check. If not, check computer ground wire for breaks, cuts or corrosion.
