Wiring Diagrams

NOTE: In Fig 1 , Pin 13 of the ECU is a sensor ground, not a body ground.

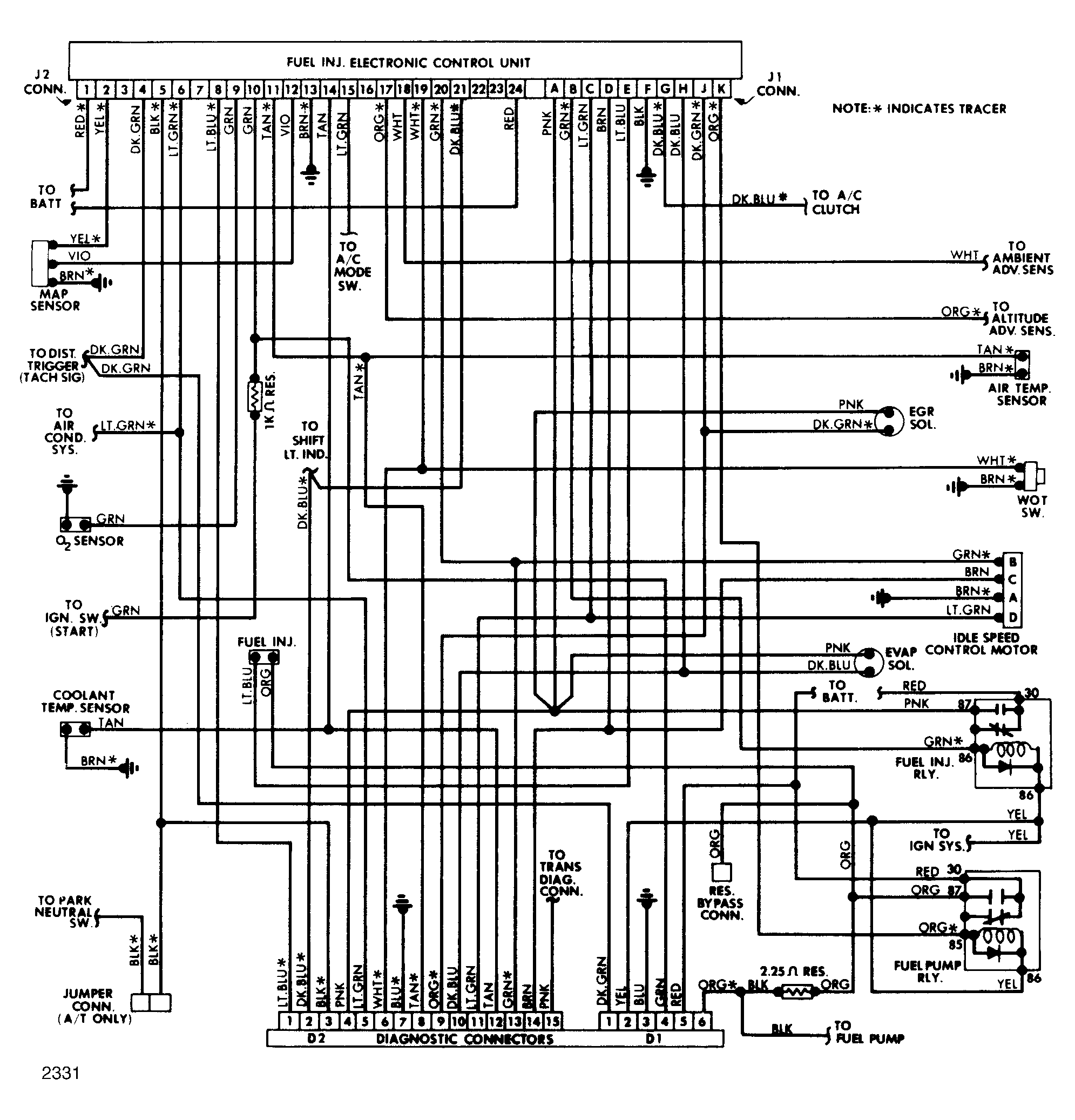

Fig 1: Alliance and Encore TBI System Wiring Diagram
