1.7L TBI System
>>
System Diagnosis
>>
Chart 1
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Chart 1

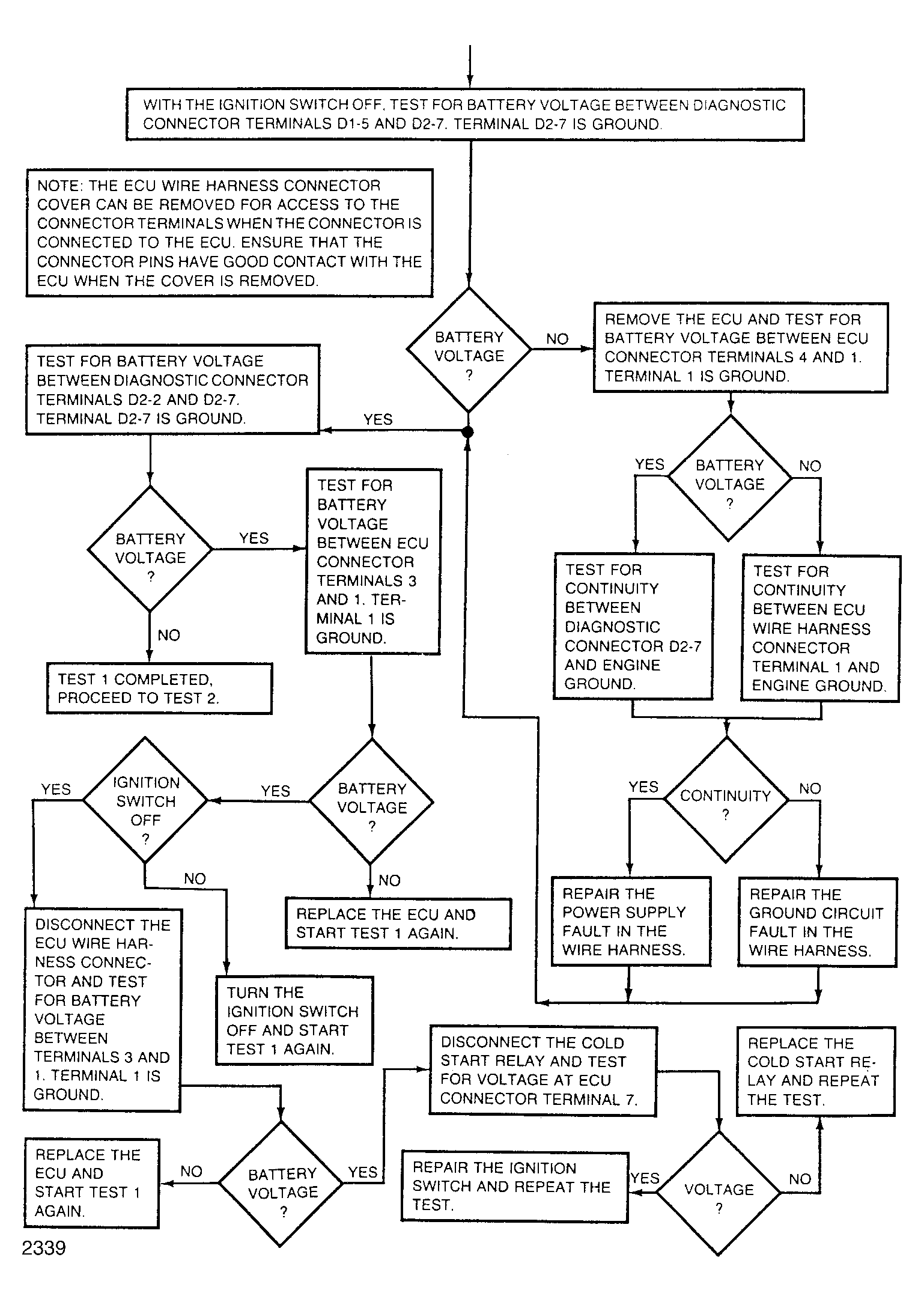

Fig 1: Chart 1 - Ignition Switch Off
