Chart 2

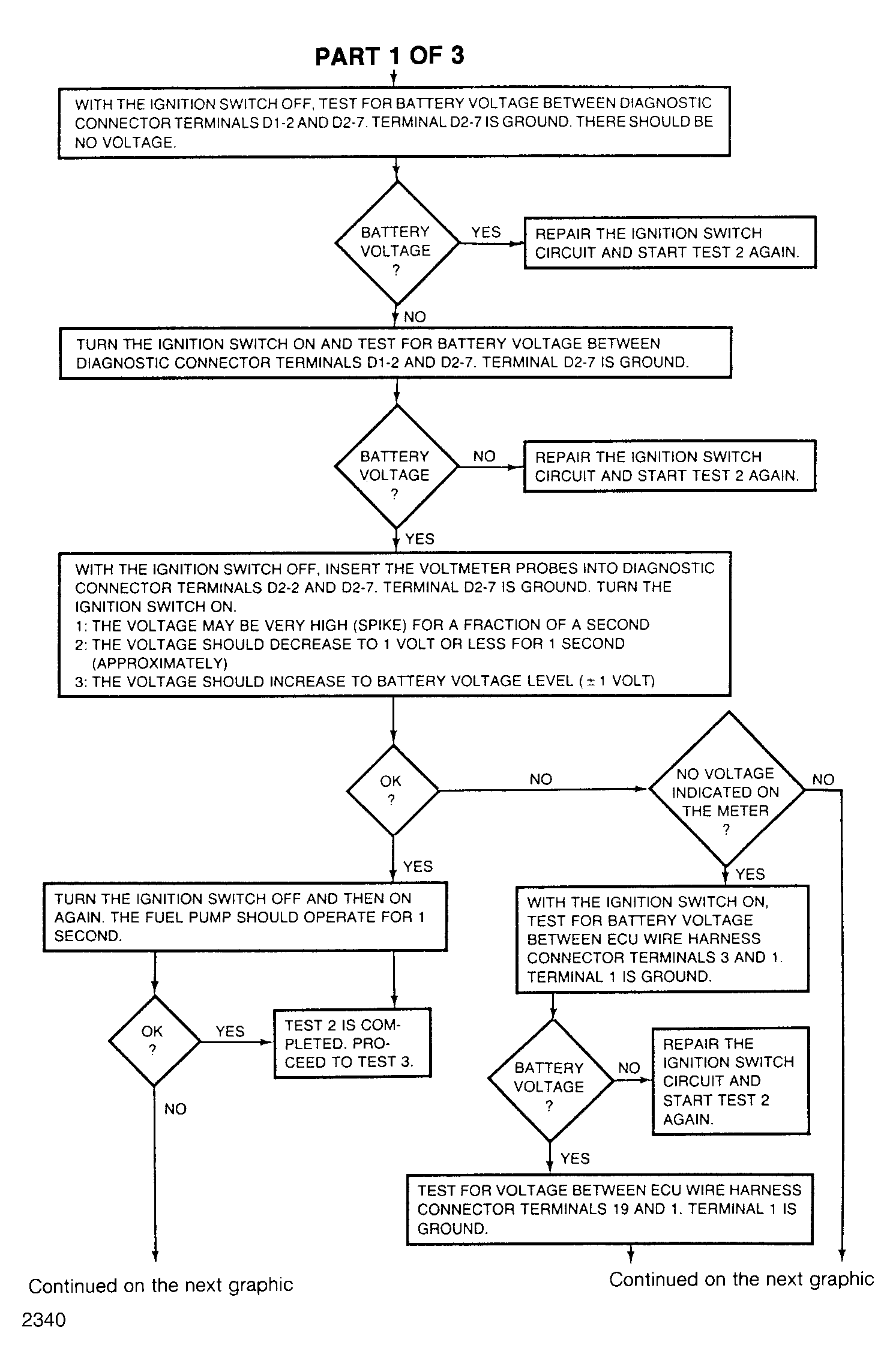

Fig 1: Chart 2-A - Ignition Switch On

G2340

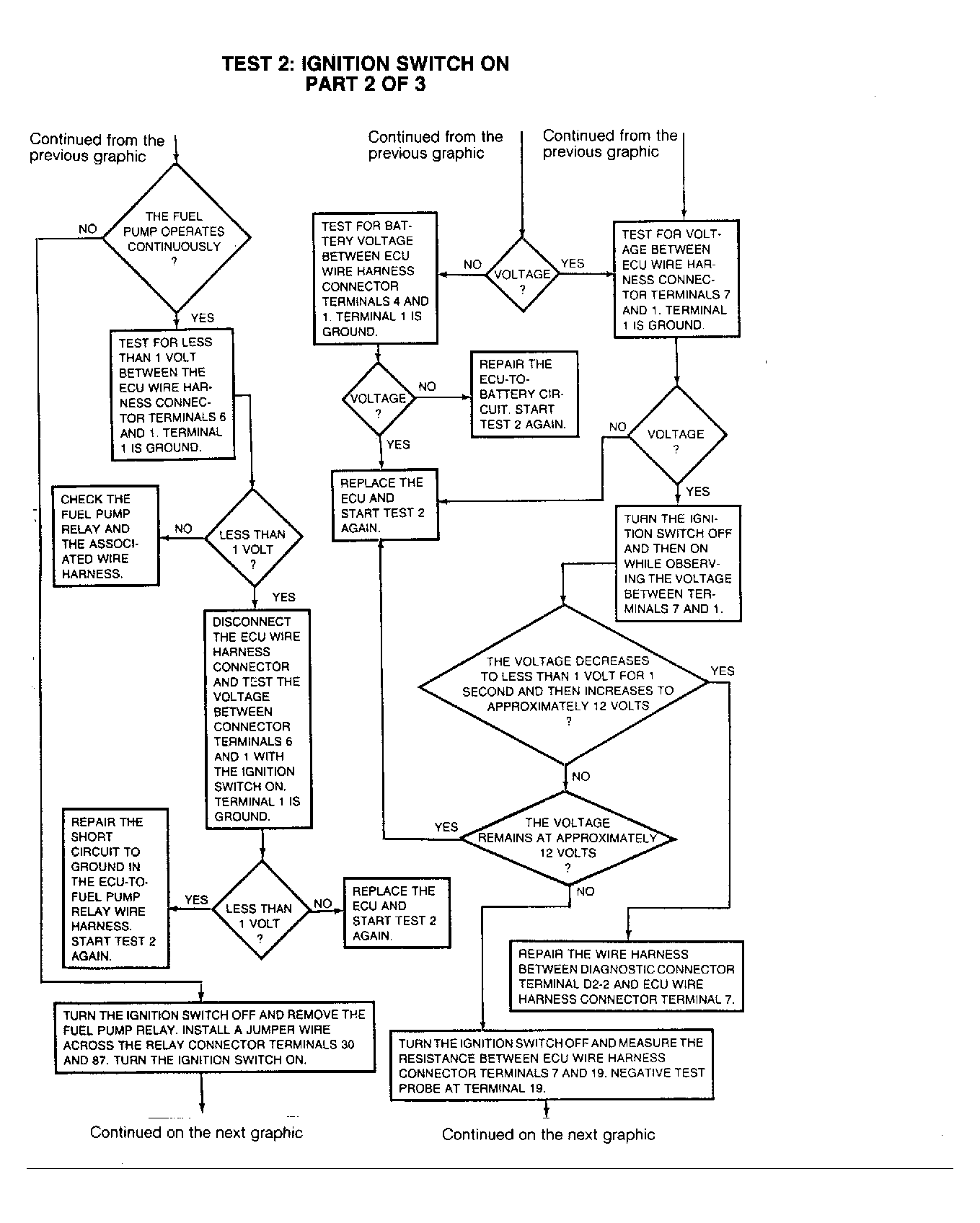

Fig 2: Chart 2-B - Ignition Switch On (Cont.)

G3939

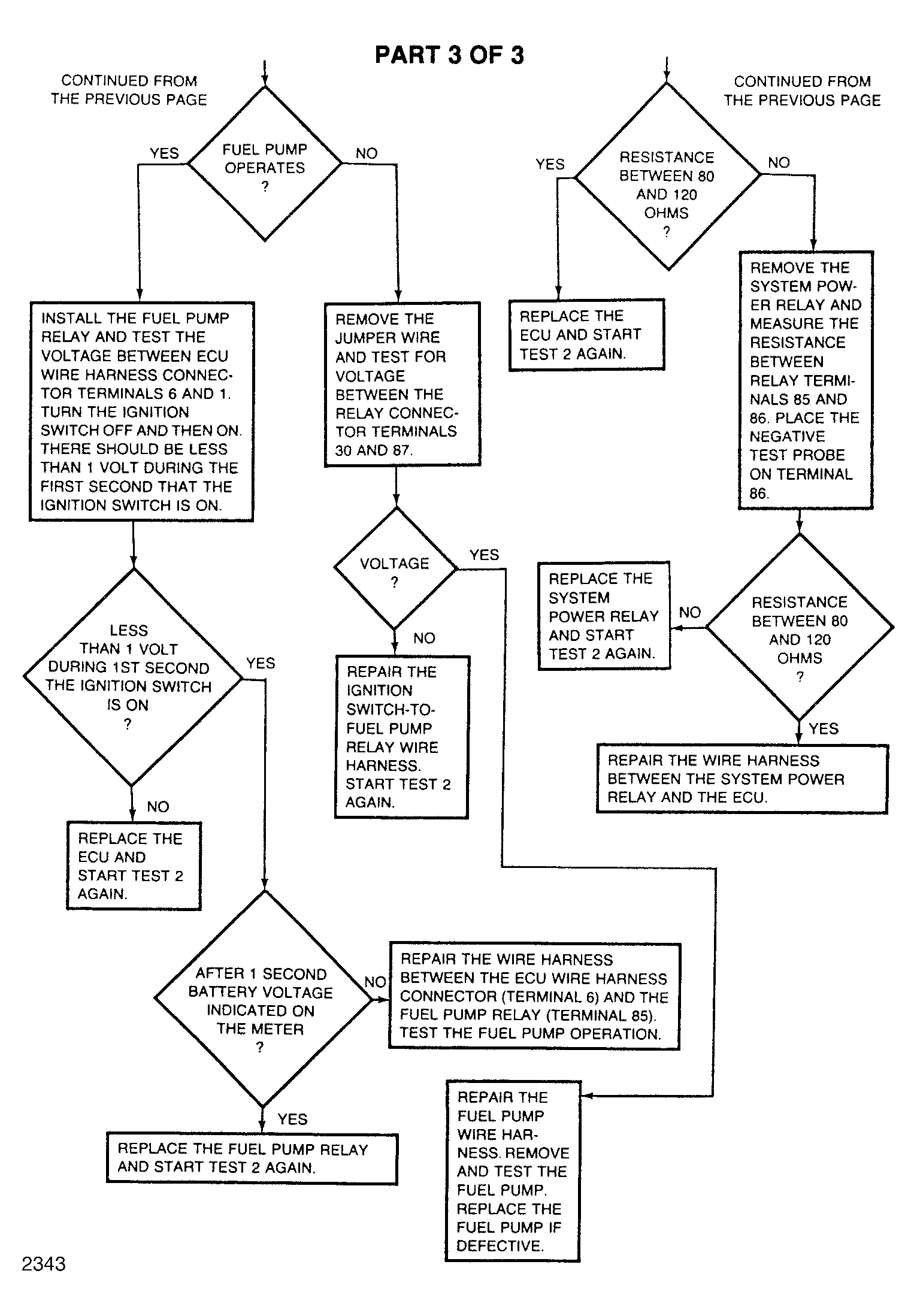

Fig 3: Chart 2-C - Ignition Switch On (Cont.)

G2343
