BOSCH Electronic Ignition: Overhaul: Reassembly

  1. To reassemble, reverse disassembly procedure. Place a light coat of grease on centrifugal weights and a couple of drops of oil on felt wick in center of shaft. Do not get grease or oil on pick-up coil and stator assembly.
  2. When attaching stator to plate, connector pins should be positioned opposite and above attachment ear for carrier plate. Install lock pin with lift facing ridge on distributor shaft. Slot on trigger wheel should be opposite ridge on distributor shaft.

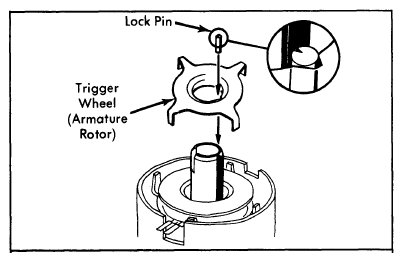

    Fig 1: Installing Trigger Wheel (Armature) & Lock Pin
    G09350933Courtesy of NOT AVAILABLE

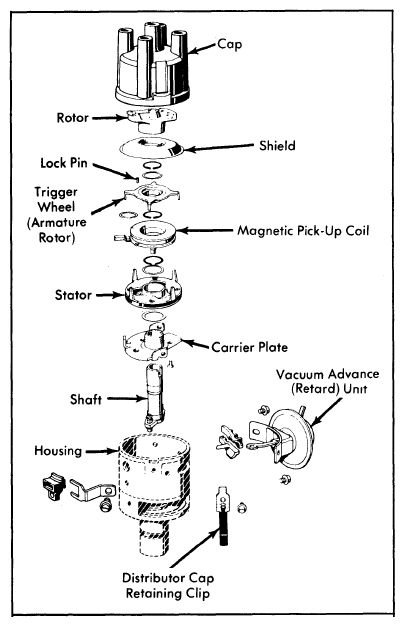

    Fig 2: Exploded View of Bosch Breakerless Distributor
    G09350934Courtesy of NOT AVAILABLE
