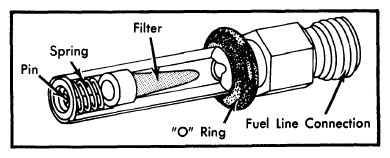

Injector Nozzles
The injectors in the CIS system open at a predetermined pressure. Fuel is always present in the lines between the fuel distributor and the injectors, to ensure good starting. As pressure in the distributor increases (when the engine is started), the valves open and spray constantly. The amount of fuel injected will be determined by the position of the control plunger and control pressure.
