Accelerator Cable

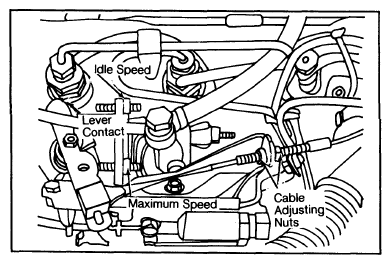

Place accelerator pedal in full throttle position. Adjust cable with adjusting nuts until pump lever freely contacts stop. See Fig 1. Be sure ball pin on pump lever is pointing upward and touching end of elongated hole. Accelerator cable should be attached at upper hole in bracket.
