Tachometer Adapter

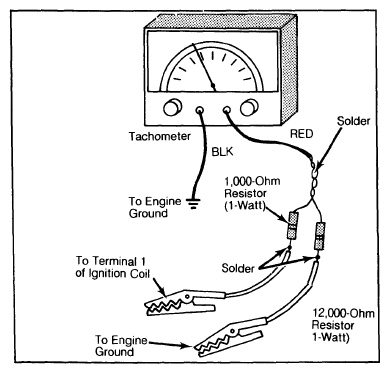

- An adapter is necessary when attaching a conventional tachometer into the Hall Effect electronic ignition system. See Fig 1. Tachometer Black lead is attached to engine ground. Attach adapter to tachometer Red lead.
Resistor connections should be soldered securely.
- Adapter is formed from 2 wires soldered together at one end. One wire (leading to coil terminal 1) must be equipped with a 1000-ohm, 1-watt resistor.
- The second wire (leading to engine ground) must be equipped with a 12, 000-ohm, 1-watt resistor. Both resistors should be soldered to attaching wires.
