Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| A/C Superheat Fuse | On right side of radiator shroud. |
| Blower Motor Speed Resistors | In left half of heater housing. |
| Cruise Control Induction Pickup | On back of speedometer. |

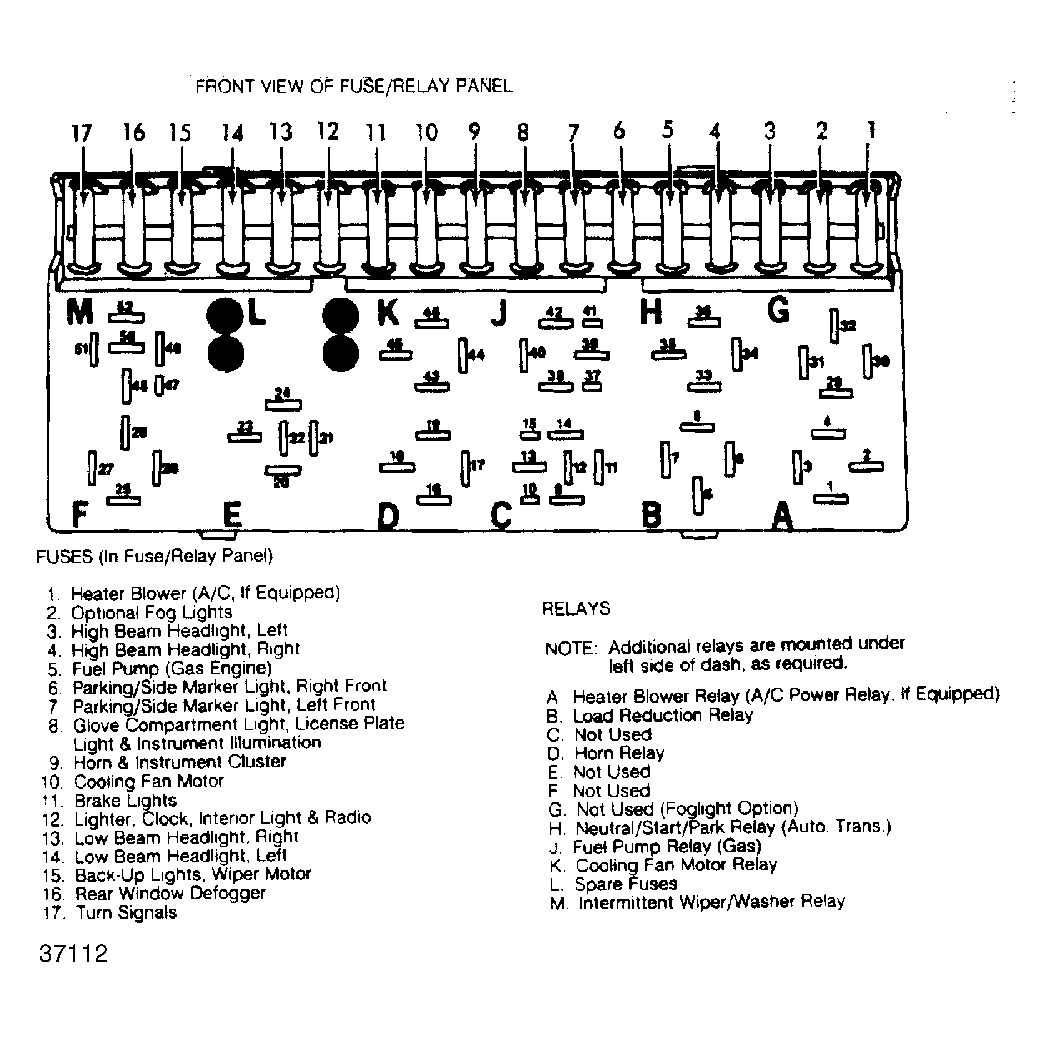

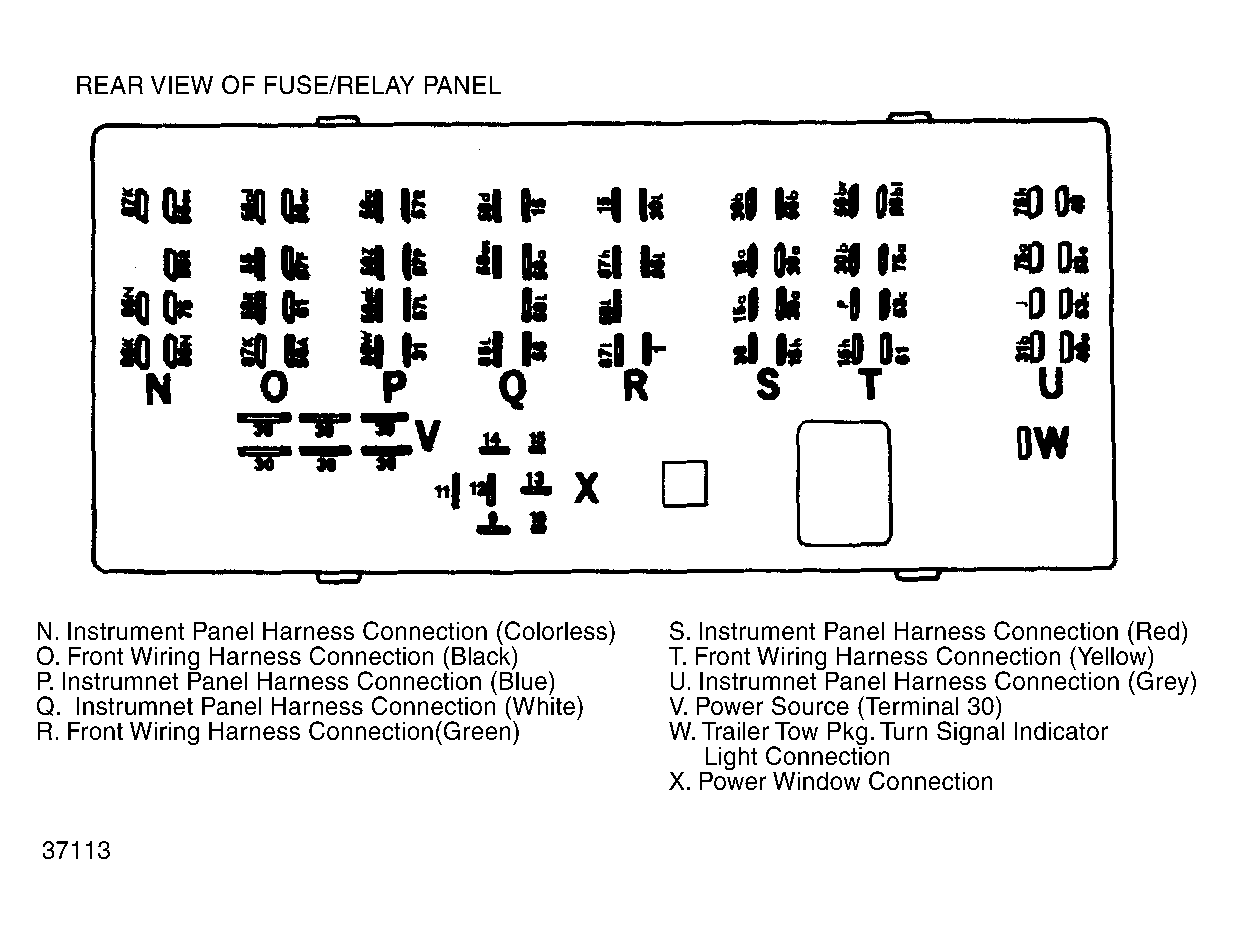

| Fuse/Relay Panel | Left side of tray area in engine compartment. See Figure & Figure . |
| Oxygen Sensor Mileage Counter | Under left side of dash against firewall. |
