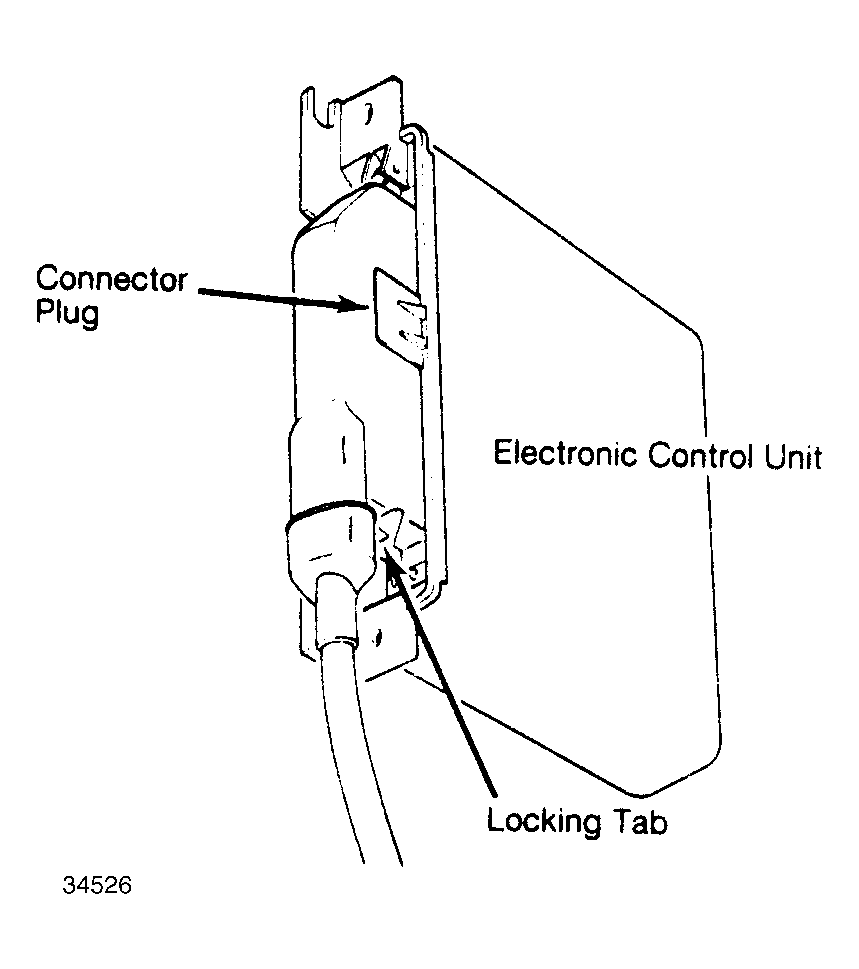

Electronic Control Unit & Frequency Valve
The electronic control unit is designed to continually correct air/fuel mixture, based on signals from the oxygen sensor. It sends a series of pulses to a frequency valve. The frequency valve is located in a fuel line that connects the upper and lower halves of the fuel distributor. See Fig 1 .
When the frequency valve is closed, fuel pressure to the injectors is determined by a spring in each pressure regulating valve. When the frequency valve is open, fuel pressure decreases in the lower half of the fuel distributor, the tension on the spring is relieved, and more fuel is directed to the cylinders.
The electronic control unit opens and closes the frequency valve many times a second to ensure a smooth regulation of fuel pressure and mixture. When the engine is cold, the ratio of valve open to valve closed is about 50%.
After the engine warms up, the voltage produced by the oxygen sensor determines the amount of time the frequency valve must be open or closed. This ratio can be read with a special tester or with a dwell meter (on most models). A dwell reading of 45° indicates a ratio of 50% open, 50% closed.
