Injection Nozzles: Installation

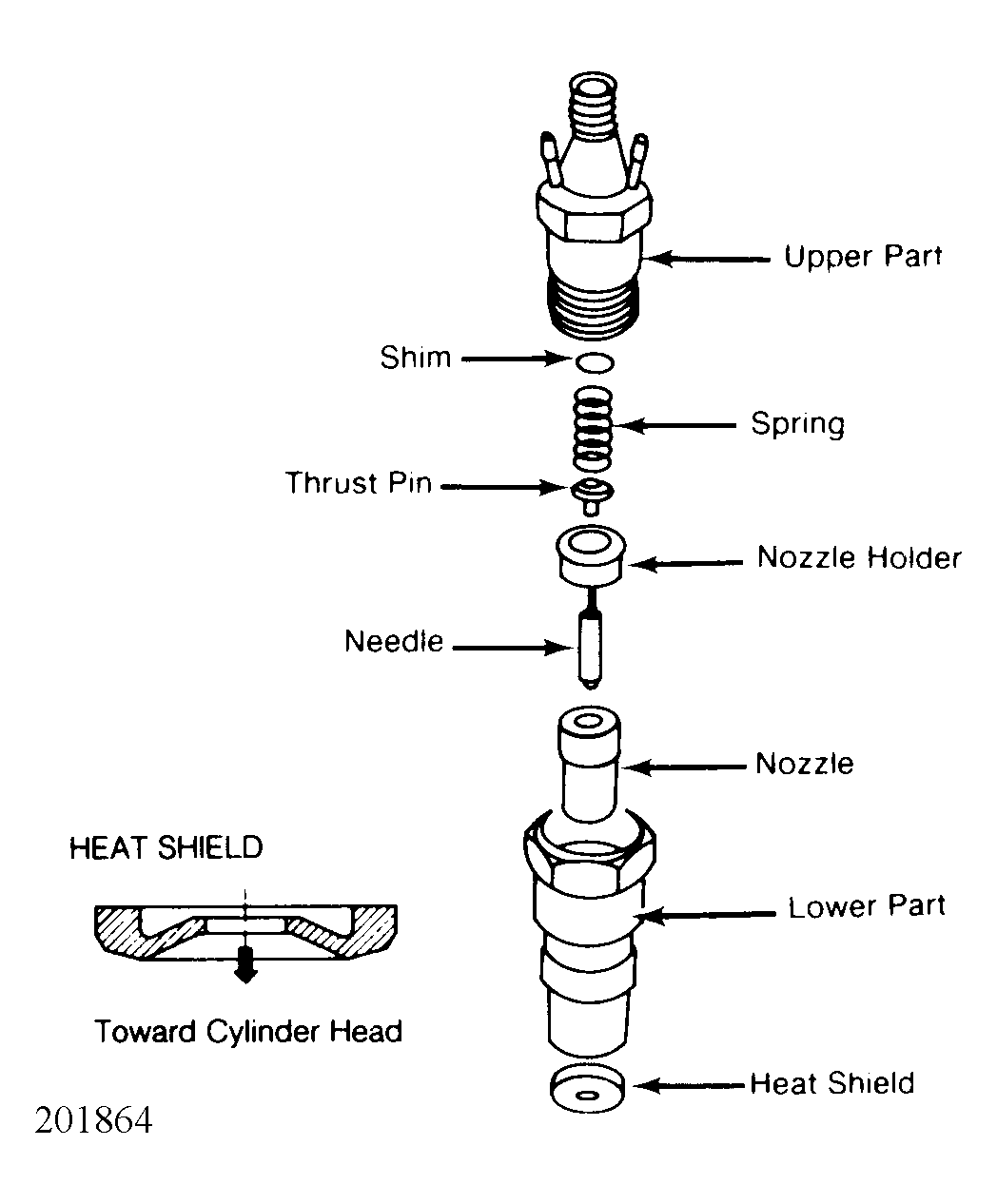

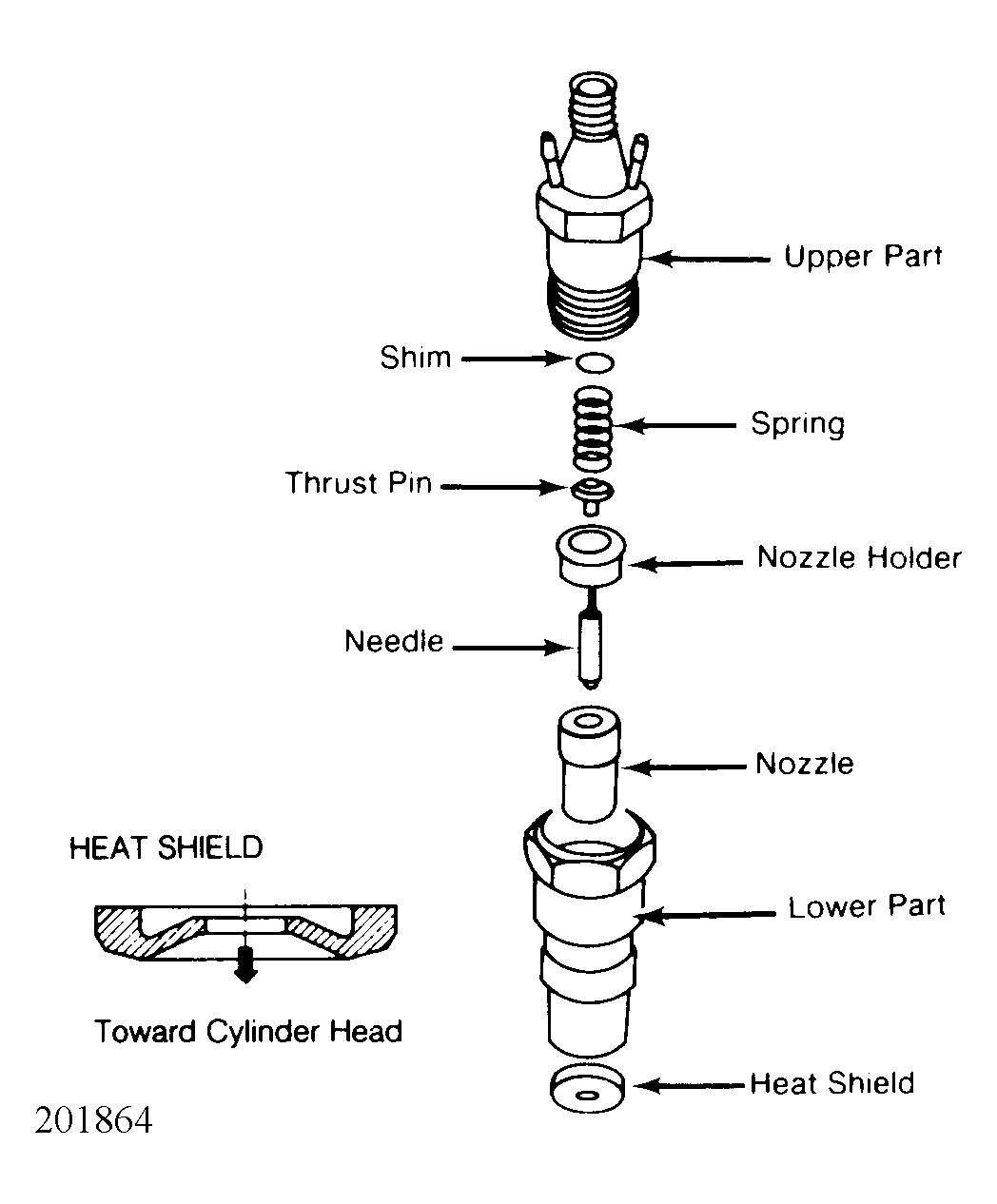

When installing injector nozzles, a new heat shield must be used. Insert heat shield with recess pointing upward. See Fig 1 . Tighten nozzles to specifications. Bleeding is not necessary.
When installing injector nozzles, a new heat shield must be used. Insert heat shield with recess pointing upward. See Fig 1 . Tighten nozzles to specifications. Bleeding is not necessary.
