Noise Test

Listen to nozzle while it is being tested on special testing gauge (US 1111). Use long, slow strokes of testing pump lever (1-2 strokes per second). If nozzle is working properly, it will "ping" as fuel emerges.

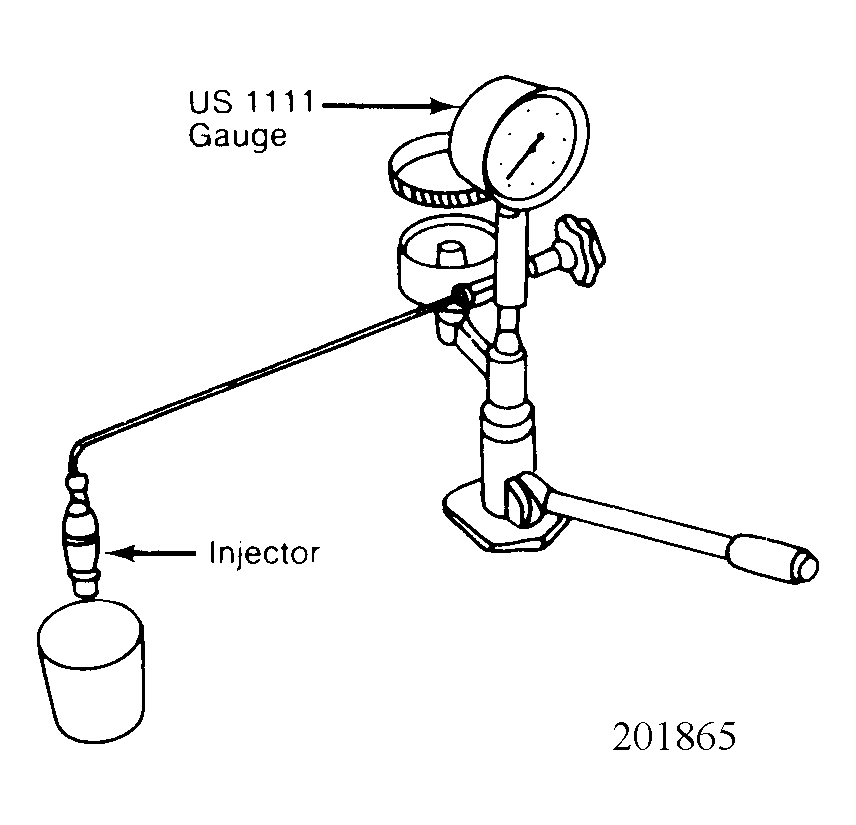

Fig 1: Injection Nozzle Mounted on Tester
G201865
