Wheel Alignment Specifications & Procedures: Adjustment: Camber: 5000

Work under hood and loosen the upper strut mounting nuts. Place a socket over suspension strut nut. Move strut around in slots until camber is correct. Tighten nuts to 14 ft. lbs. (19 N.m).

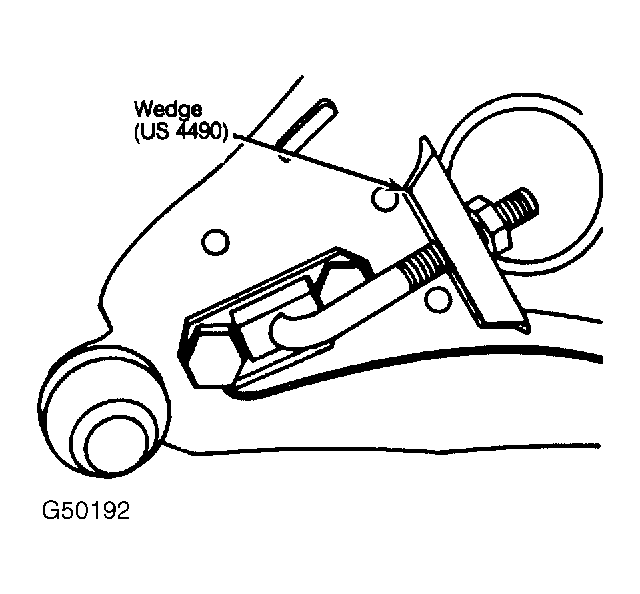

Fig 1: Camber Adjusting Tool for Audi 4000
G50192
