Control Units

CONTROL UNITS LOCATION

Component Location

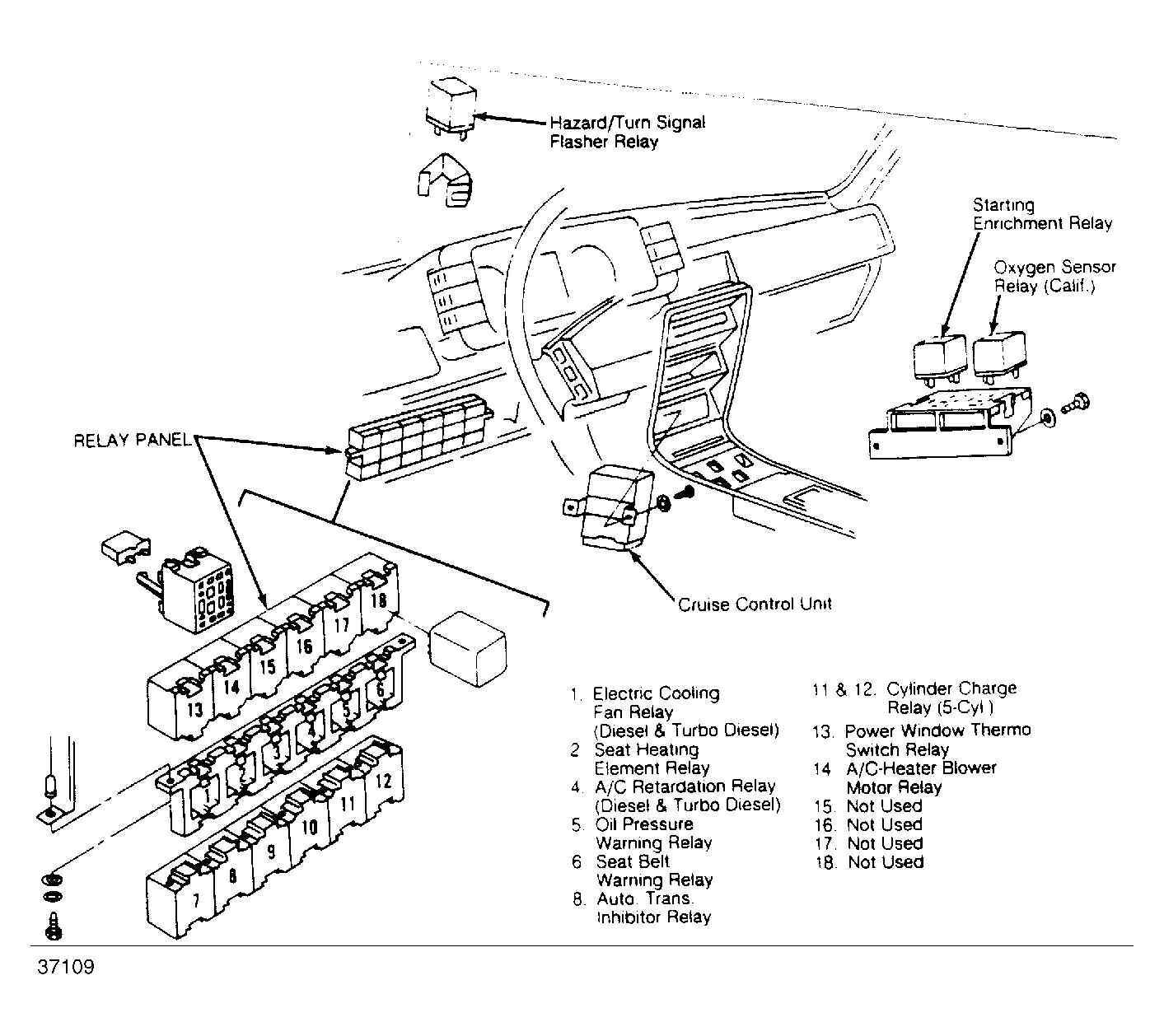

Cruise Control Unit Under lower console on transmission tunnel. See Figure .
Dynamic Oil Pressure Control Unit On back of instrument cluster.
Idle Stabilizer Control Unit (Calif.) Left rear side of engine compartment.
Ignition control Unit Left rear side of engine compartment.
Oxygen Sensor Control Unit Under dash, right side of glove compartment.

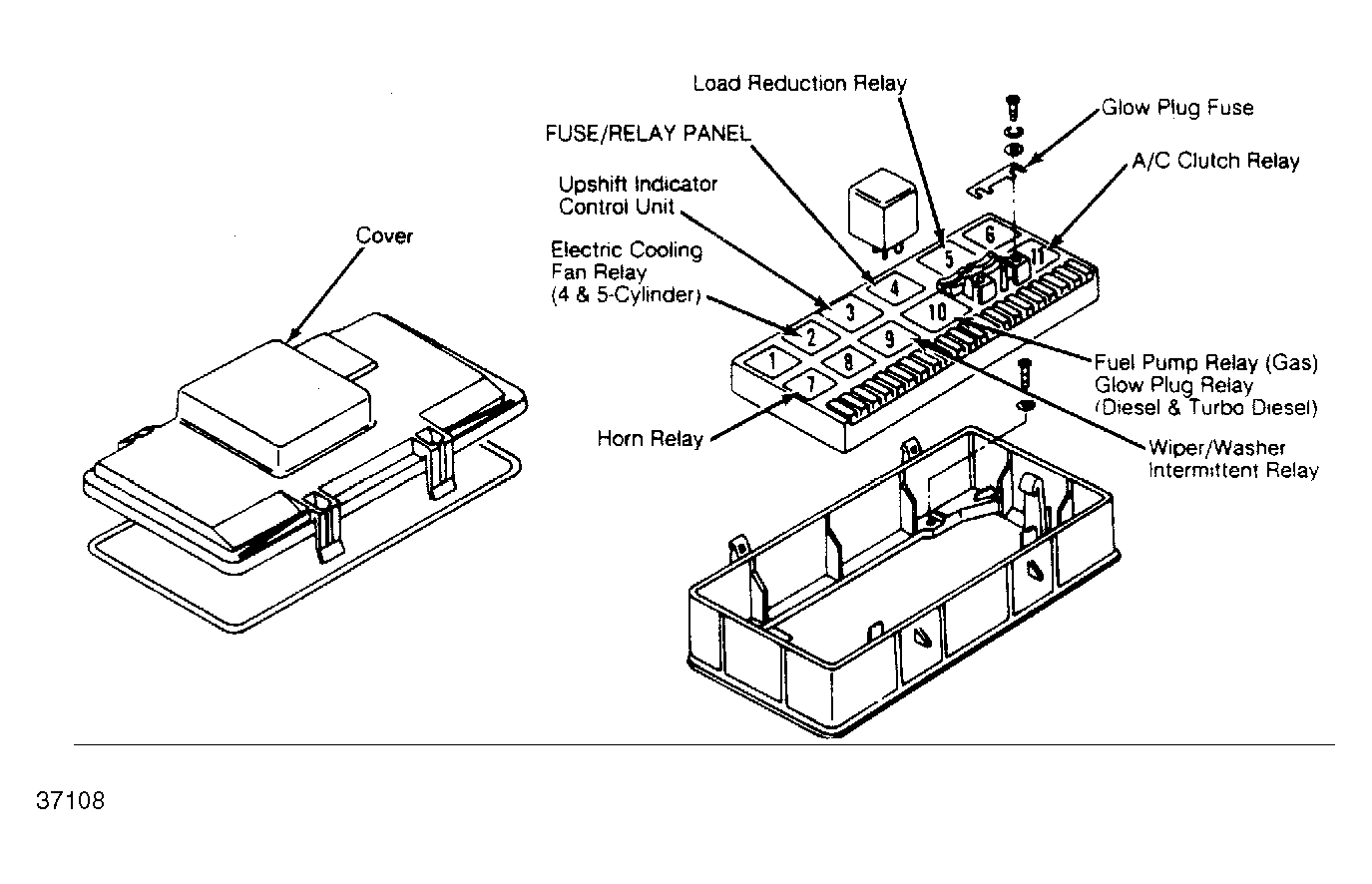

Upshift Indicator Control Unit Position 3 on fuse/relay panel. See Figure .
