Tachometer Adapter

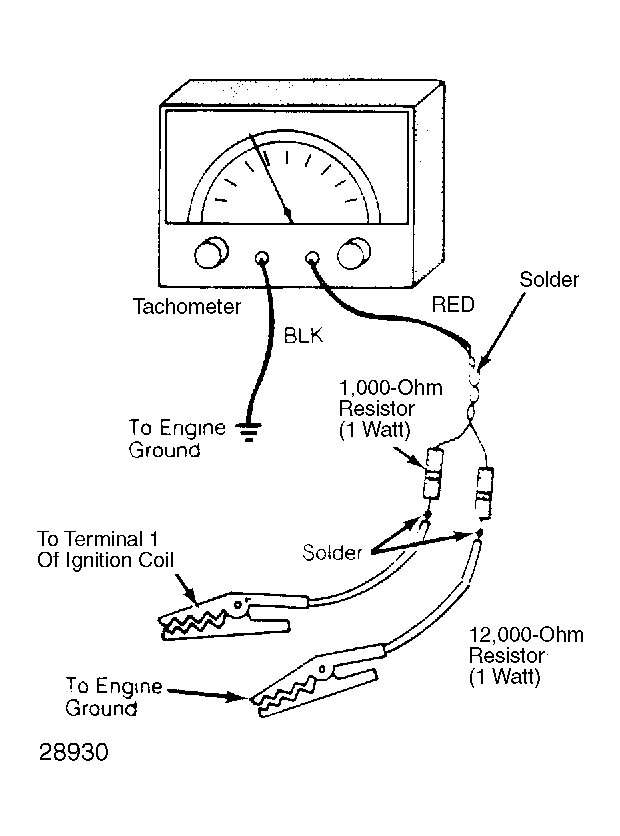

- An adapter is necessary when attaching a conventional tachometer into the Hall Effect electronic ignition system. See Fig 1. Tachometer Black lead is attached to engine ground. Attach adapter to tachometer Red lead.
- Adapter is formed from 2 wires soldered together at one end. One wire (leading to coil terminal 1) must be equipped with a 1000-ohm, 1-watt resistor.
- The second wire (leading to engine ground) must be equipped with a 12,000-ohm, 1-watt resistor. Both resistors should be soldered to attaching wires.
