Miscellaneous Components

MISCELLANEOUS COMPONENTS LOCATION

Component Location

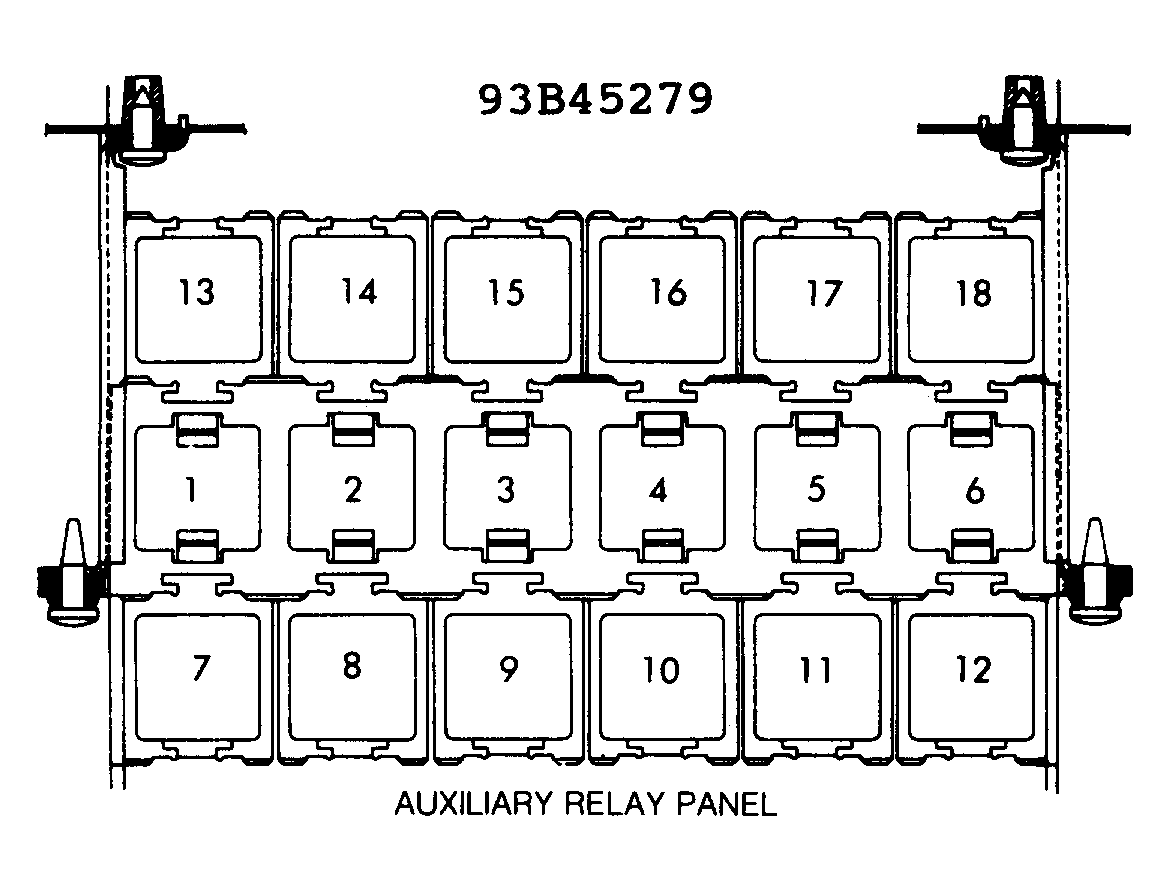

Auxiliary Relay Panel No. 1 Under left side of instrument panel. See Figure & Figure .
Auxiliary Relay Panel No. 2 Under instrument panel, behind stereo. See Figure & Figure .
Blower Motor Resistors In left half of heater housing.
Diagnostic Trigger (Turbo) On fuel pump relay. See Figure.

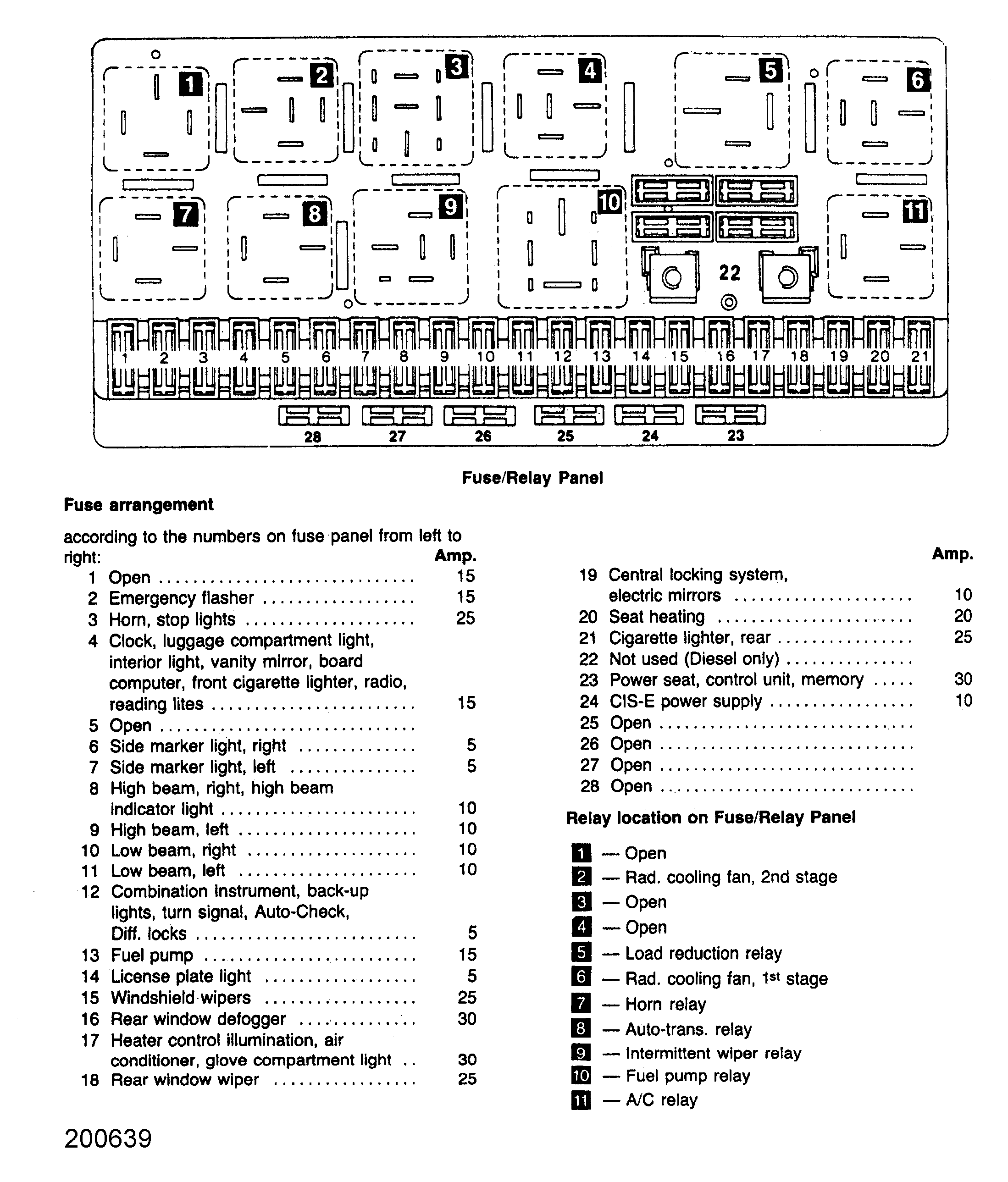

Fuse/Relay Panel Left side of plenum tray, in engine compartment. See Figure.
Instrument Panel Light Booster Above the glove compartment.
Oxygen Sensor Mileage Counter Under left side of instrument panel against firewall.
Power Seat/Window Circuit Breaker On auxiliary relay panel No. 1. See Figure.
Power Stage Module (Turbo) To left of ignition coil.
Radiator Cooling Fan Behind left headlight.
