Sensor Plate Rest Position

Upper edge of sensor plate must be below lower edge of sensor cone by distance of .07-.08" (1.8-2.1 mm). See Fig 1 . If rest position is incorrect, raise sensor plate. Open or close wire clip to change position of sensor plate. DO NOT bend leaf spring.

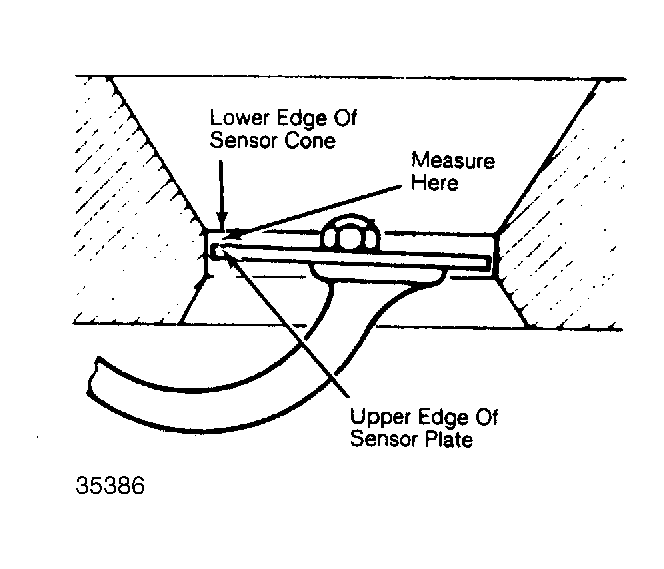

Fig 1: Sensor Plate Rest Position Distance from cone edge to plate is .07-.08" (1.8-2.1 mm).
