Wiring Diagrams

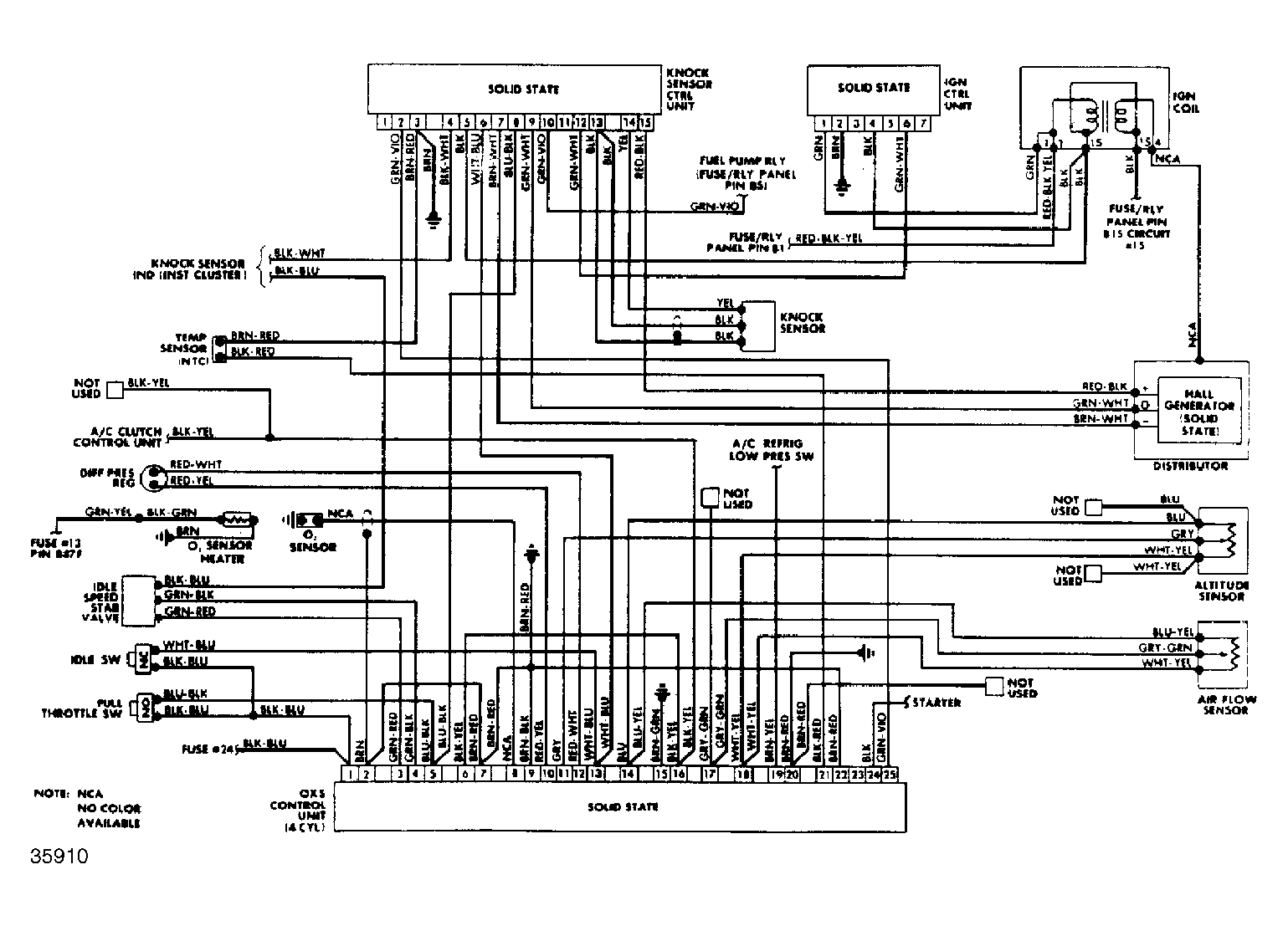

Fig 1: CIS-E Wiring Diagram (4000S & 4000S Quattro - 4 & 5-Cylinder)
G35910

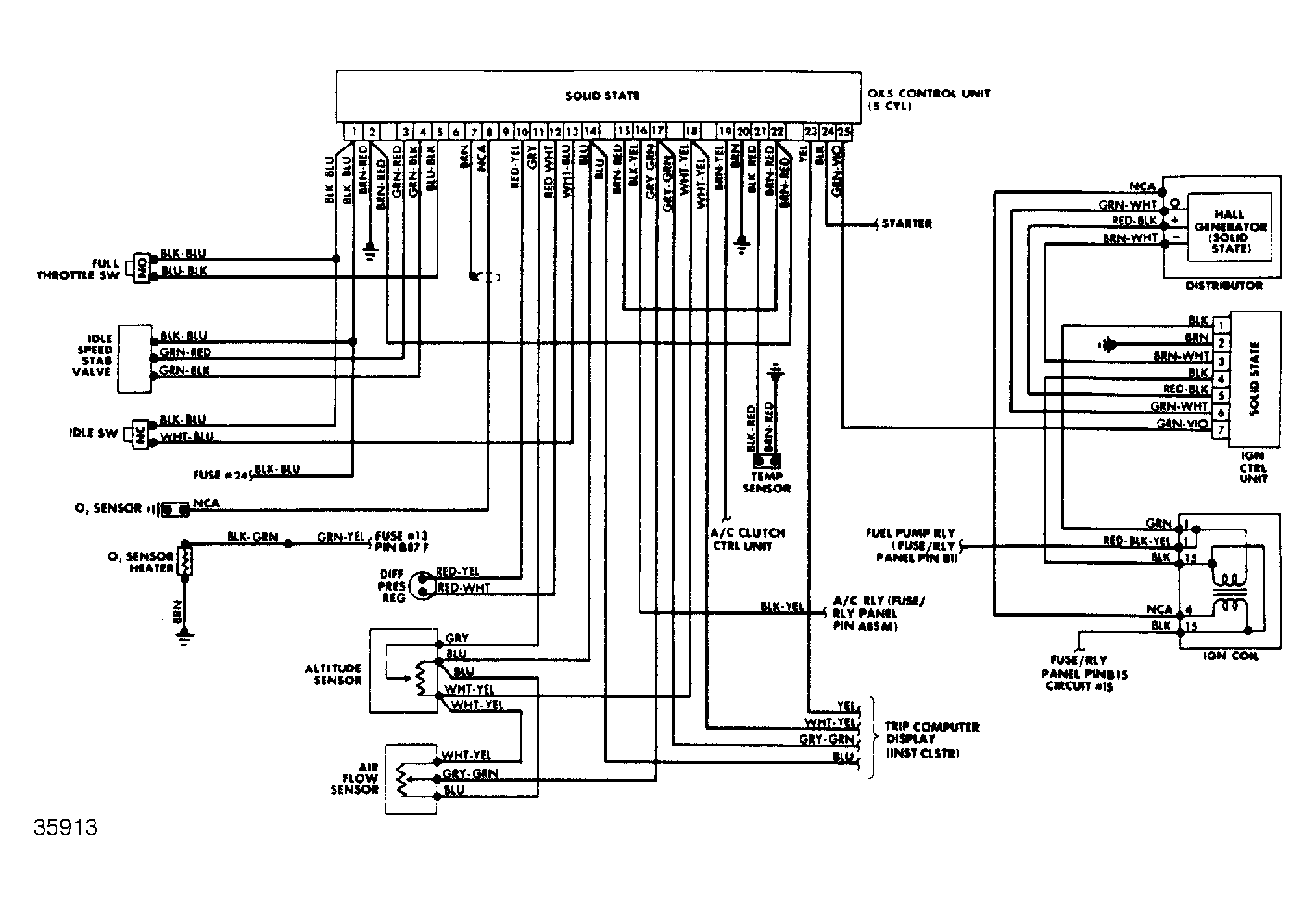

Fig 2: CIS-E Wiring Diagram (5000S)
G35913

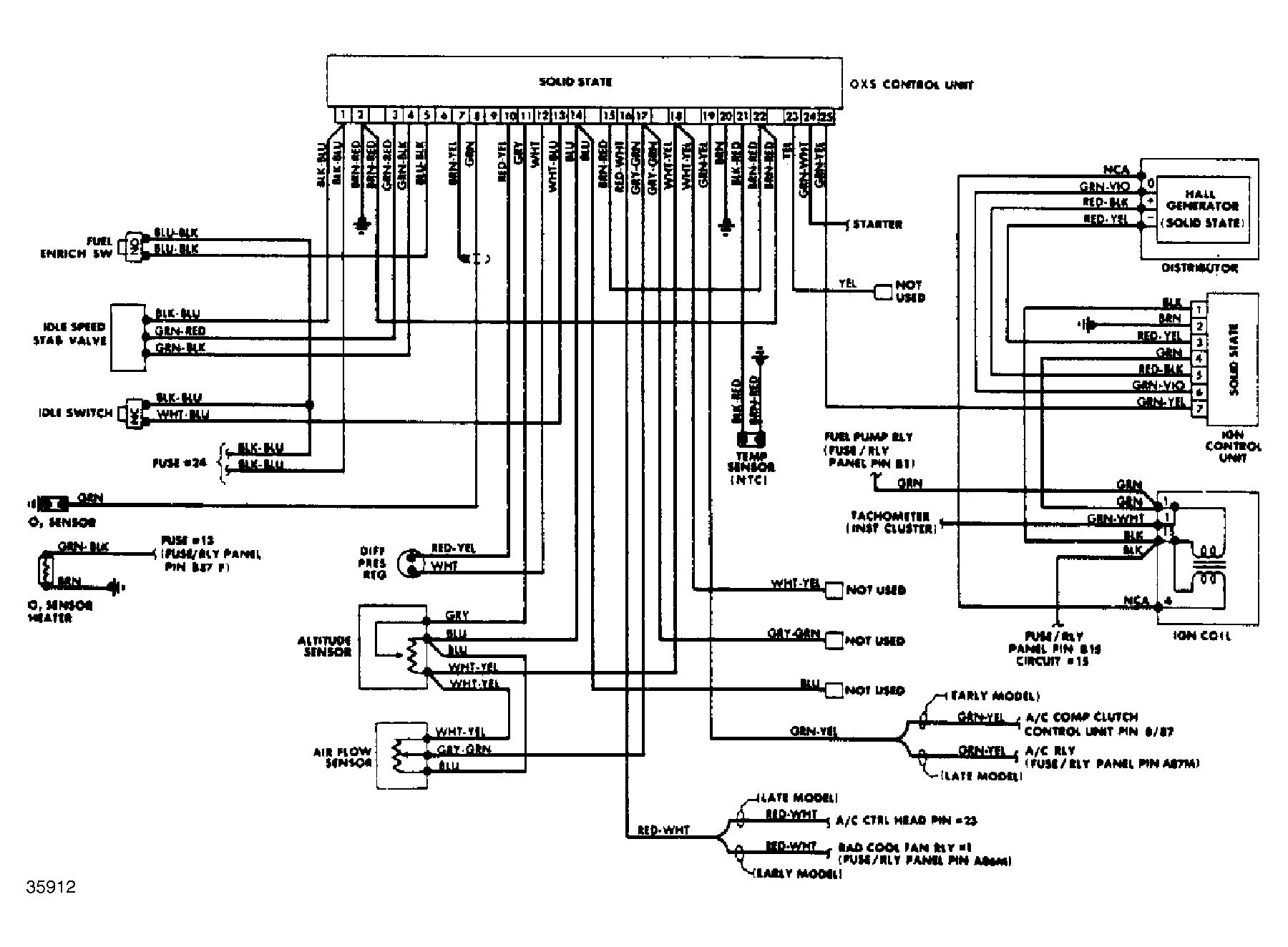

Fig 3: CIS-E Wiring Diagram (5000CS - Turbo & Quattro)
G35912
