Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

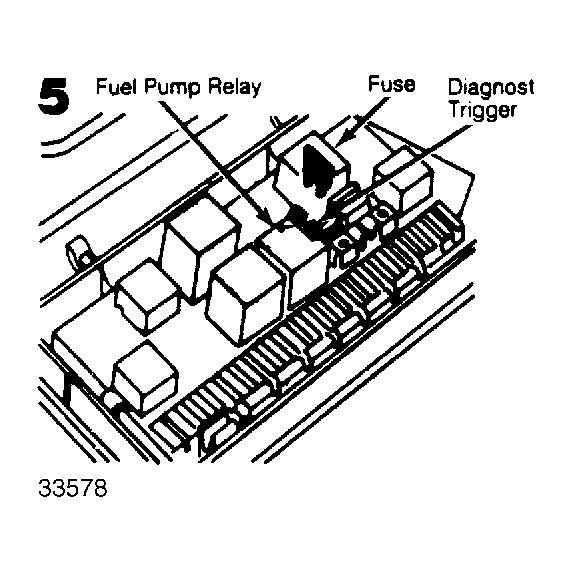

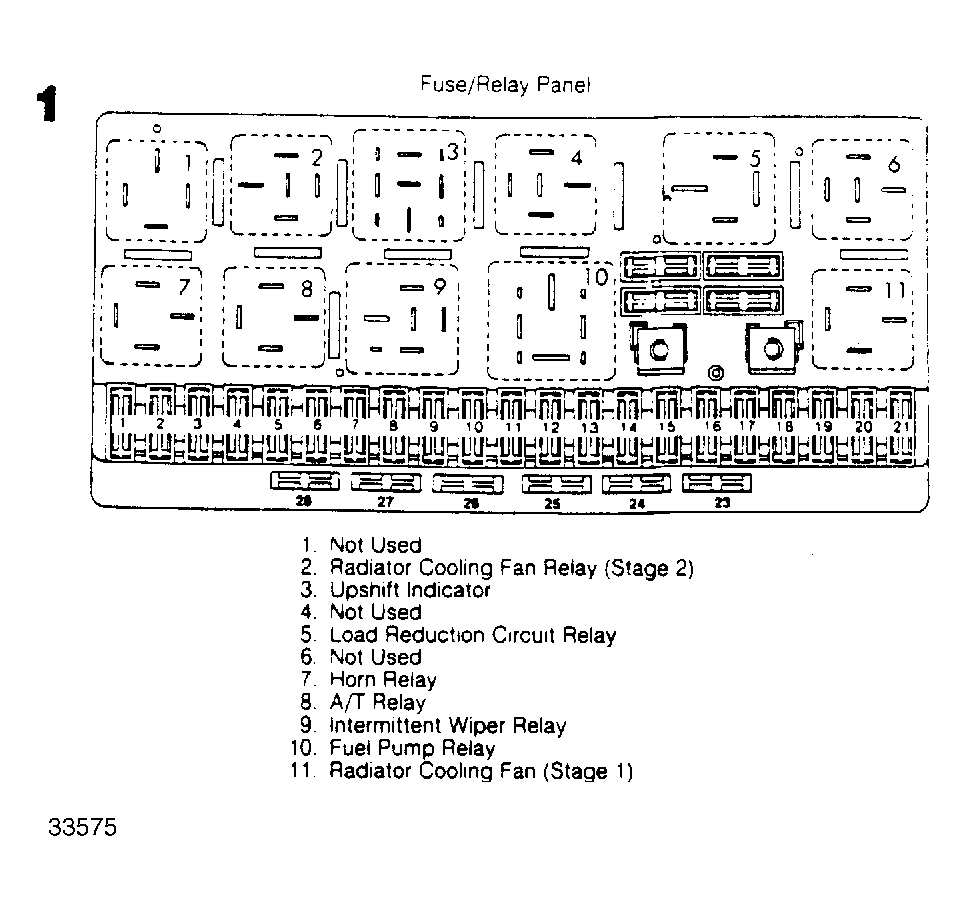

Fuse/Relay Panel On left side of engine compartment. See Figure & Figure .

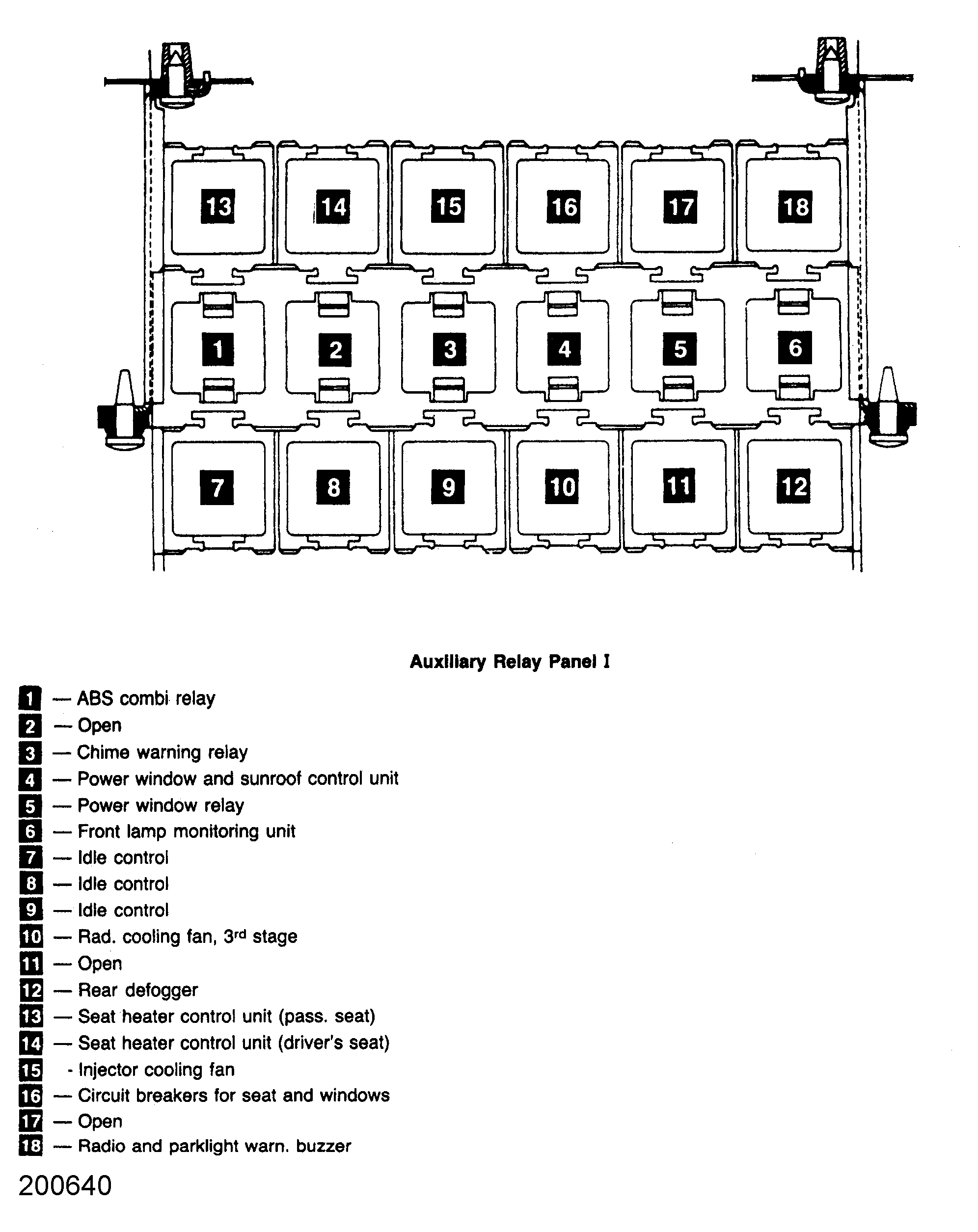

Power Seat/Window Circuit Breaker On auxiliary relay panel No. 1. See Figure .
