Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit | Under left rear passenger's seat. |
| A/C Blower Control Unit | On right side of A/C evaporator housing. |
| A/C Control Unit | In center of dash. |

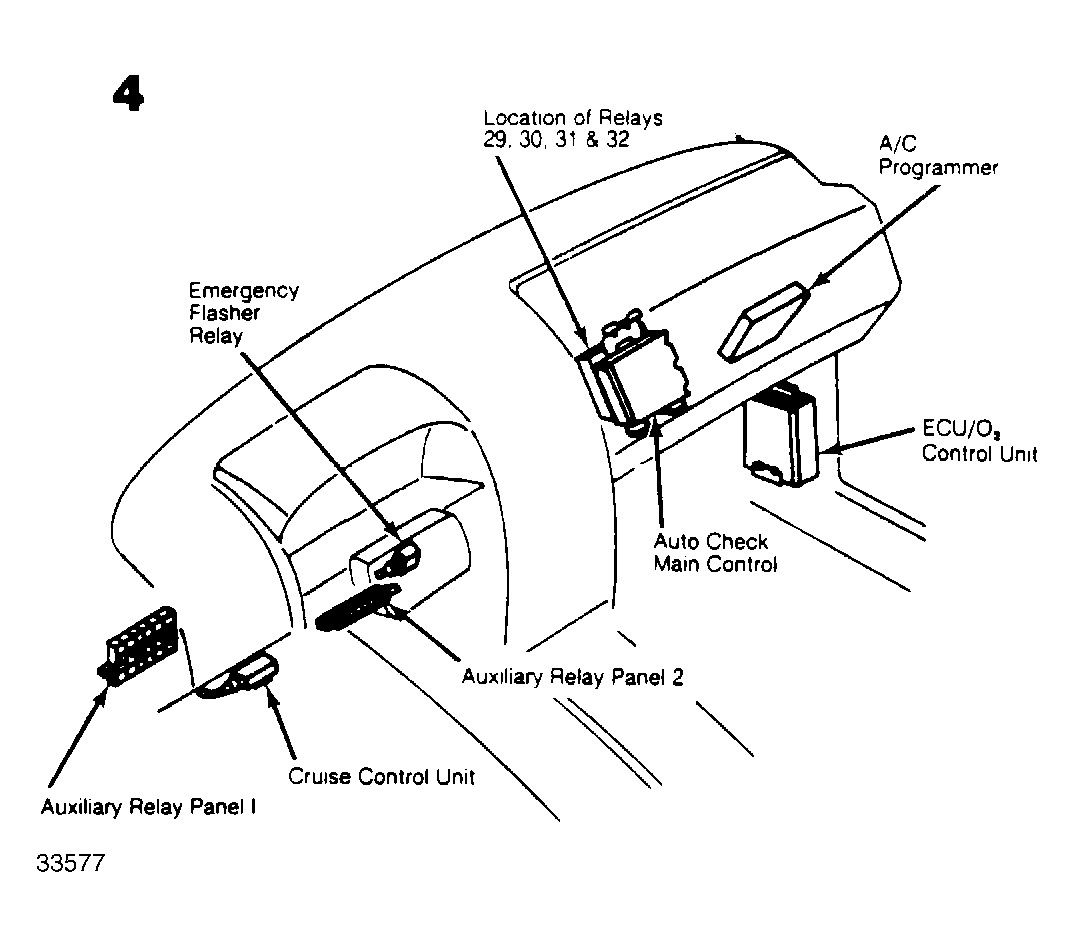

| A/C Programmer Control Unit | Behind glove box. See Figure . |
| Auto-Check/Main Control Unit | Under right side of center console. See Figure . |
| Automatic Seat Control Unit | Under driver's seat. |
| Cruise Control Unit | Under left side of dash. See Figure . |
| Electronic Control Unit (ECU) | Behind right kick panel. See Figure . |
| Front Head Light Control Unit | Under left side of dash. |
| Ignition Control Unit | On left kick panel. |
| On-Board Computer Control Module | Built into instrument cluster. |
| Taillight Control Unit | On left side of trunk, near antenna. |
