Full Throttle Switch

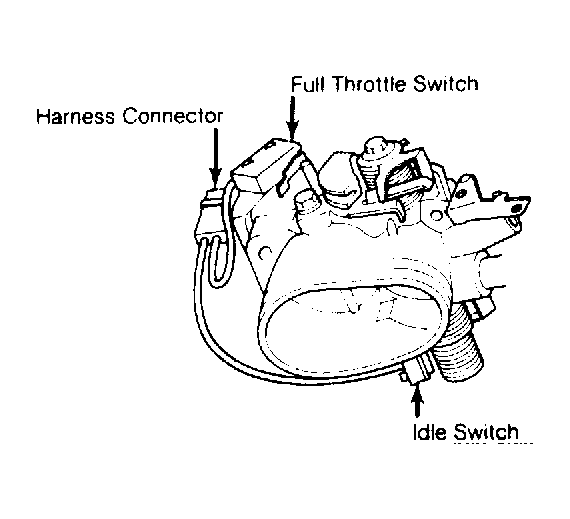

The switch should close approximately 10 degrees before full throttle. The closed circuit signal is used for full throttle enrichment and activation of ignition timing circuit for full load engine operation. Adjustment is made by positioning on mounting bolts. See Figure .
