Trouble Codes
- Drive vehicle for a minimum of 5 minutes to allow fault information to be stored. If it is a no-start condition, operate starter for at least 6 seconds.CAUTION: DO NOT turn ignition off. This will erase the fault memory.

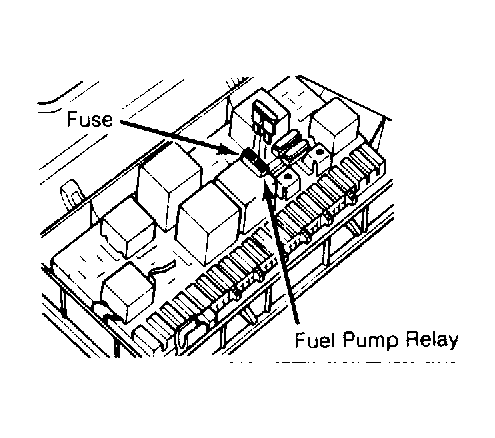

- Insert fuse into fuel pump relay for at least 4 seconds. See Fig 1 . Indicator light on instrument cluster should display a 4-digit fault code from the ICU.
- If indicator light displays a Code 4444, no faults have been recorded. Record all fault codes by repeating step 2) until a Code 0000 is displayed. This indicates that all fault codes from the ICU have been displayed.
- Repeat step 2) after the Code 0000 is displayed. This time, however, the faults that are displayed will be from the FICU. Engine speed may increase. Record all codes.
- Repeat step 2) until all FICU fault codes have been displayed. When all fault codes from the FICU have been displayed, a Code 0000 will display.
- For a list of all ICU and FICU fault codes, refer to SELF-DIAGNOSTIC FAULT CODES chart.
SELF-DIAGNOSTIC FAULT CODES
| Code | Location Of Fault | Problem |
|---|---|---|
| 1111 | Ignition control unit or fuel injection control unit | Defective memory circuits in control unit |
| 2121 | Idle switch | Switch stuck closed or problem in wiring to switch |
| 2122 | Engine speed signal or Hall sender | No engine speed signal from Terminal #17 of ignition control unit to Terminal #30 of fuel injection control unit |
| 2123 | Full throttle switch | Switch stuck closed or problem in wiring to switch |
| 2141 | Knock regulation | Engine or ignition knock is causing timing to be retarded the maximum amount |
| 2142 | Knock sensor | Defective sensor or sensor wiring |
| 2223 | Altitude sensor | No signal from sensor |
| 2232 | Air sensor potentiometer | No signal from potentiometer to fuel injection control unit or break in wire between fuel injection control unit Terminal #21 and ignition control unit Terminal #8 |
| 2233 | Reference (supply) voltage for air sensor potentiometer and altitude sensor | No reference voltage from Terminal #21 of ignition control unit to Terminal #26 of fuel injection control unit |
| 2312 | Coolant temperature sensor | No signal from sensor |
| 2341 | Oxygen sensor control | Oxygen sensor control operating at rich or lean limit |
| 2342 | Oxygen sensor | No signal from sensor |
| 4431 | Idle stabilizer valve problem | Problem in wiring to idle stabilizer valve |
| 4444 | No faults stored in memory | N/A |
| 0000 | End of Diagnosis | N/A |
